54
6 Product Specic Instructions – Power Wheelchairs
– B500/B600 –
For assembly of the 491S00=SK022 xation kit you will need the following tools: ring wrenches sizes 13 and
17, Allen wrenches sizes 4 and 5

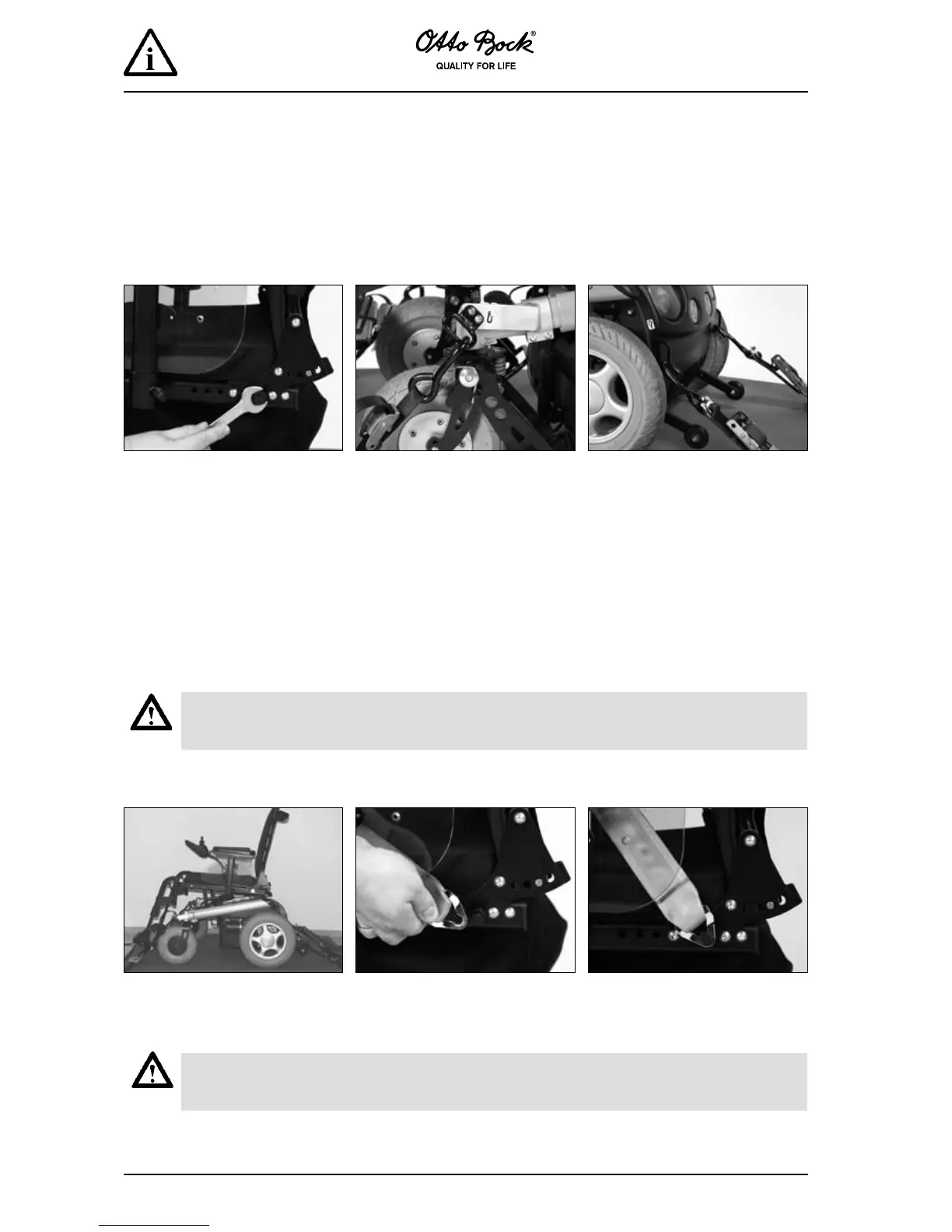

Guidance for tting the Pelvic Belt
Assembly tip: Use only the screws provided, to attach the anchor plates to the special brackets. Then these
special brackets should only be tted at the points indicated on the frame. Do not fully tighten the screws until
the brackets and anchoring plates have been positioned correctly.
Screw the included "Anchor Pins"
into the left and right backrest side
frame anchor plates.
Assemble the anchor plates to the
specially designed frame brackets
using the screws provided, so the
nuts are on the inside and the hook
symbol is facing outwards. Then at-
tach these brackets around the left
and right frame tubes just behind
the castors.
No extra brackets are required for
the rear of the wheelchair as the
rear frame/ chassis has two inte-
gral anchoring brackets protruding
rearwards on either side of the bat-
tery compartment.
Pass one end of the pelvic belt through the space between the armrest
skirt guard and seat cushion. Now clip the pelvic belt buckle onto the
"Anchor Pin" previously screwed to the backrest side frame anchoring
plate. Then repeat on the opposite side for the other half of the pelvic belt.
Attaching the anchoring points to the product
B500/B600 showing the correct
positioning of the tie-down straps.
This power wheelchair is equipped with back angle adjustment. Before starting your wheelchair
adjust the backrest to almost upright position and check if the locking mechanism on either side
has engaged. Observe the specications in the Instructions for Use Manual of the power wheelchair.
Unfortunately, the xation kits cannot be used with all equipment and accessories combinations. For
existing restrictions in the combination of equipment and accessories please refer to the 647F231
Info Sheet.
