7 Product-Specic Instructions – Manual Wheelchairs
– Motus –
Securing with belt loops
You require four belt loops for installation .
Routing the lap belt
Installation tip: Depending on the length of the belt loops you are using, you may pass them around the frame
tubes once or two times.
Attach one belt loop around the frame
tube on the left and right of the front
frame, respectively. Attach the hooks
of the safety belt system to the belt
loops. Before tightening the safety
belt system, verify the correct position
of the belt loops.
Pass one belt loop around the left and right of the rear frame, respectively,
below the drive wheel adapter. Attach the hooks of the safety belt system
to the belt loops. Before tightening the safety belt system, verify the correct
position of the belt loops.
Pass the two ends of the lap belt towards the back from
the sides of the seat and attach each end of the lap belt
to a pin of the safety belt system.
Attaching the anchoring points to the product

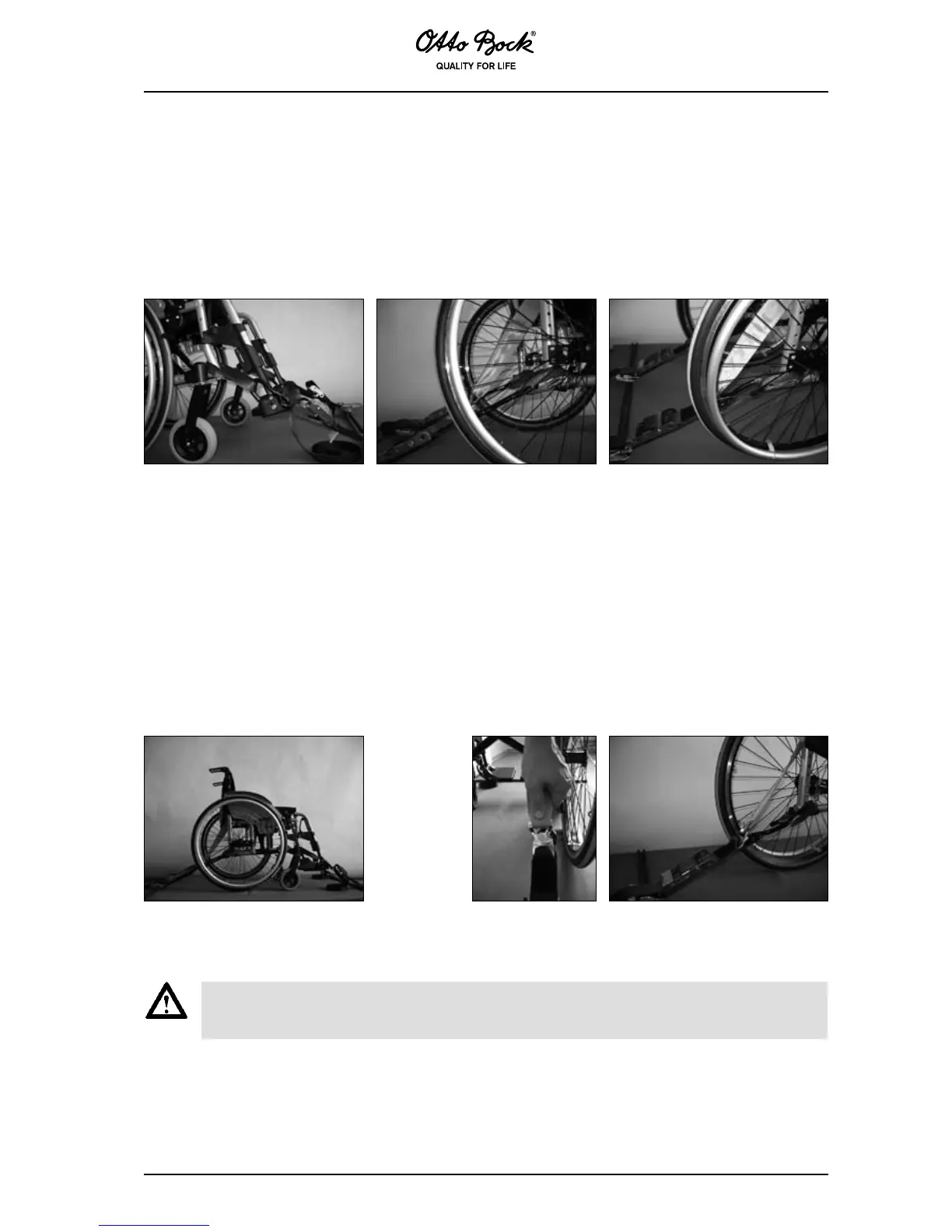

Motus showing the correct positioning
of the tie-down straps.
This wheelchair may be equipped with a xed angle-adjustable back rest. In order to assure the
safe transportation of the wheelchair user in a vehicle, the back rest must be installed in a close to
upright position . Observe the specications in the wheelchair instructions for use.
