Otto Bock Juvo - Adjusting the Side Panels

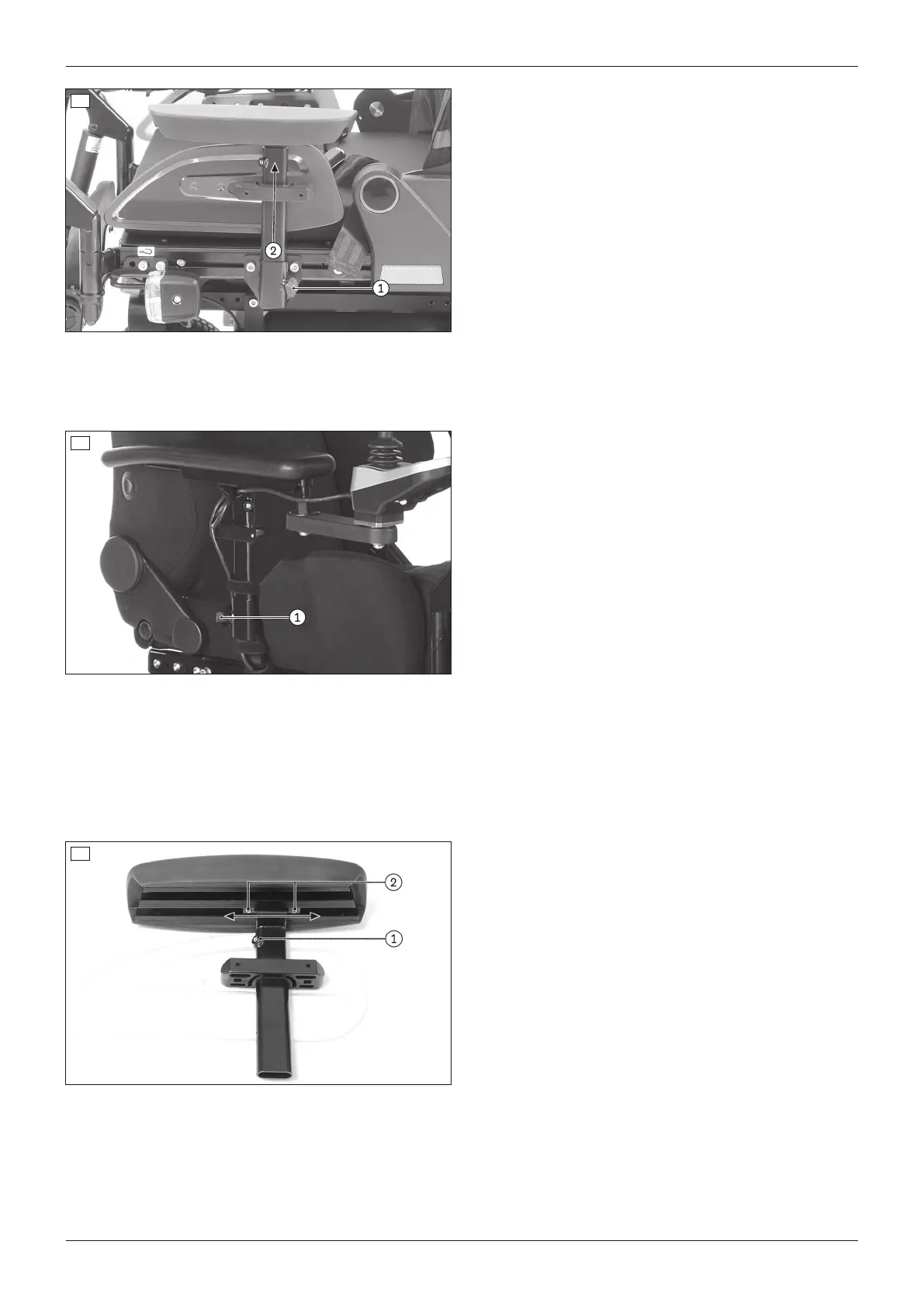

8
Removing the side panel
1) Loosen the thumb screw on the side panel holder
(see fig.8, item1).
2) Pull the side panel out from the side panel holder
and set it aside (see fig.8, item2).
3) Only for side panel with control panel:
→ Turn the control unit off (see Page25).
→ Carefully let the side panel with the control pan
el hang down while getting in.
→ For transporting the power wheelchair, place
the side panel on the seat.
Installing the side panel
1) Insert the side panel into the side panel holder.
2) Re-tighten the thumb screw on the side panel hold
er (see fig.8, item1).
To make getting in from the side easier or for transportation, the side panels can be removed if needed.
9
Removing the side panel
1) Loosen the thumb screw on the side panel holder
(see fig.9, item1).
2) Pull the side panel out from the side panel holder
and set it aside.
3) Only for side panel with control panel:
→ Turn the control unit off (see Page25).
→ Carefully let the side panel with the control pan
el hang down while getting in.
→ For transporting the power wheelchair, place
the side panel on the seat.
Installing the side panel
1) Insert the side panel into the side panel holder.
2) Re-tighten the thumb screw on the side panel hold
er (see fig.9, item1).
6.2.2 Adjusting the side panels
The height of the armrests, the forearm length and the clothing protector can be subsequently adapted.
The height of the armrests, the forearm length and the depth position of the side panel can be subsequently adap
ted.
10
Adjusting the armrest height
1) Loosen the Allen head screw on the side panel
mounting (see fig.10, item1).
2) Slide the armrests up or down to the desired posi
tion.
3) Re-tighten the Allen head screw.
Adjusting the armrest to the forearm length
1) Loosen the 2 Allen head screws on the underside of
the armrest (see fig.10, item2).
2) Push the armrest to the front or back into the
desired position.
3) Tighten the 2 Allen head screws.
20
Use
Juvo
