Otto Bock Juvo - R-Net Control Unit; TEN° Control Panel

• Section "Drive-away lock" (see Page48)
• Section "Power seat functions" (see Page61)
• Section "Troubleshooting" (see Page104)
6.6.2 R-Net control unit
CAUTION
Risk of uncontrolled driving behaviour
Falling, tipping, collision with persons or nearby objects due to interference from electromagnetic fields
► Switch all mobile devices off while driving.
► Turn the control unit off when it is not needed.
The power wheelchair is controlled by an R-Net control device in combination with the TEN° control panel.
Because the control unit is programmable, it can be adapted to the personal requirements of the user; e.g.the
speed, acceleration and deceleration values can all be adapted.
A separate LCD monitor is also installed (see Page71).
6.6.2.1 TEN° control panel
The power wheelchair is operated using the control panel.
The control panel consists of a button section, LCD screen and joystick. The charging receptacle and two inputs
for external buttons are located on the underside.
The control panel is used to switch the power wheelchair on and off, enter driving commands and display the cur
rent status of certain functions and components.

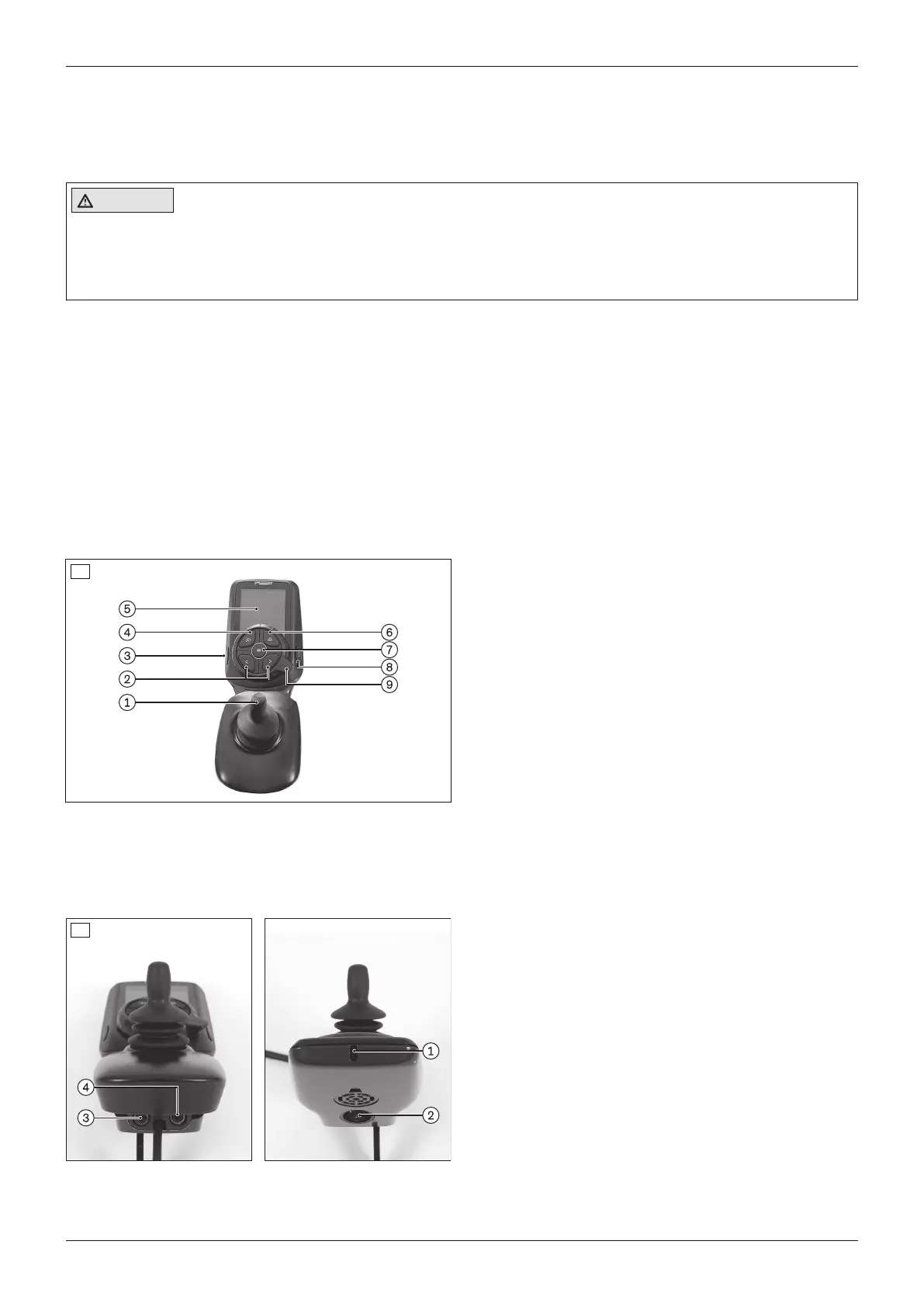

Front side – TEN° control panel
1 Joystick
2 [Direction indicator left – on/off] button
[Direction indicator right – on/off] button
3 [On/off] button
4 [Lights on/off] button
5 LCD screen
6 [Warning flashers on/off] button
7 [Profile/mode] button
8 [Horn] button
9 Rotary multi-selector
right: [Increase speed];
left: [Decrease speed]
23
Back side – TEN° control panel
1 Transmitter for infrared signals
2 Charging receptacle
3 Connection for external [Profile] or [Pro
file/mode] button (programmable)
4 Connection for external [on/off] button
24
29Juvo
Use
