Otto Bock Juvo - Lighting; Lighting for Road Traffic

76

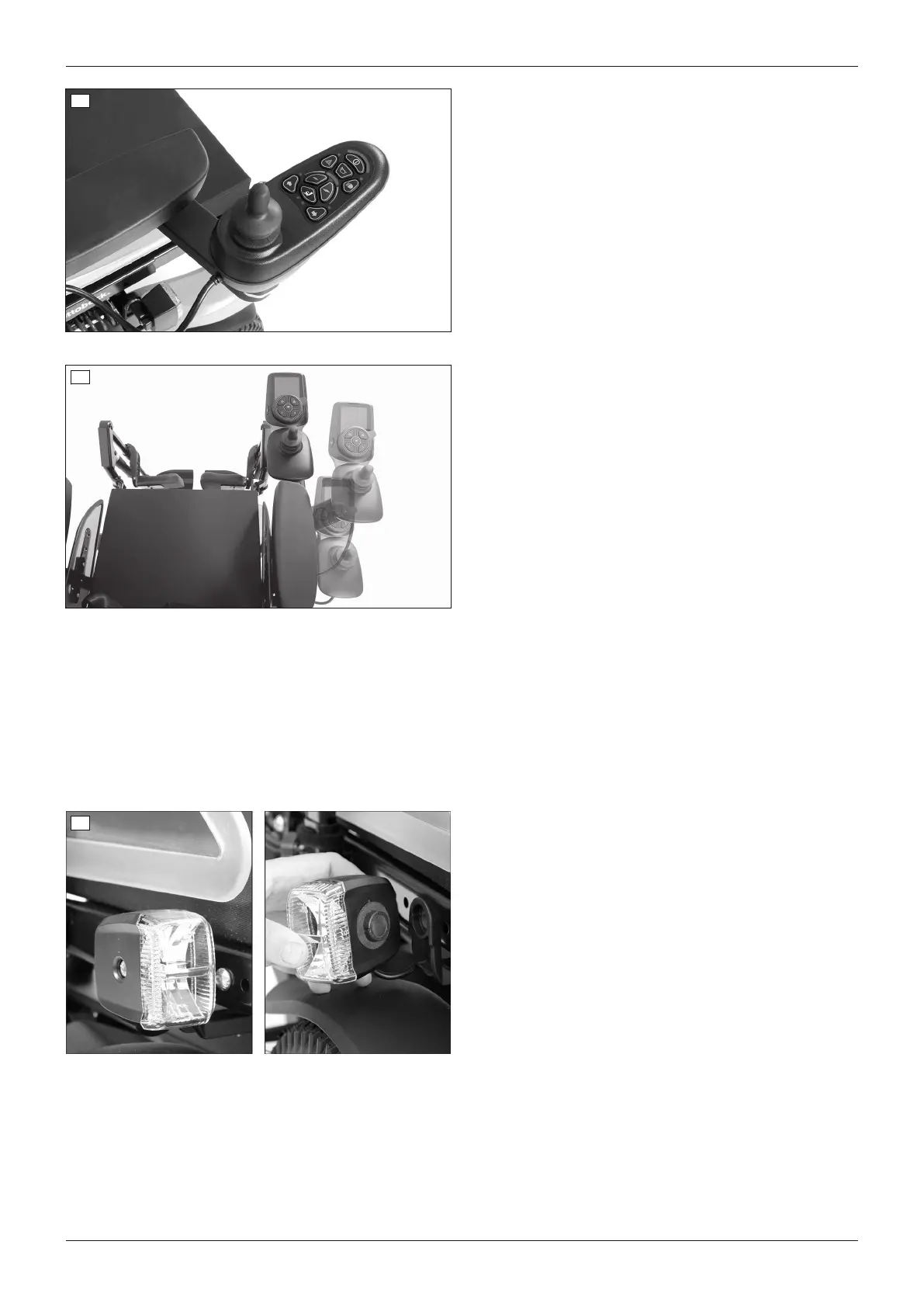

Swinging away the control panel holder
1) Apply slight pressure to push the control panel
holder to the side.
→ The pivot element is unlocked.
2) Swing the control panel holder away to the side.
INFORMATION: The pivot element locks in
place again when the holder is rotated back to
the original position.
77
Swinging away the control panel holder
1) Apply slight pressure to push the control panel
holder to the side.
→ The pivot element is unlocked.
2) Swing the control panel holder away to the side.
INFORMATION: The pivot element locks in
place again when the holder is rotated back to
the original position.
6.16.2 Lighting
Information on replacing broken lamps: see Page104.
6.16.2.1 Lighting for road traffic
The installed lighting permits driving in road traffic during hours of darkness, and is only approved for use on
motorised wheelchairs.
The light, the right and left direction indicators and the warning flashers are operated via the control panel.
Front lighting
78
The front lighting consists of 2front lights with integ
rated direction indicators (see fig.78, left).
To prevent damage while manoeuvring in confined
spaces, the front lighting is attached to the wheelchair
magnetically.
If the front lighting has been disconnected from the
holder, it can simply be reinserted in the prior position
(see fig.78, right).
When connecting the lights, make sure there are no for
eign objects on the magnets.
The lighting angle is secured by latches.
87Juvo
Use
