Removing the tray when necessary
1) Pull the pin and swing the tray away to the side (see
fig.86).

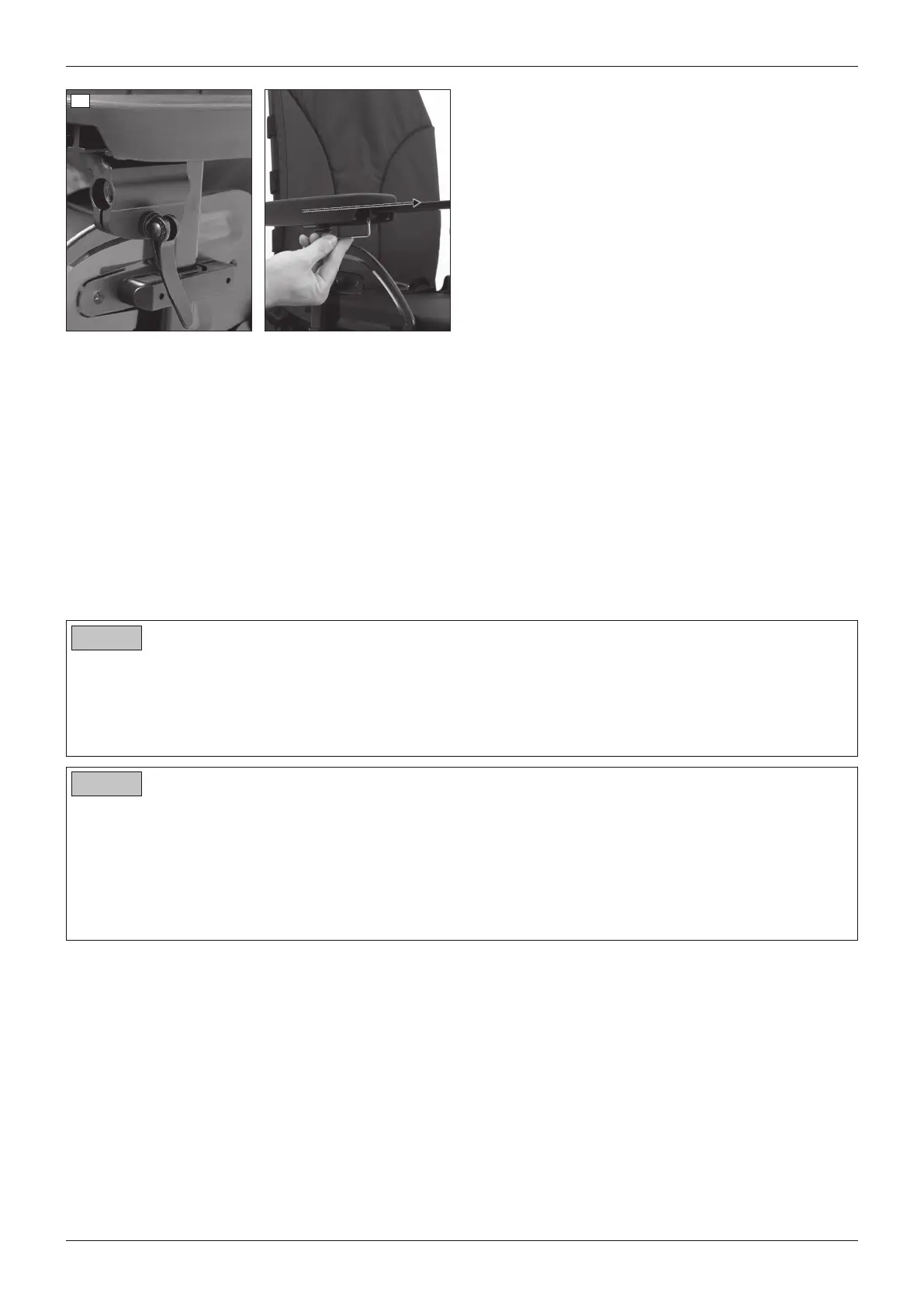

2) Open the clamping lever on the swivel mechanism
and pull the tray out to the front (see fig.87). The
clamping mechanism remains under the arm sup
port (see fig.88, left).
3) Remove the clamping profile on the side of the con
trol panel (see fig.88, right). To do so, loosen and
remove the 2set screws and 1slide block on the
bottom of the arm support.
4) Pull out the clamping profile towards the front.
6.16.8.3 Cleaning
1) Clean the product with warm water and a mild detergent.
2) Rinse with clear water and let the product dry.
Important notice regarding cleaning
• Do not use any aggressive cleaners, solvents or hard brushes etc.
6.16.8.4 Maintenance
In order to ensure the safety of the product, it must be maintained for the entire duration of use.
• Check the screw connections for firm fit on a regular basis.
• Replace all worn or damaged components immediately.
• Pay particular attention to cracking in the tray top.
6.16.9 Luggage carrier
NOTICE
Overloading the luggage carrier
Damage to product due to breakage
► The maximum load for the luggage carrier is 15 kg (33 lbs).
► Please note that the maximum load of the overall product must not be exceeded, also after loading the lug
gage carrier (see Page111).
NOTICE
Improper use of the seat tilt/back angle adjustment
Damage to the luggage carrier due to collision with the seat back
► Note that the seat back may collide with the luggage carrier when the seat tilt or back angle adjustment is fully
tilted. In this case, remove the luggage carrier before using the seat adjustment.
► Note that the seat back may collide with items on the luggage carrier even with only a slight tilt. Take the items
off the luggage carrier in this case. If this is not possible, then the seat or seat back must not be adjusted too
far back.
The luggage carrier can be used to mount add-on medical devices or to store luggage. The luggage carrier can be
removed if required.
