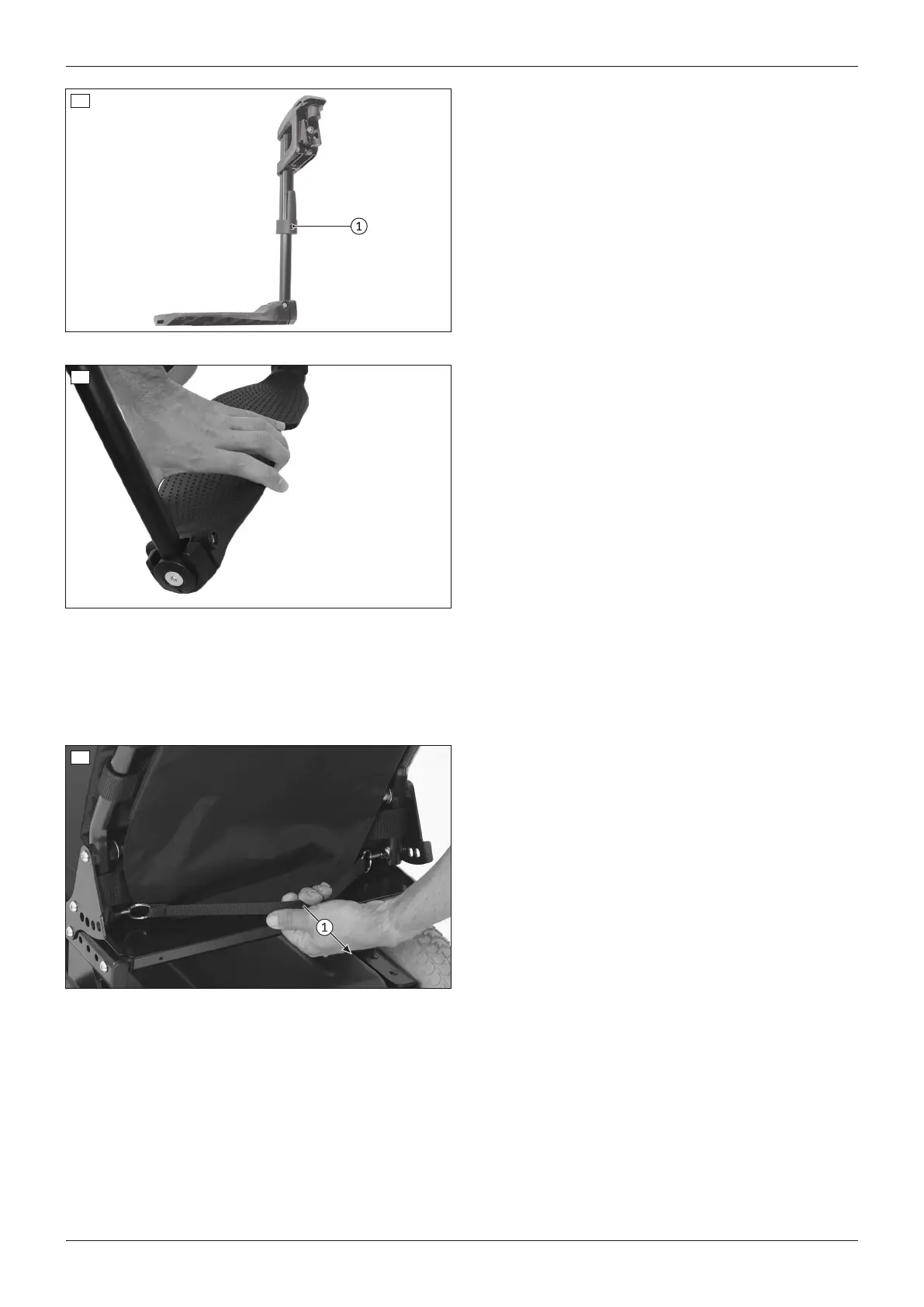

Adjusting the lower leg length
1) If present: Remove the calf strap (not illustrated).
2) Loosen the set screw on the inside of the footplate
bar (see fig.15, item1).
3) Adjust the footplate bar to match the user's lower
leg length.
INFORMATION: Ensure that the footplate bar is
inserted into the swivel segment up to at least
the marking (= 50mm).
4) Retighten the set screw on the footplate bar.
INFORMATION: Always adjust both legrests.
5) Hook the calf strap in again.
16
Adjusting the footplate angle
1) Loosen the Allen head screws on the footplate.
2) Turn the footplate to the desired angle.
3) Tighten the Allen head screws.
6.4 Backrest
The backrest provides pressure redistribution and support for the upper body.
6.4.1 Folding the backrest up/down
The wheelchair may be delivered with the backrest folded down. It has to be folded up and secured prior to use.
17
Folding up the backrest
1) Pull on the strap until the locking bolts are free (see
fig.17, item1).
2) Lift the backrest and move it to the desired position.
3) Allow the locking bolts to engage.
4) Check to ensure the lock is securely engaged by
pulling on the backrest.
Folding down the backrest
1) Pull on the strap until the locking bolts are free (see
fig.17, item1).
2) Lay the backrest down on the seat.
