Otto Bock Juvo - Joystick Functions

• The electric motor adjusts the seat function as long as the joystick is deflected, and stops at the end positions.
• Exit the "Seating" mode by pressing the [Profile/mode] button again. You can now toggle through the driving
function or other modes (e.g.Bluetooth mode).
6.11.7 Joystick functions
The following power seat functions can be controlled with the joystick:
VR2 control unit
Function Joystick deflection (standard setting)
1)
Seat height adjustment Back: Seat surface moves up
Forward: Seat surface moves down
Seat tilt Back: Seat slowly tips back
Forward: Seat slowly tips forward to a horizontal position
Back angle adjustment Back: Backrest tilts backward
Forward: Backrest tilts forward
Legrests Back: Both legrests move up
Forward: Both legrests move down
1)
Direction of movement can be modified by the specialist dealer.

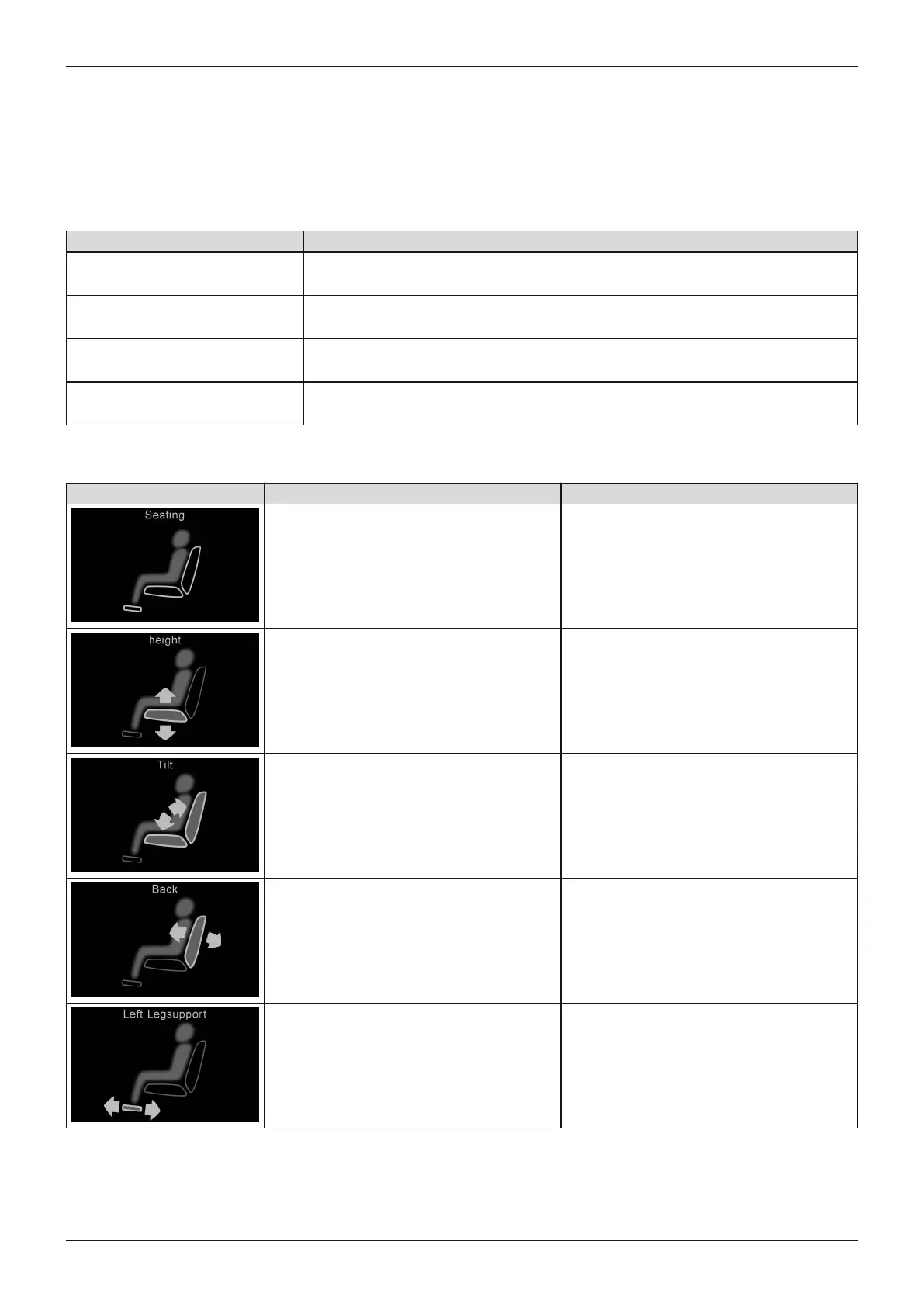

"Seating" mode – TEN° control panel
Display Function Joystick deflection (standard setting)
1)
"Seating" mode start screen
This mode enables operation of the
power seat functions delivered with the
power wheelchair.
Right: Calls up a power seat function*
Left: Calls up a power seat function*
* consecutively, depending on order
Power seat height adjustment Back: Seat surface moves up
Forward: Seat surface moves down
Power seat tilt Back: Seat slowly tips back
Forward: Seat slowly tips forward to a
horizontal position
Power back angle adjustment Back: Back support tilts backward
Forward: Back support tilts forward
Power leg support left Back: The left leg support moves up
Forward: The left leg support moves
down
67Juvo
Use
