Owon HDS-N series User Manual

OWON HDS-N Series Handheld DSO & DMM 5-Input Connections
5. Input Connections
5.1 Input Connections
5.1.1 Input connections
See the following Figure 2:

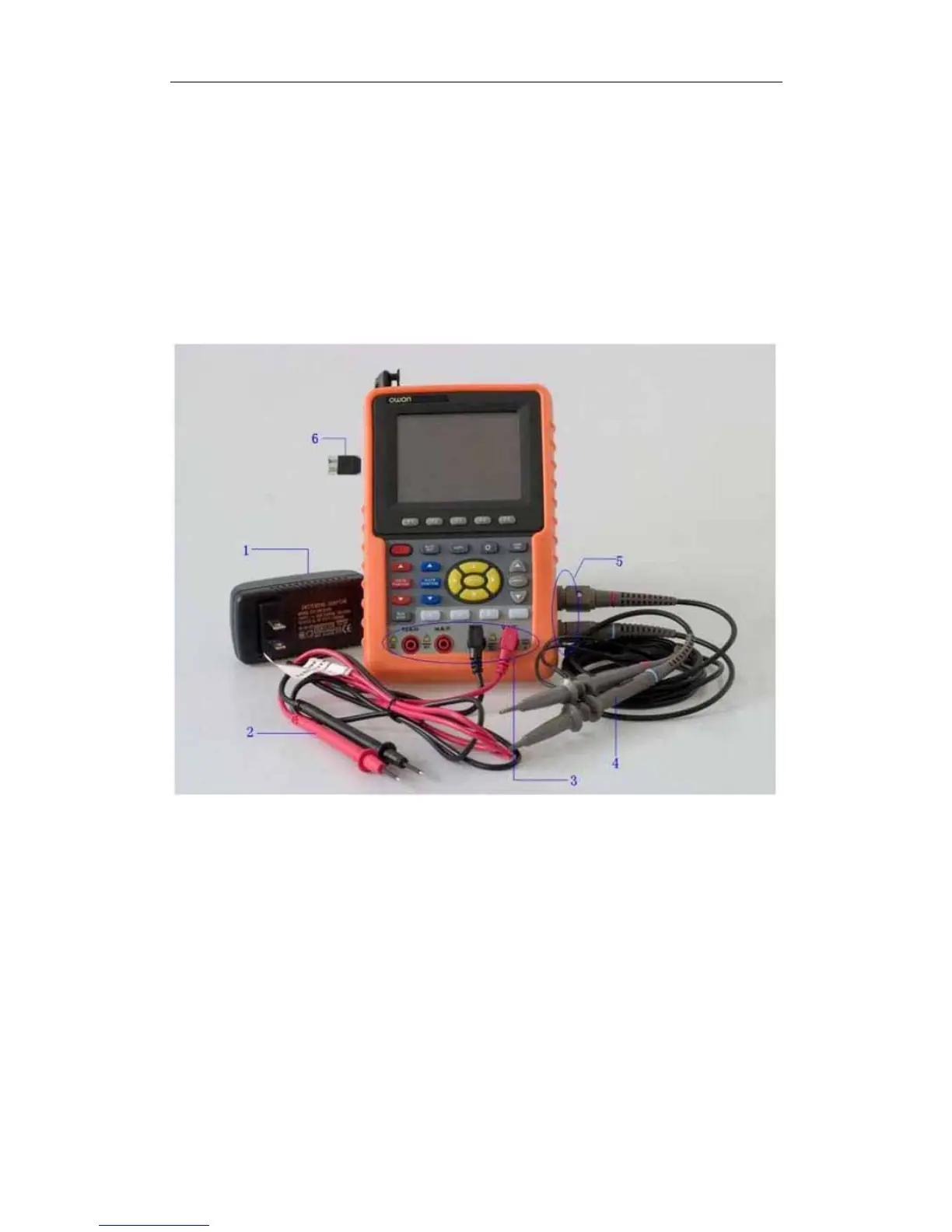

Figure 2：Input connections
Description:
1. The power adapter is supplied for AC power supply and battery recharging.
2. Multimeter test lead.
3. Multimeter input jacks, including four circular banana jacks. The first jack measuring the
current 2 A-10A, the second jack on the current Measurement, the third COM ground input,
and the fourth measuring voltage, resistance, Capacitance input.
4. Oscilloscope probes.
5. Oscilloscope channel inputs: the upper one is for Channel 1 (CH1), while the lower one is for
Channel 2 (CH2).
6.
The output terminal of 1KHz/5V square-wave test signal.
8
