8.7.4 Cymometer
It is a 6 digits cymometer. Its measurement range of frequency is 2Hz to full bandwidth.
Set up cymometer limit to "ON" status.
When the triggering mode is edge triggering, it is a one channel cymometer and it can only
measure the frequency of the triggering channel.
When the triggering mode is alternating triggering, it is a two channel cymometer and it can
measure the frequency of two channels.
To make a cymometer setting, do the following:
If you want to measure frequency of the two Channels, you can do as the follows:
1. Press MENU, the function menu will appear on the right of the screen.
2. Press MENU ▲ or MENU ▼ and choose DISP SET, five options will show at the bottom
of the screen.
3. Press F5 and choose ON.

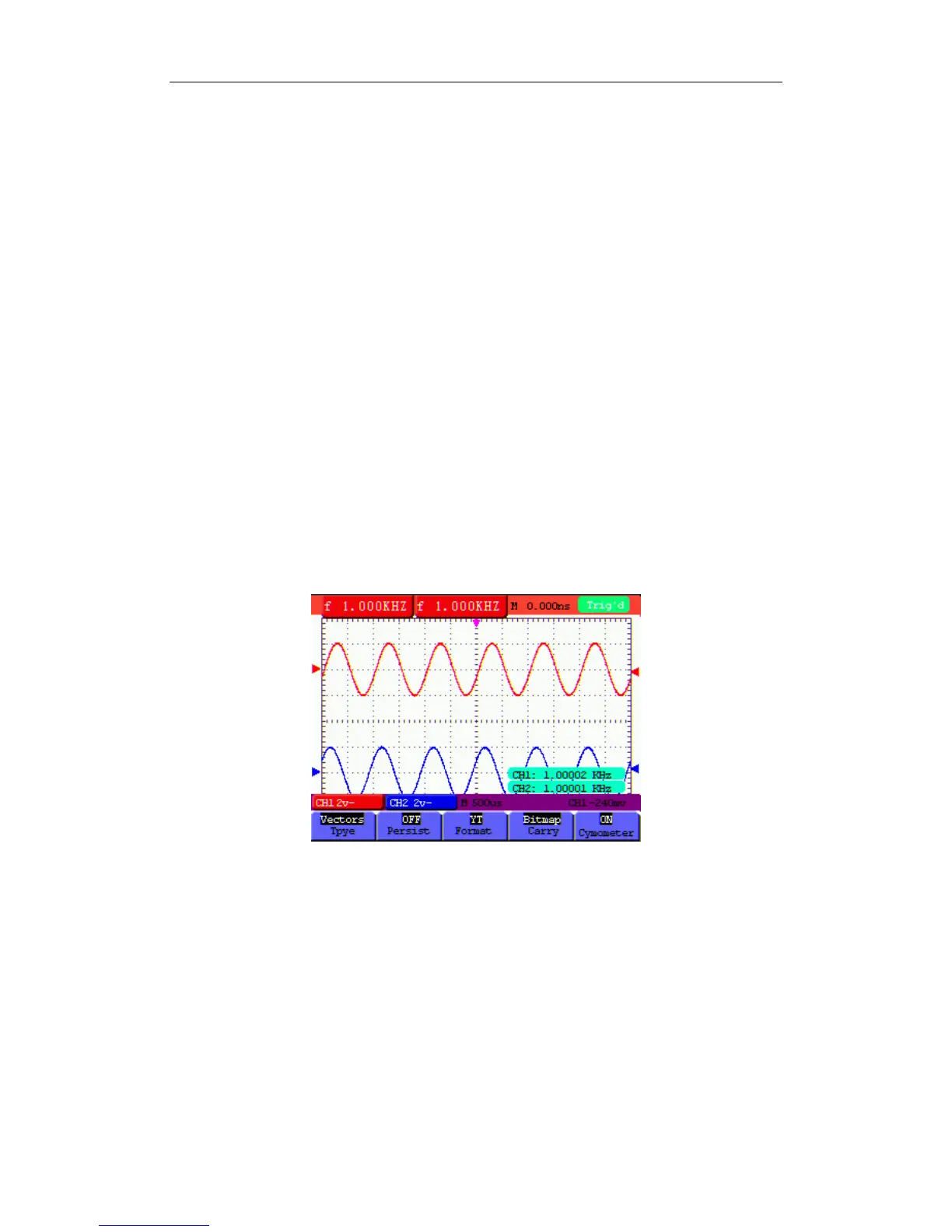

See the following figure 48:
Figure
48 Cymometer
8.8 Waveform Saving Setups
The oscilloscope can save 4 waveforms, which can be displayed on the screen with the present
waveform. The recalled waveform saved in the memory cannot be adjusted.
8.8.1 Waveform Saving Setups in normal mode
The WAVE SAVE menu is described in the following list.
