OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
8.8.2 Waveform Saving Setups in FFT mode
FFT being on, the WAVE SAVE is described in the following list.
Function menu Setups Description
CH1 OFF
CH2 OFF
FFT
Only FFT waveform you can to save appears in the display. Source
WAVE A, B, C and D Select the address for saving or recalling a waveform.
Save
Store the waveform of a selected signal source into the
selected address.
ON
OFF
Close or start displaying the waveforms stored in address A,
B, C or D.
Show
To save a waveform on CH1 in address A, do the following:
1. Press the MENU key and the function menu appears at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select the WAVE SAVE. Four options are
displayed at the bottom of the screen.
3. Press the F1 key to select FFT.
4. Press the F2 key to select the address A.
5. Press the F3 key to save the waveform on CH1 in address A
To display the saved waveform on the screen, do the following:
6. Press the F4 key to select ON for the address A. The waveform saved in address A will be
displayed on the screen in green color and the zero point of waveform, Vamp and Freq is
purple.

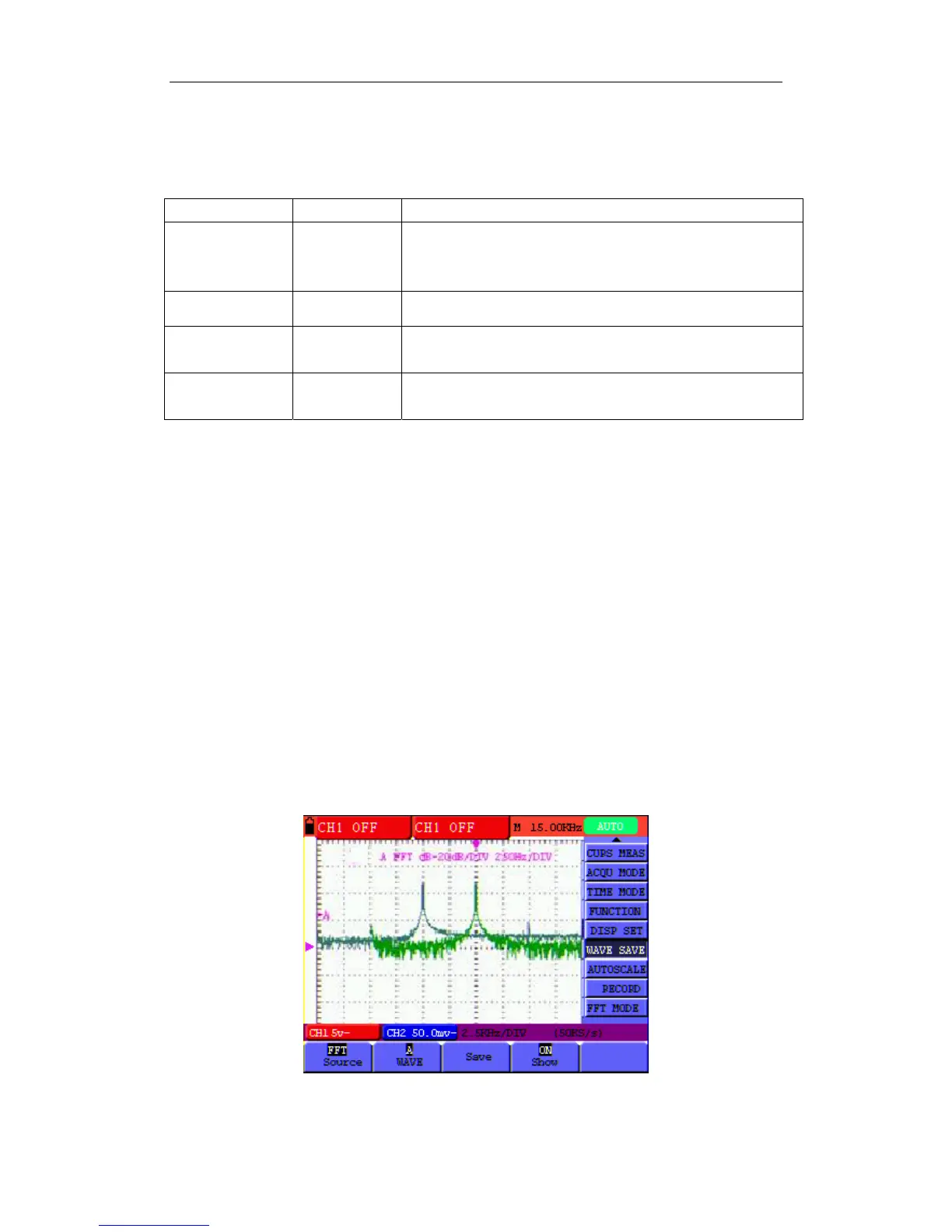

Now, you can see a screen that looks like the following figure50
Figure 50: Waveform Saving in FFT Mode
54
