OWON HDS-N Series Handheld DSO & DMM 6-Using the Oscilloscope
6. Using the Oscilloscope
6.1 About this Chapter
This chapter provides a step-by-step introduction to the scope functions. The introduction does not
cover all of the capabilities of the scope functions but gives basic examples to show how to use the
menus and perform basic operations.
6.2 Powering Up the Oscilloscope
Connect oscilloscope to AC power via AC-DC adapter as shown in Figure 1. (The oscilloscope
may still work with built-in Li-ion battery even without AC power supply).
Turn the oscilloscope on by pressing down the power on/off key .
The instrument then performs self checking after power on. A greeting window and a sentence
"Press any key to continue." will display on the screen when the system finishes self checking.
The users can press any key to enter the measuring function.
The oscilloscope is powered up in its last setup configuration.
6.3 Oscilloscope Operation Window

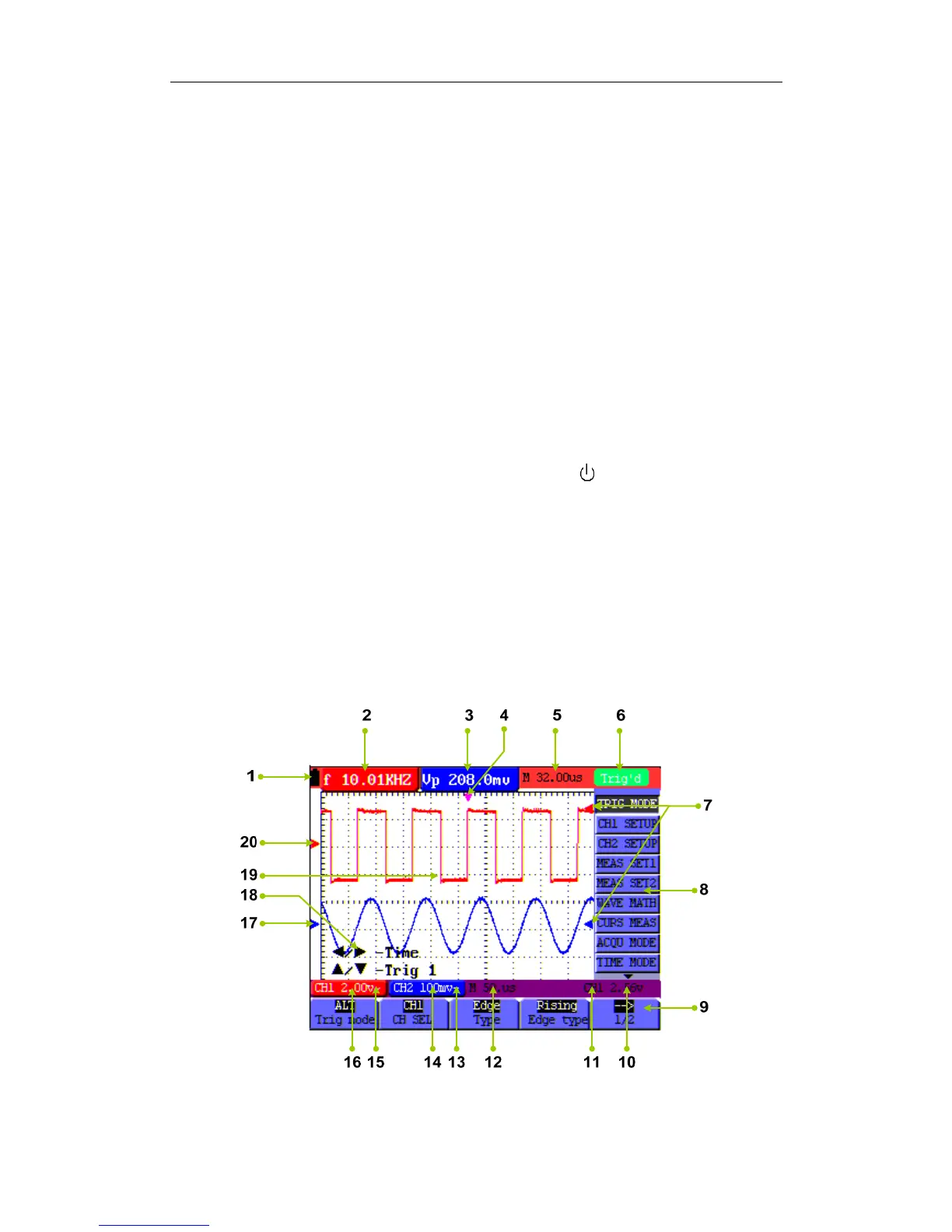

See the following figure 5:
Figure 5: Oscilloscope Operation Window
12
