Owon HDS-N series User Manual

OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
"False Wave" phenomenon will appear. So pay more attention to the relation between the
frequency being sampled and measured.
NOTE：
While FFT mode is turned on, DO NOT USE THESE SETTINGS:
1) Horizontal window setting.
2) Change source channel in CH1/CH2 Setup menu
3) Turn on XY Format
4) Trigger control "SET 50%"
5) Auto-scale function
6) Wave record;
7) Measure 1 and Measure 2.
8.15 System State Menu
The system state menu is used to display information about the present horizontal system, vertical
system, trigger system and others. The operation steps are shown as below.
1. Press the MENU key and the function menu is displayed at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select the SYS STAT. Four options appear at the
bottom of the screen.
3. Sequentially press F1 to F4 key and the corresponding state information will be shown on the
screen.

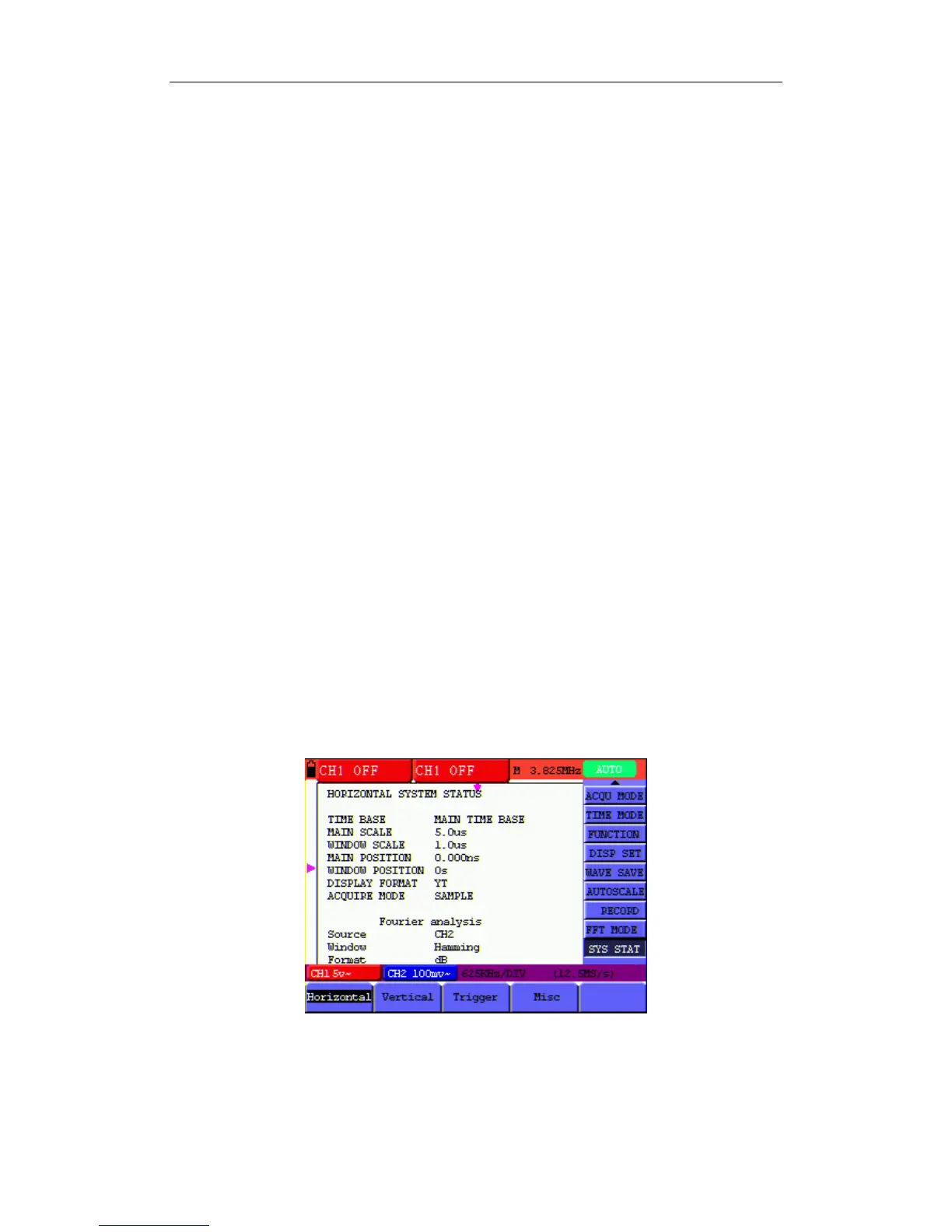

4. The screen that looks like the following figure 65 will be displayed.
Figure 65:
System State
72
