OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

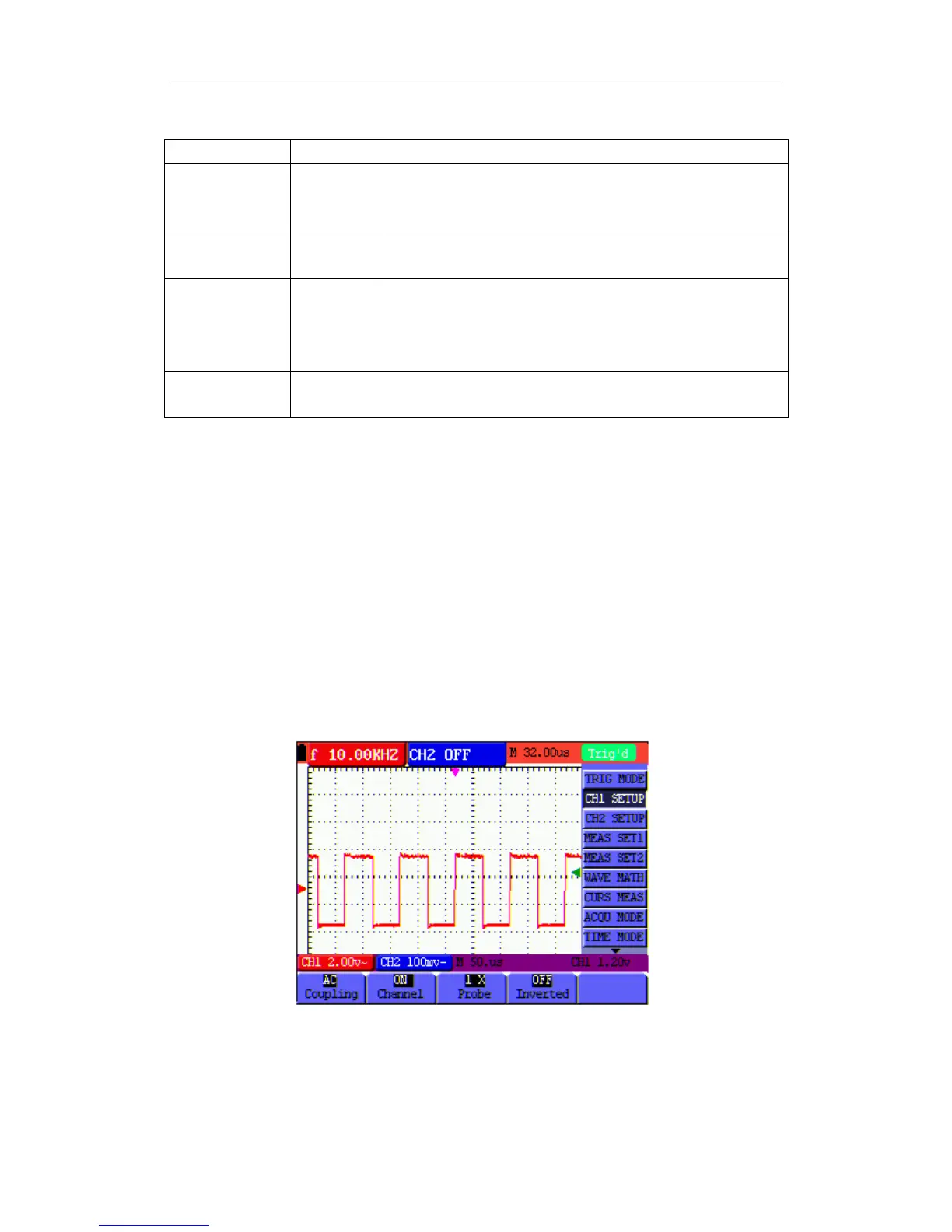

The following Table describes the Vertical Channel menu:
Function menu Setting Description
AC
DC
Ground
The dc component in the input signal is blocked.
The ac and dc components of the input signal are allowed.
Input signal is interrupted.
Coupling
OFF
ON
Close the channel.
Open the channel.
Channel
1 X
10 X
100 X
1000 X
Select one according to the probe attenuation level to ensure a
correct vertical scale reading.
Probe
OFF
ON
Waveform is displayed normally.
Open the Invert function of the waveform setting.
Inverted
8.2.1 Setting the Channel Coupling
Take CH1 for example:
Press F1 key, set Coupling as AC to make an AC coupling setting. The DC component contained
in the tested signal is blocked.
Press F1 key, set Coupling as DC to make a DC coupling setting. Both DC and AC components
contained in the tested signal are permitted.
Press F1 key, set Coupling as Ground to make a Ground coupling setting. Input signal is
interrupted.
The waveform is displayed as the following figure 35, figure 36, and figure 37.
Figure 35: AC Coupling
40
