OWON HDS-N Series Handheld DSO & DMM 6-Using the Oscilloscope

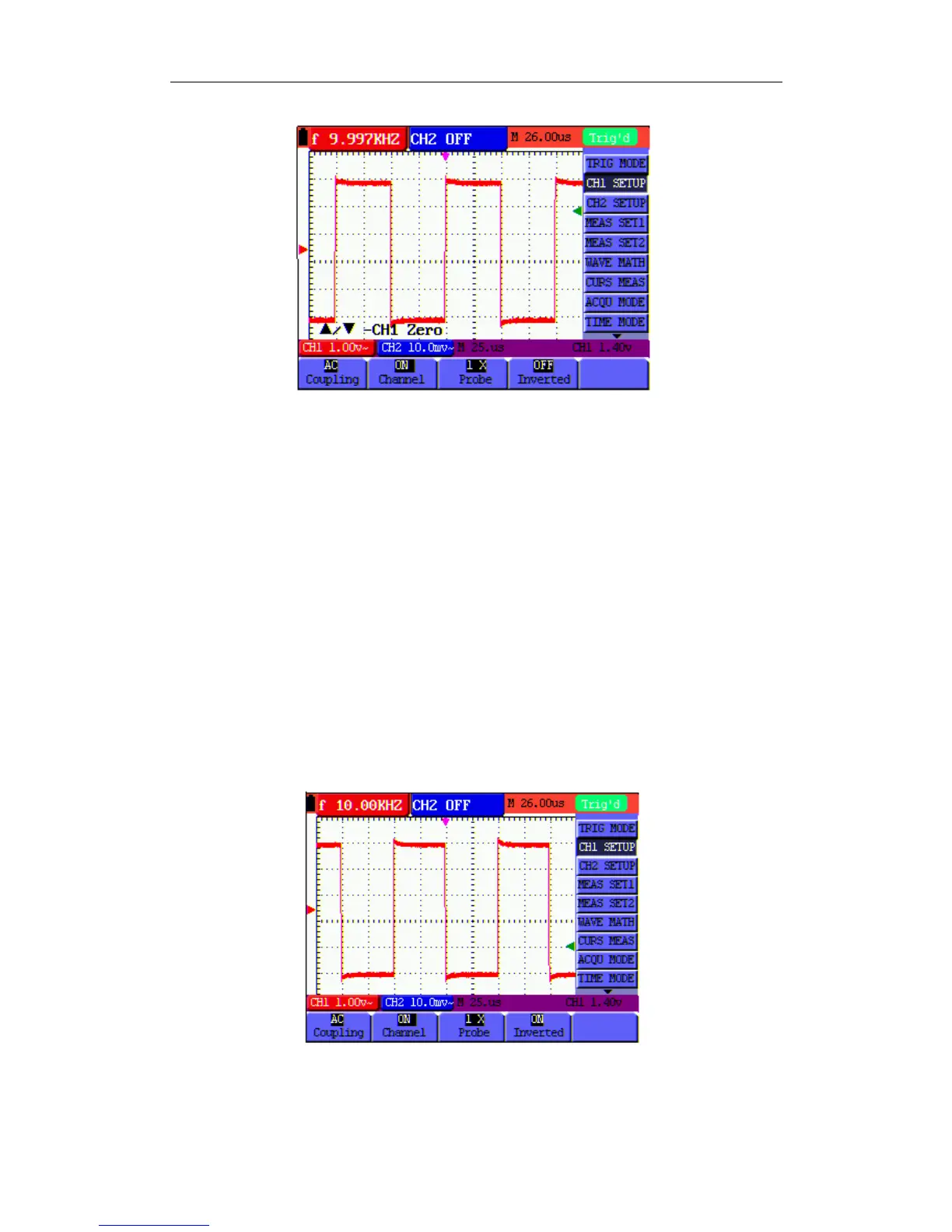

Figure 17: AC-Coupling
6.16 Reversing the Polarity of the Displayed Waveform
To invert the input CH1 waveform, do the following:
1. Press the MENU key and the function menu appears at the right side of the screen.
2. Press the MENU ▲ or MENU ▼ key to select CH1 SETUP. Four items selectable are
displayed at the bottom of the screen.
3. Press F4 key to jump to Inverted, set it as ON. The inverted waveform of CH1 is displayed
on the screen.
Now, you can see a screen that looks like the following figure 18.
Figure 18: Inverted On
25
