1. Press the R key and R appears on the top of the screen
2. Press the SET key until C appears at the top of the screen.
3. Insert the black leads to COM jack, and red leads to V/Ω/C jack.
4. Connected the black and red leads with capacitance, then screen shows the capacitance
reading.
Notice: when measured value is less than 5 nF capacitance, please use small capacitance measurer
of this multimeter and use relative value measuring mode to improve measuring precision.
It will take about 30seconds if capacitance measurement is larger than 40uF.
Now, you can see a screen that looks like the following figure 24.

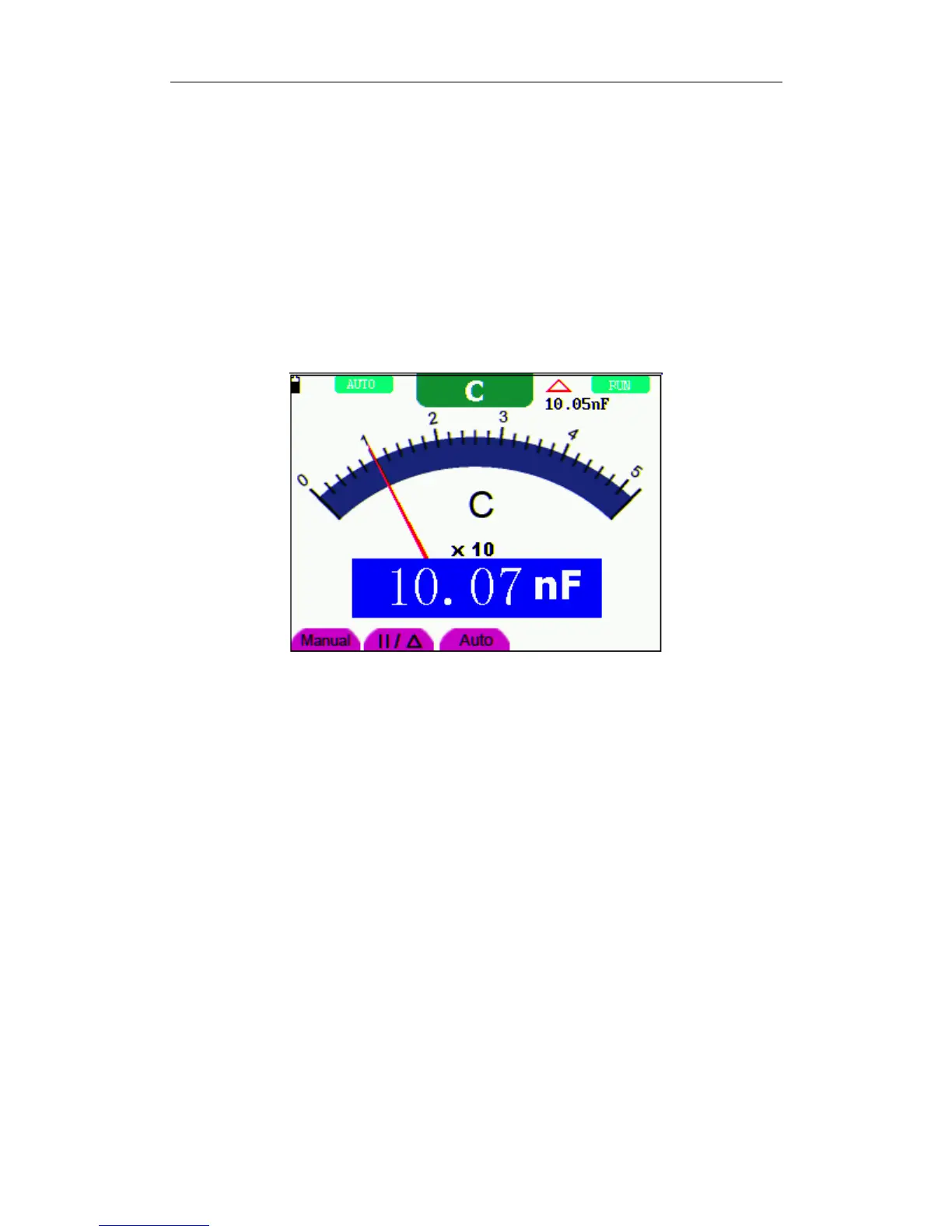

Figure 24: Capacitance Measurement
7.4.5 Measuring DC Voltage
To measure a DC voltage, do the following:
1. Press the V key and DCV appears at the top of the screen.
2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3. Connect the red and black leads to the measured point and the measured point voltage value
is displayed on the screen.
Now, you can see a screen that looks like the following figure 25.
