OWON HDS-N Series Handheld DSO & DMM 7-Using the Multimeter
2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
3. Connect the red and black test leads to the resistor. The resistor value readings are shown on
the screen in Ohm.

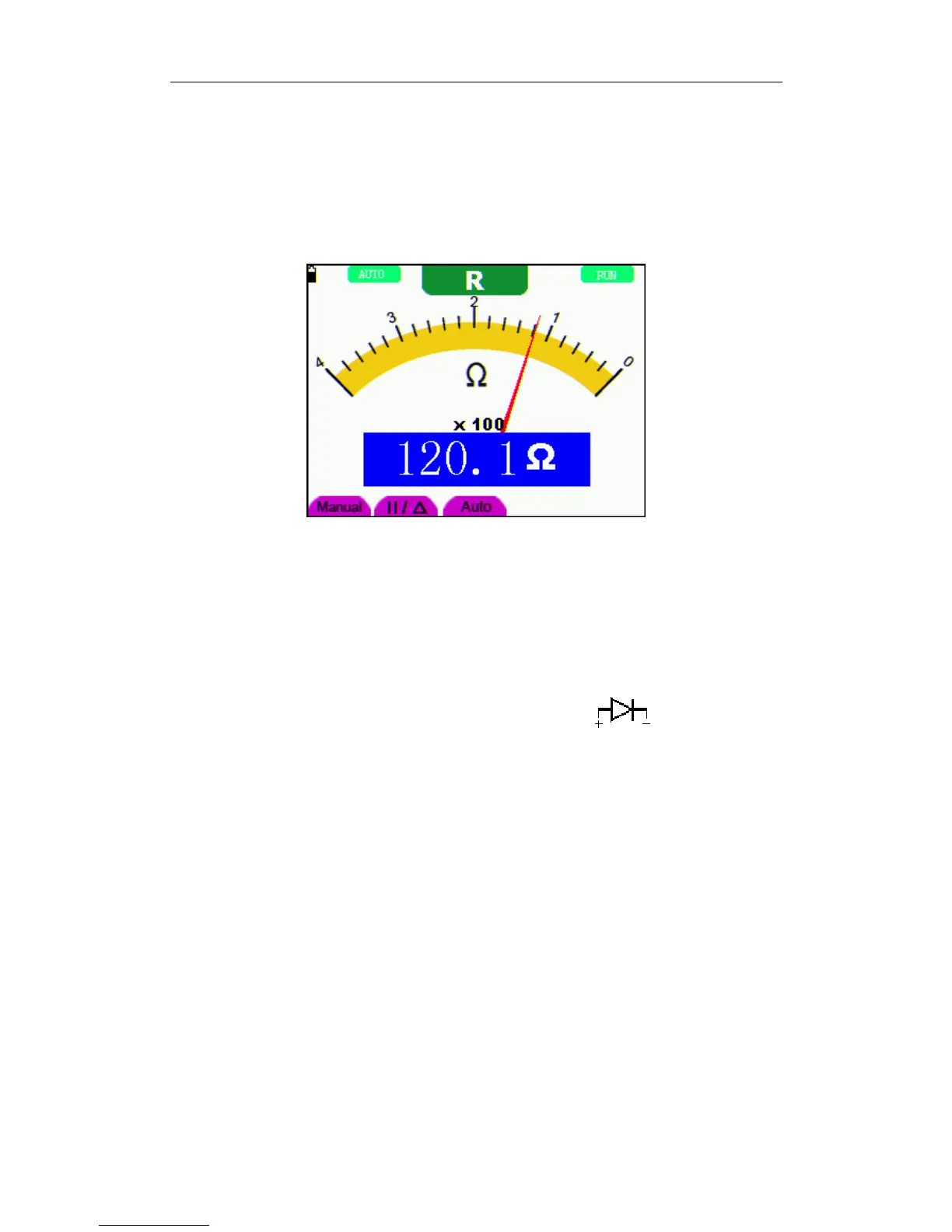

Now, you can see a screen that looks like the following figure 21.
Figure 21: Resistance Measurement
7.4.2 Measuring Diode
To make a measurement on the diode, do the following:
1. Press the R key and R appears at the top of the screen.
2. Press SET key until the following is displayed on the screen
.
3. Insert the black lead into the COM banana jack input and the red lead into the V/Ω/C
banana jack input.
4. Connect the red and black leads to the resistor and the diode resistor readings are displayed
on the screen in V.
Now, you can see a screen that looks like the following figure 22.
30
