4. Press the MENU ▲ or MENU ▼ key to select MEAS SET 2. Five options appear at the
bottom of the screen.
5. Press the F4 key to jump to the PK-PK measurement as CH2. The measurement window on
the screen turns into one blue in color and shows the peak-to-peak value of CH2.
Now, you can see a screen that looks like the following figure 51.

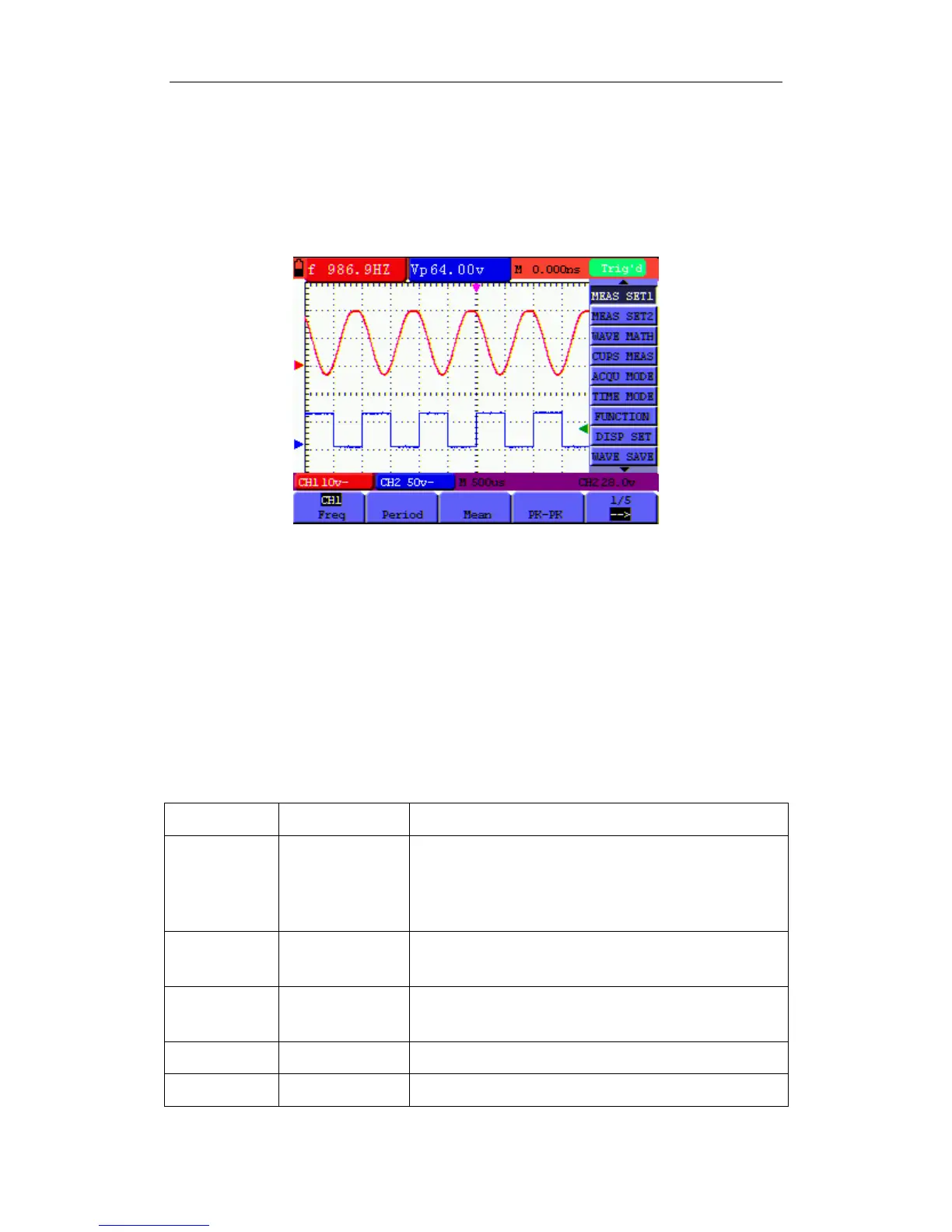

Figure 51: Automatic Measurements
8.11 Setting the Cursor Measurements
This oscilloscope allows you to make manual cursor measurements on time and voltage. The
signal sources include Channel 1(CH1), Channel 2 (CH2).
8.11.1 Setting the cursor measurement in normal mode
The cursor measurement menus are listed and described in the following table.
Function menus Settings Description
OFF
Voltage
Time
Close the cursor measurement.
Display the voltage measurement cursor and menu.
Display the time measurement cursor and menu.
Type
Source CH1, CH2.
Select the waveform channel on which the cursor
measurement will be performed.
Delta
Display the difference of measured value between
the two channels
Cur1
Display the relating measured value of Cursor 1
Cur2
Display the relating measured value of Cursor 2
57
