To make a voltage measurement on CH1, doing the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select CURS MEAS. Five options are shown at the
bottom of the screen.
3. Press F1 key to select the measurement type Voltage. Two purple crossing dashed lines V1
and V2 are shown on the screen.
4. Press the F2 key to select the measured channel CH1.
5. Press OPTION and display as
—Cursor 1
—Cursor 2
When setting OPTION ▲ or OPTION ▼, V2 will move up and down and the relating
voltage value to the zero position of Channel 1 will show at the bottom of the screen.
Setting OPTION ◄ or OPTION ►, V1 will move up and down and the relating voltage
value to the zero position of Channel 1 will show at the bottom of the screen, at the same
time the increment shows the absolute value of V1-V2 shown as Fig 52:

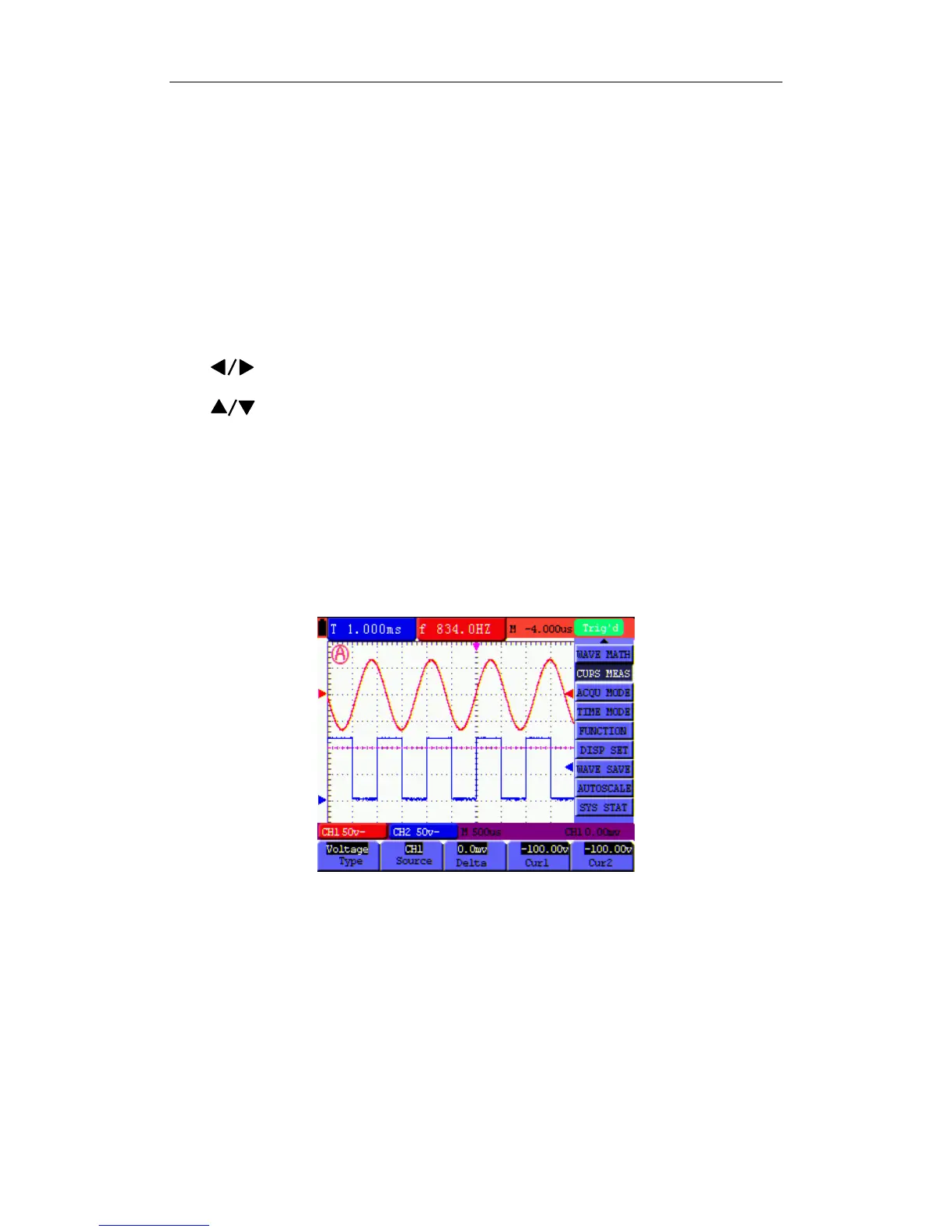

Figure 52: Use the Cursor for a Voltage Measurement
When log out submenu, every value will show on the right bottom of the screen as figure 53:
