Owon HDS-N series User Manual

OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

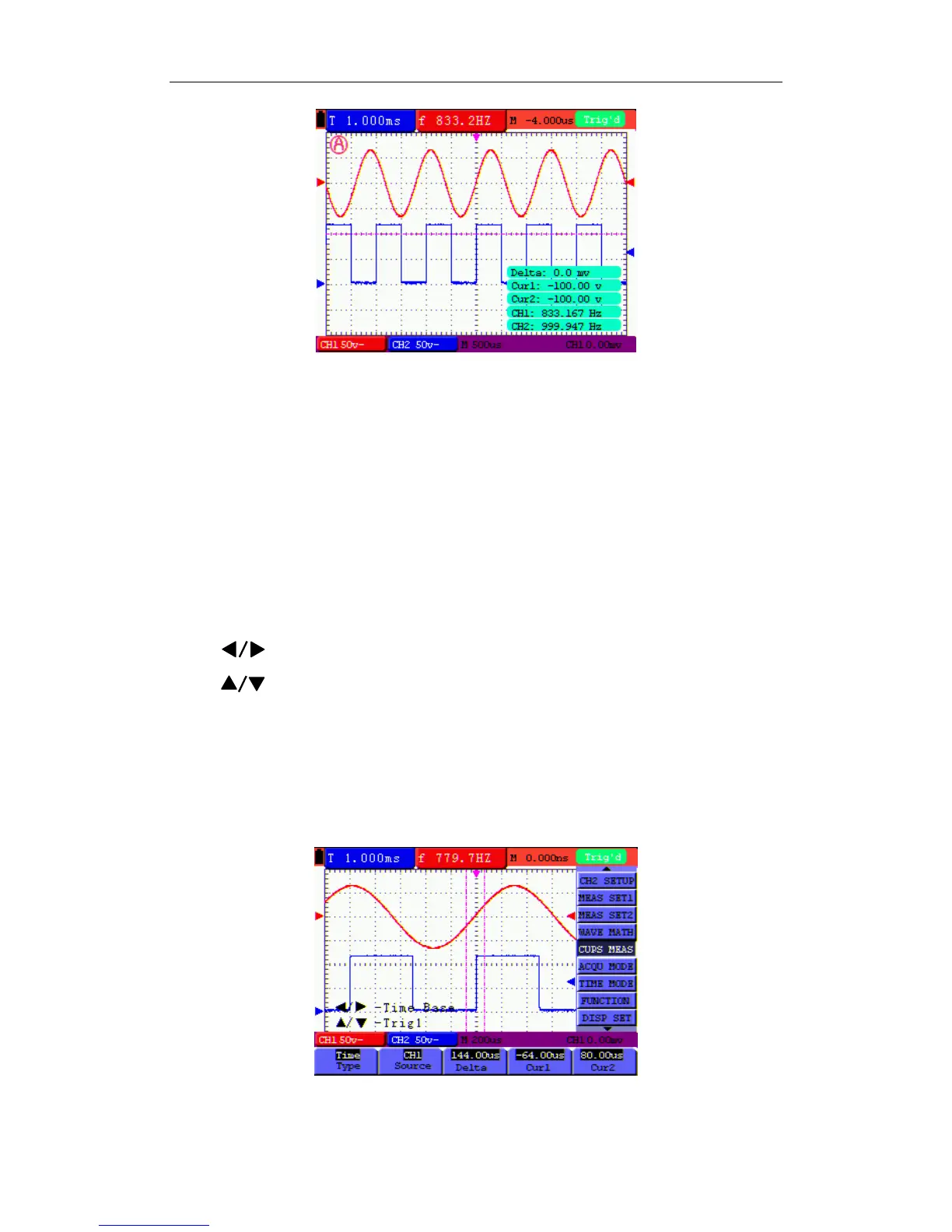

Figure 53
To use the cursor for a time measurement on CH1, do the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select CURS MEAS.
3. Press the F1 key to select the measurement type as Time. Two vertical dashed lines T1 and
T2 appear on the screen.
4. Press the F2 key and jump to the measured channel CH1.
5. Press OPTION and display as
—Cursor 1
—Cursor 2
Press ▲(yellow) or ▼(yellow) and see T1 move left and right and LCD display the time
value match T1 to point position in panel; press ◄(yellow) or ►(yellow) and see T2 move
left and right and LCD display the time value match T2 to point position in panel.
Now, you can see a screen that looks like the following figure 54.
Figure 54: Cursor time measurement
59
