OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

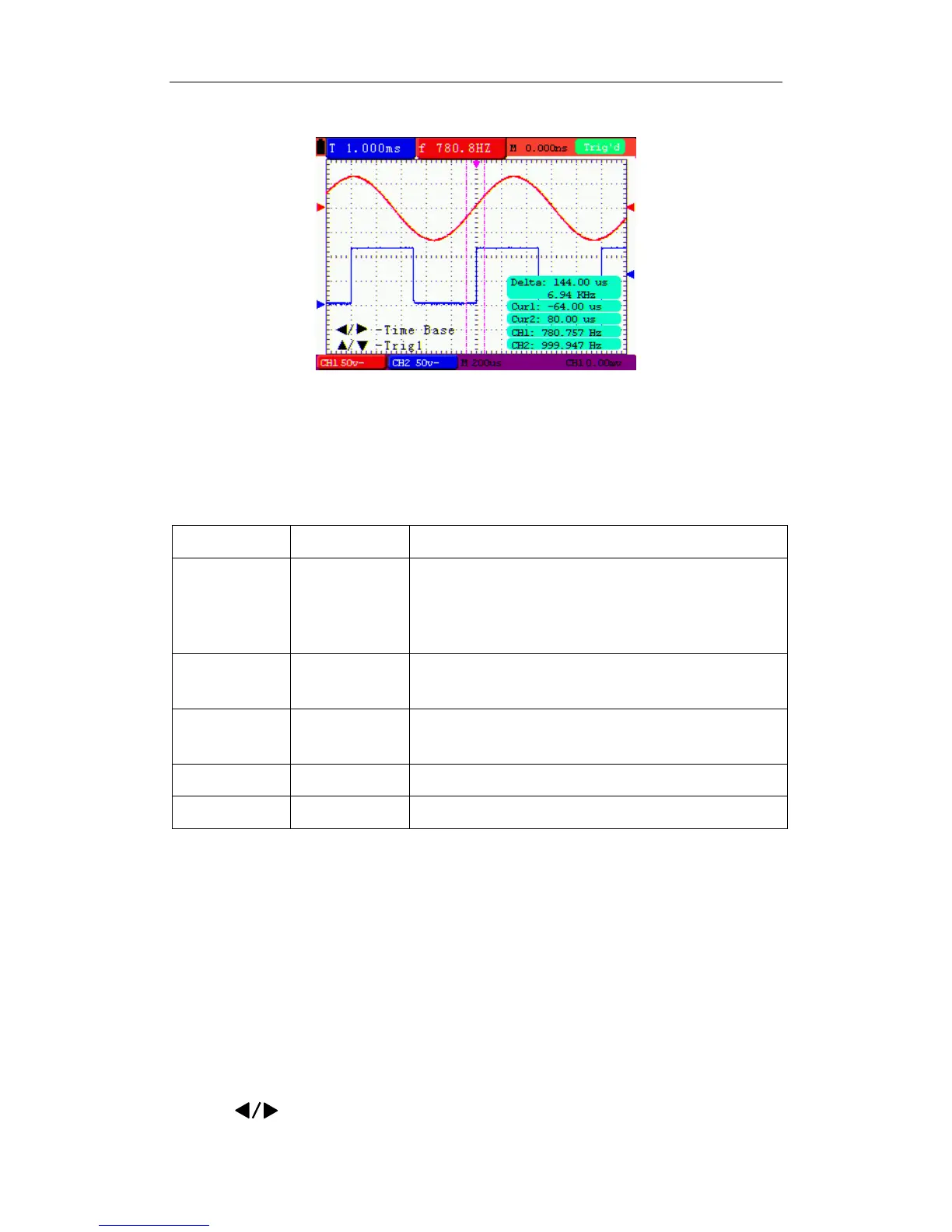

When log out submenu, every value will show on the right bottom of the screen as figure 55:
Figure 55: Use the Cursor for a Time Measurement
8.11.2 Setting the cursor measurement in FFT mode
FFT being on, the cursor measurement menus are listed and described in the following table.
Function menus Settings Description
OFF
Range
Frequency
Close the cursor measurement.
Display the vamp measurement cursor and menu.
Display the freq measurement cursor and menu.
Type
Source CH1，CH2
Display the selected source in the FFT MODE menu,
unable to change here.
Display the difference of measured value between the two
channels
Delta
Curs1 Display the relating measured value of Cursor 1
Curs2 Display the relating measured value of Cursor 2
To make a range measurement on CH1, doing the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select CURS MEAS. Five options are shown at the
bottom of the screen.
3. Press F1 key to select the measurement type Range. Two purple crossing dashed lines V1
and V2 are shown on the screen.
4. The channel which FFT operates is the measured channel CH1.
5. Press OPTION and display as
—Cursor 1
60
