OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
Function menu Setups Description
CH1
CH2
Math
Make sure the waveform you want to save appears in the
display. Select the displayed waveform which you want to
save.
Source
WAVE A, B, C and D Select the address for saving or recalling a waveform.
Save
Store the waveform of a selected signal source into the
selected address.
ON
OFF
Close or start displaying the waveforms stored in address A,
B, C or D.
Show
To save a waveform on CH1 in address A, do the following:
1. Press the MENU key and the function menu appears at the right of the screen.
2. Press the MENU ▲ or MENU ▼ key to select the WAVE SAVE. Four options are
displayed at the bottom of the screen.
3. Press the F1 key to select the signal source CH1.
4. Press the F2 key to select the address A.
5. Press the F3 key to save the waveform on CH1 in address A.
To display the saved waveform on the screen, do the following:
6. Press the F4 key to select ON for the address A. The waveform saved in address A will be
displayed on the screen in green color.
The display color is green, and the zero point of waveform, voltage and time is purple

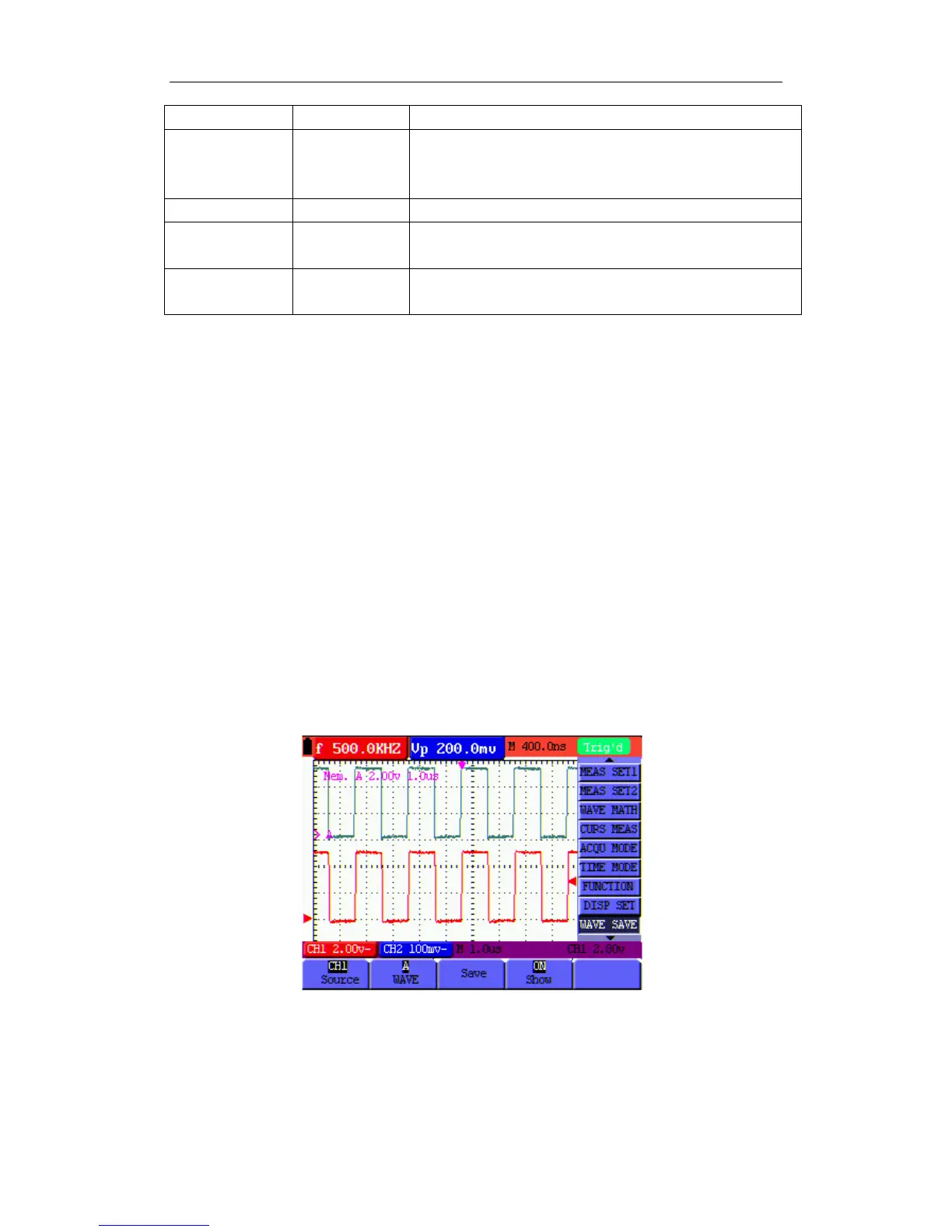

Now, you can see a screen that looks like the following figure 49.
Figure 49: Waveform Saving
53
