OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope

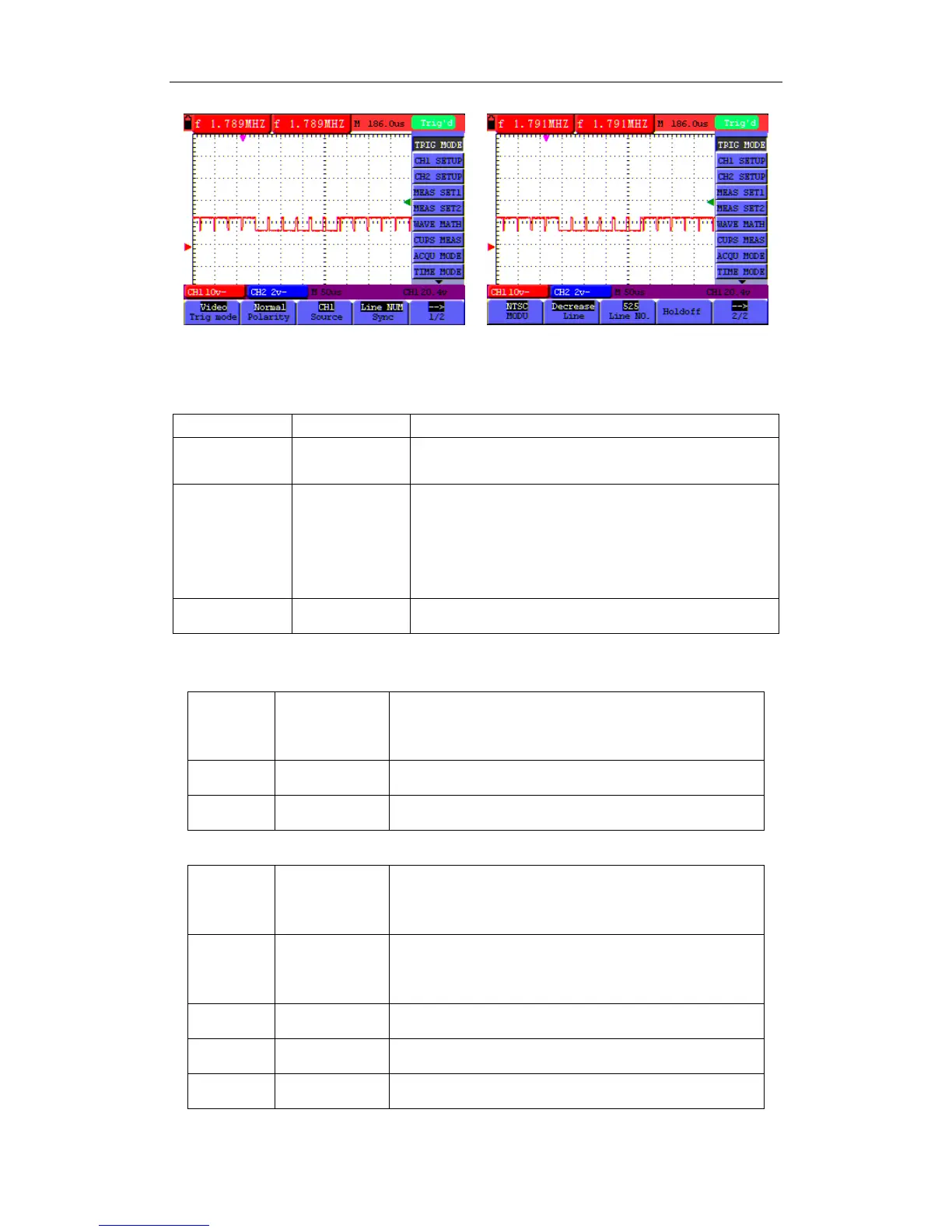

Figure 42: Video
Designed Line trigger (Page1) Figure 43: Video Designed Line trigger (Page2)
The Video trigger menu is described in the following table (First page):
Function menu Settings Description
CH1
CH2
Select CH1 as the trigger source.
Select CH2 as the trigger source.
Source
Line
Field
Odd Field
Even Field
Line NUM
Make a video line trigger synchronization setting.
Make a video field trigger synchronization setting.
Make a video odd field trigger synchronization setting.
Make a video even field trigger synchronization setting.
Make a video designed line synchronization setting.
Sync
－－＞
1 /2
To next menu
The Video triggering menu (Second page):
1. When the sync is Line, Field, Odd Field, Even Field, the second page menu is shown as bellow.
NTSC
PAL/SECAM
Video format setting MODU
Holdoff To go to holdoff menu
－－＞
2/2
Back to previous menu
2. when the sync is Line NUM, the second page menu is shown as bellow.
NTSC
PAL/SECAM
Video format setting MODU
Increase
Decrease
Set the line value to increase
Set the line value to decrease
Line
Line No. Set and Show the line valve
Holdoff To go to holdoff menu
－－＞
2/2
Back to previous menu
46
