OWON HDS-N Series Handheld DSO & DMM 8-Advanced Function of Oscilloscope
1. Press MENU key, display the function menu on the right side of the screen.
2. Press MENU ▲ or MENU ▼ key to select TIME MODE, display three options at the
bottom.
3. Press F2 key to select
Zone Window.
4. Press OPTION key to pop up TIME BASE, at this time, then press ◄ (yellow) and ►
(yellow) key to adjust the time base window area defined by two cursors, the window size
will vary.
5. Press OPTION key and call TIME, at this time, press ◄(yellow) and ►(yellow) to adjust
the window position defined by two cursors, the window position is the time difference of the
window center to main time base's horizontal pointer.
6. Press F3 key, select Window, the defined window extends into the full-screen display.

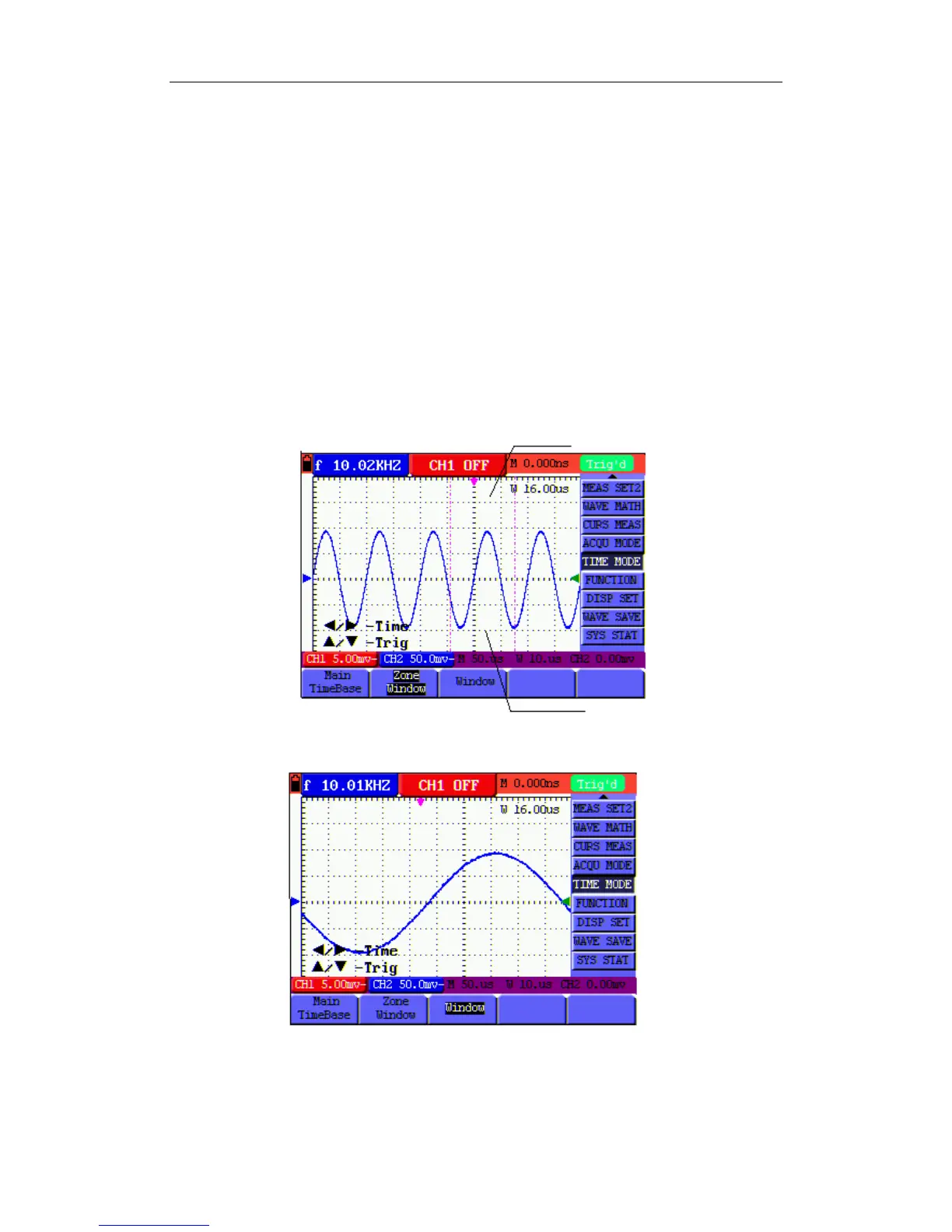

The screen that looks like the following figure 67, 68 will be displayed.
Figure 67:
Zone Window
Figure 68: Window
74
