INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 5
 One COM port with dual fiber
 The four wavelengths match the DWDM ITU grid which allows for 10G
client signals

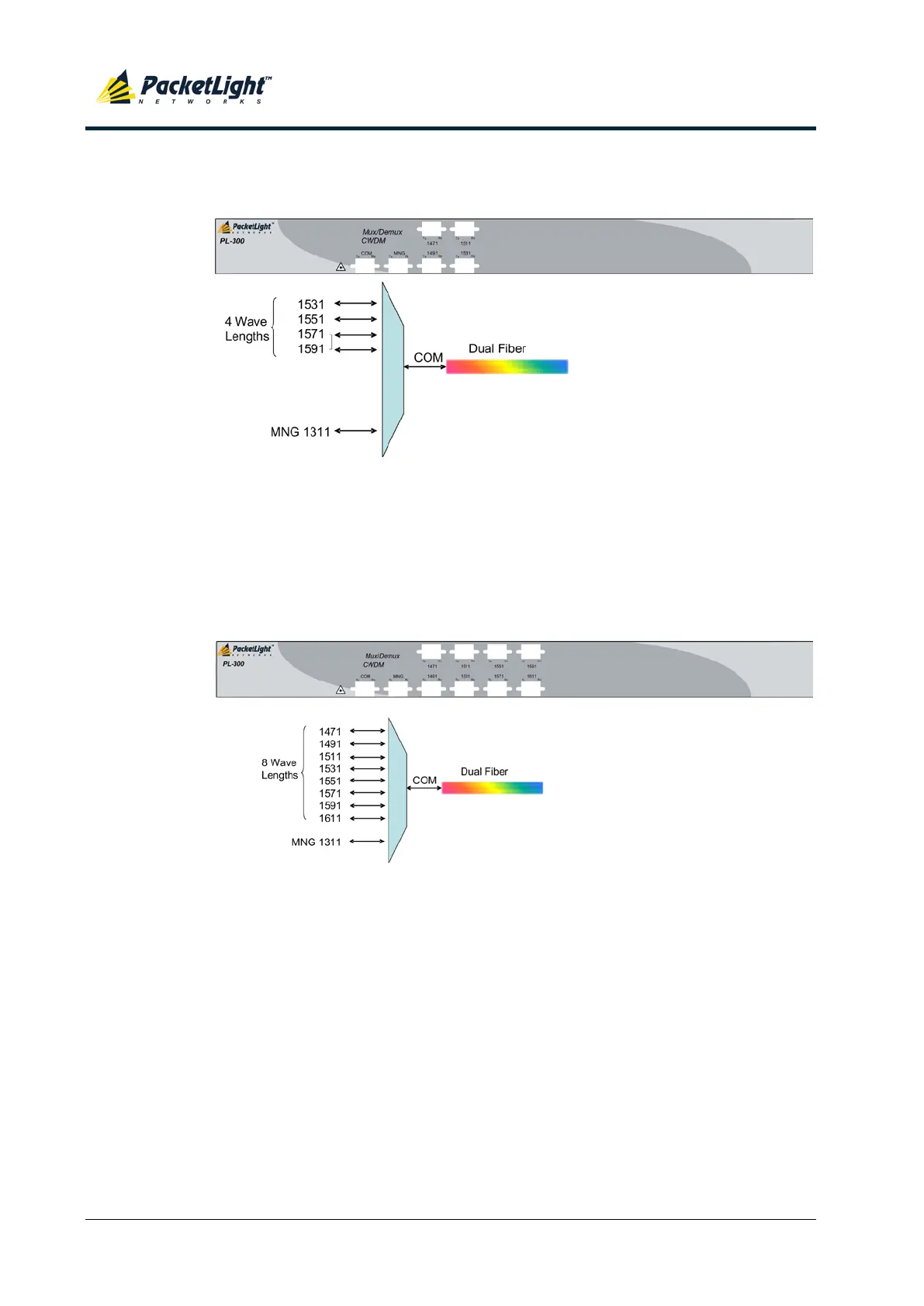

Figure 3: PL-300 CWDM-1M-4W-1C-2F-10G
3. PL-300 CWDM-1M-8W-1C-2F:
 Single passive optical MUX/DEMUX module with eight wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
 One COM port with dual fiber
Figure 4: PL-300 CWDM-1M-8W-1C-2F
4. PL-300 CWDM-1M-16W-1C-2F:
 Single passive optical MUX/DEMUX module with 16 wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
