INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 20
 Two COM ports with single fiber

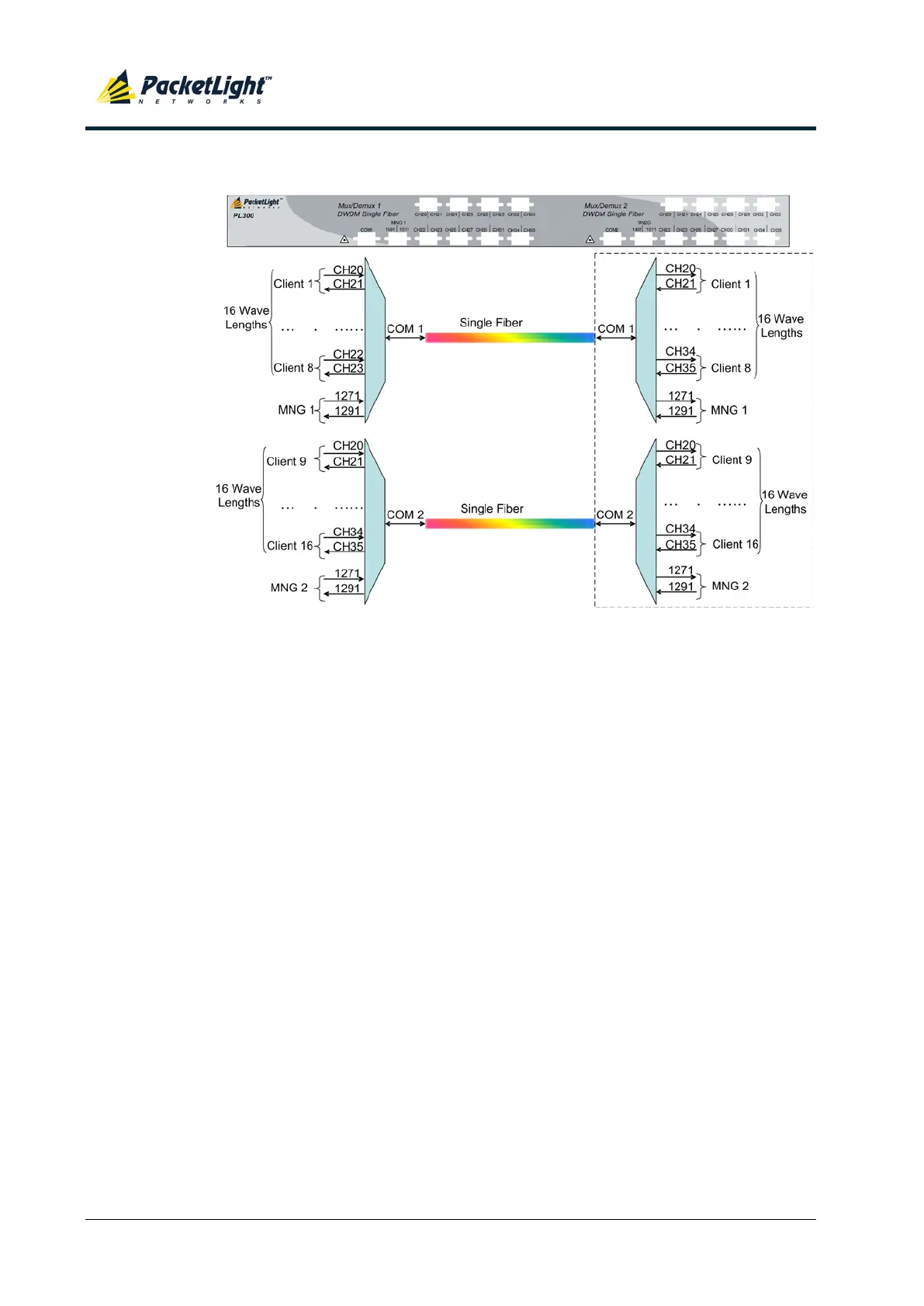

Figure 23: PL-300 DWDM-2M-16W-2C-1F
10. PL-300 DWDM-2M-16W-1C-1F (Red/Blue):
 Two passive optical MUX/DEMUX modules with 16 wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
 Red/Blue band filter
