 Two COM ports with dual fiber

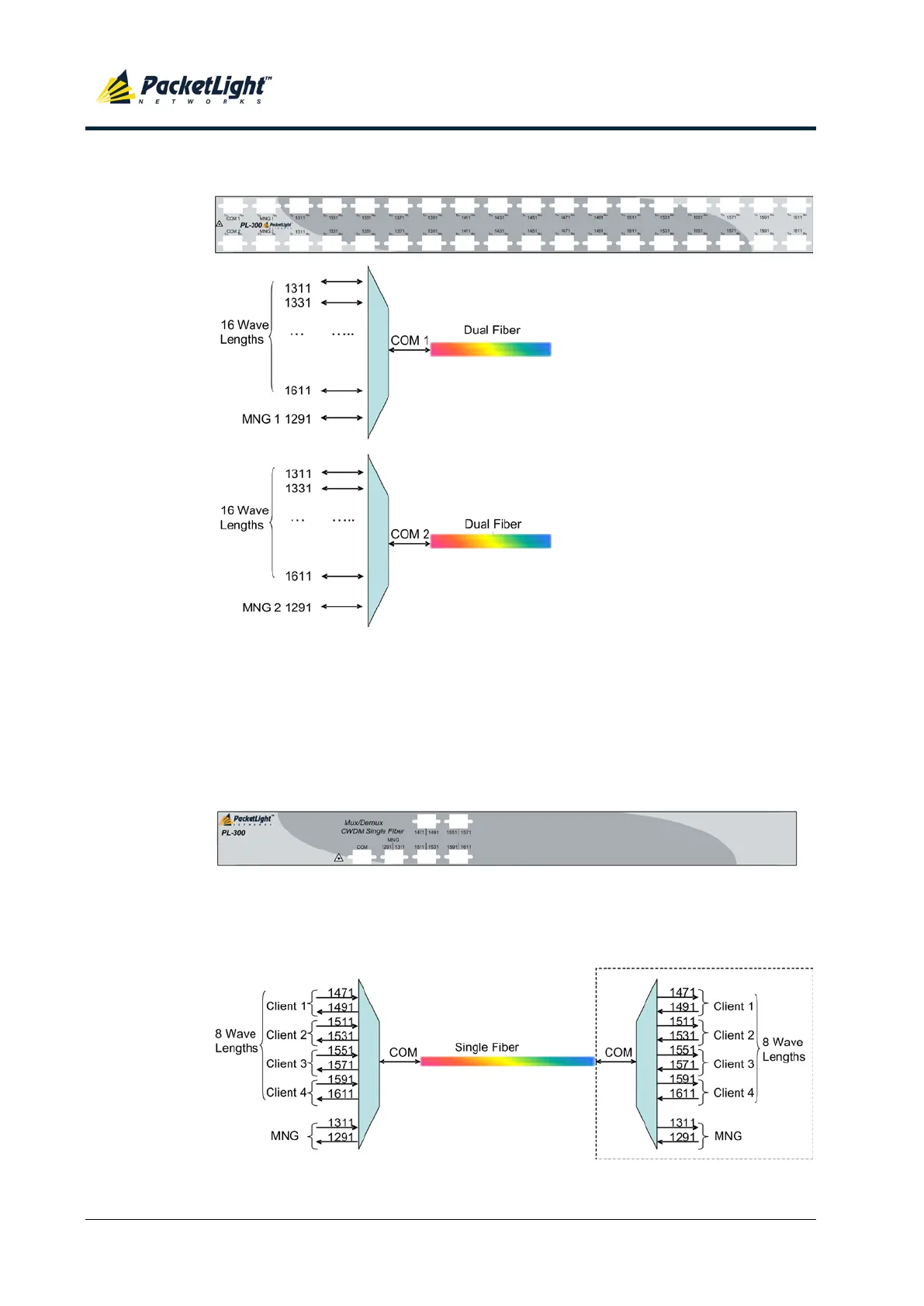

Figure 8: PL-300 CWDM-2M-16W-2C-2F
8. PL-300 CWDM-1M-8W-1C-1F:
 Single passive optical MUX/DEMUX module with eight wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
 One COM port with single fiber
Figure 9: PL-300 CWDM-1M-8W-1C-1F
