INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 10
 Two COM ports with single fiber

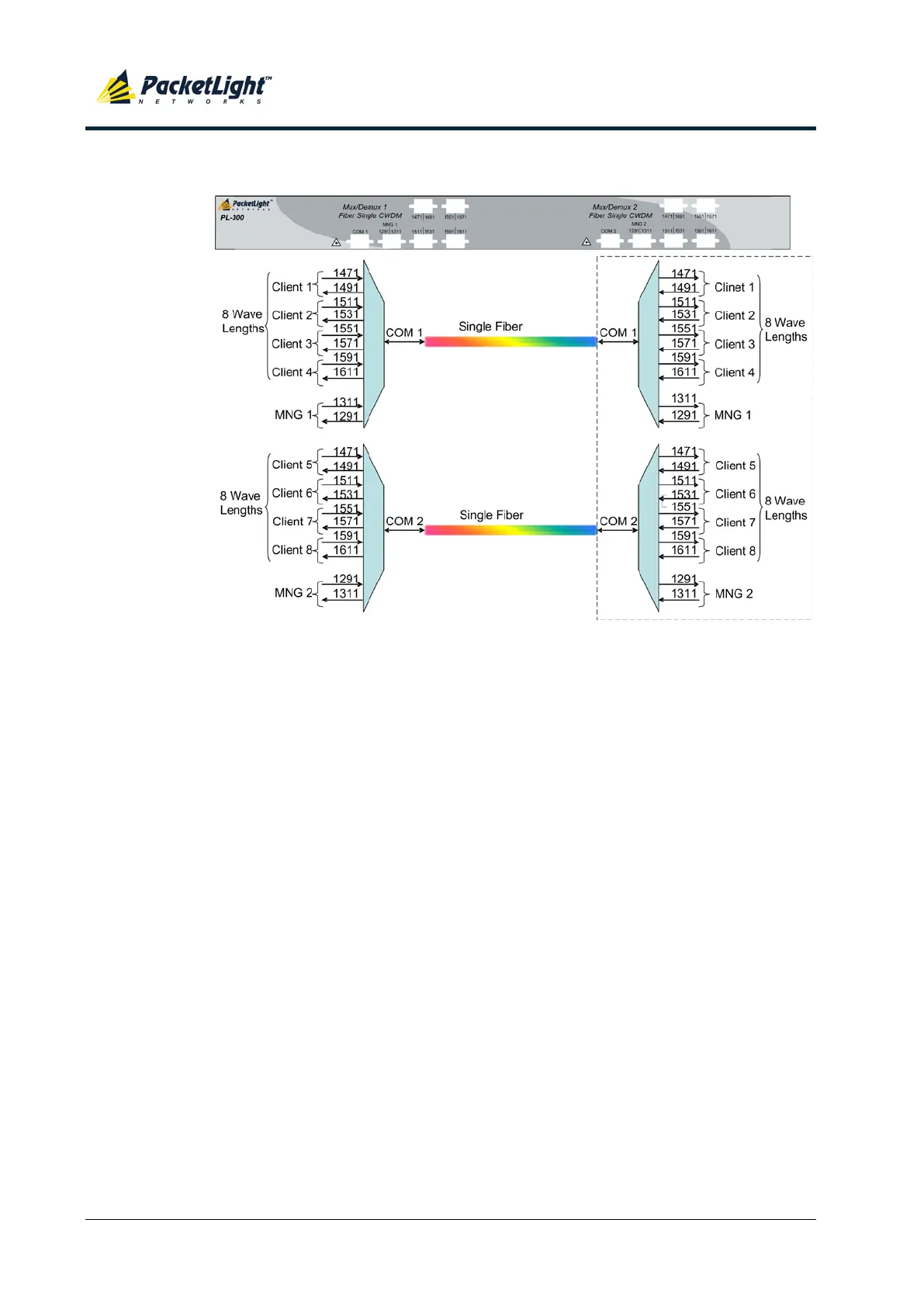

Figure 11: PL-300 CWDM-2M-8W-2C-1F
11. PL-300 CWDM-2M-16W-2C-1F:
 Two passive optical MUX/DEMUX modules with 16 wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
