12. PL-300 DWDM-1M-88W-1C-1F-50G-1D (Unidirectional):
 Single passive optical MUX (or DEMUX) module with 88 wavelengths each
 The MUX (or DEMUX) module has an additional channel for the
management OSC channel
 One COM port with single fiber
 50 GHz spacing
 Unidirectional

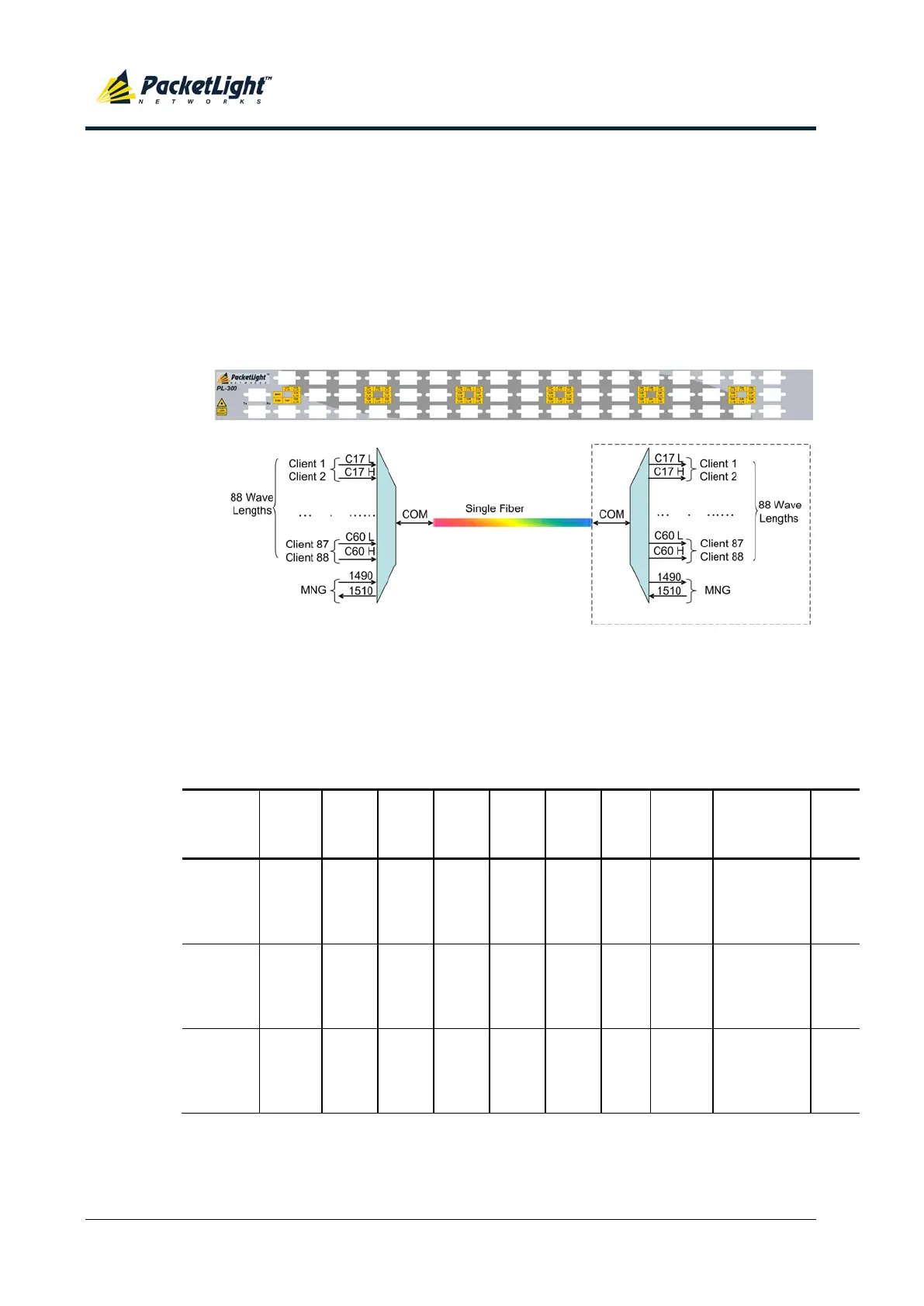

Figure 26: PL-300 DWDM-1M-88W-1C-1F-50G-1D (Unidirectional)
1.5.4 DWDM OADM Configurations
The following table lists the PL-300 DWDM OADM configurations.
Table 4: DWDM OADM Configurations
PL-300
Model
OADM
Type
OADM
#
OADM
WLs
#
COM
Ports
#
COM
Fiber
Type
EXP
Ports
#
EXP
Fiber
Type
Clients
#
OADM
WLs
MNG
WL
DWDM-
1O-
1Wxx-
1C-2F
DWDM 1 1 1 Dual 1 Dual 1 CHxx 1511
DWDM-
1O-
2Wxx-
1C-2F
DWDM 1 2 1 Dual 1 Dual 2 CHxx-CHxx+
1
1511
DWDM-
1O-
3Wxx-
1C-2F
DWDM 1 3 1 Dual 1 Dual 3 CHxx-CHxx+
2
1511
