B.1.2 Example 2: Using PL-300 DWDM-2M-8W-1C-2F
In this example, there are two sites: A and B.
Each site has eight 10G services.
The two PL-300 DWDM-2M-8W-1C-2F units are used to combine all of these
services on a dual fiber.
The two additional PL-1000 units in each site are used to convert the client signal
to DWDM.

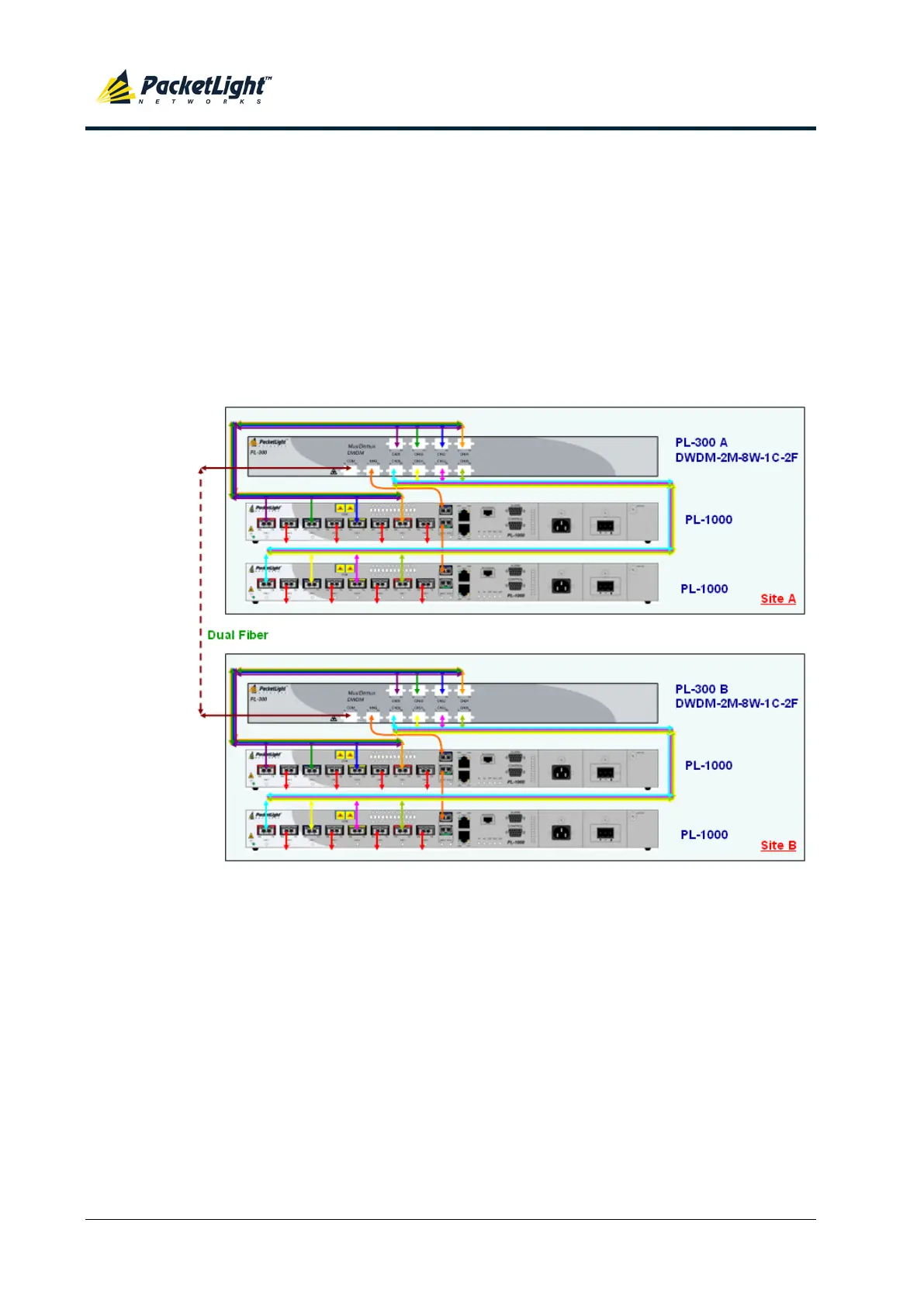

Figure 33: Using PL-300 DWDM-2M-8W-1C-2F (Example)
