B.1.3 Example 3: Using PL-300 CWDM-2M-8W-2C-2F
In this example, there are two sites: A and B.
Each site has eight services of up to 4G.
The two PL-300 CWDM-2M-8W-2C-2F units are used to combine all of these
services on two protected dual fibers.
The two additional PL-400E units in each site are used to convert the client signal
to DWDM and duplicate the client signals to Working and Protection.

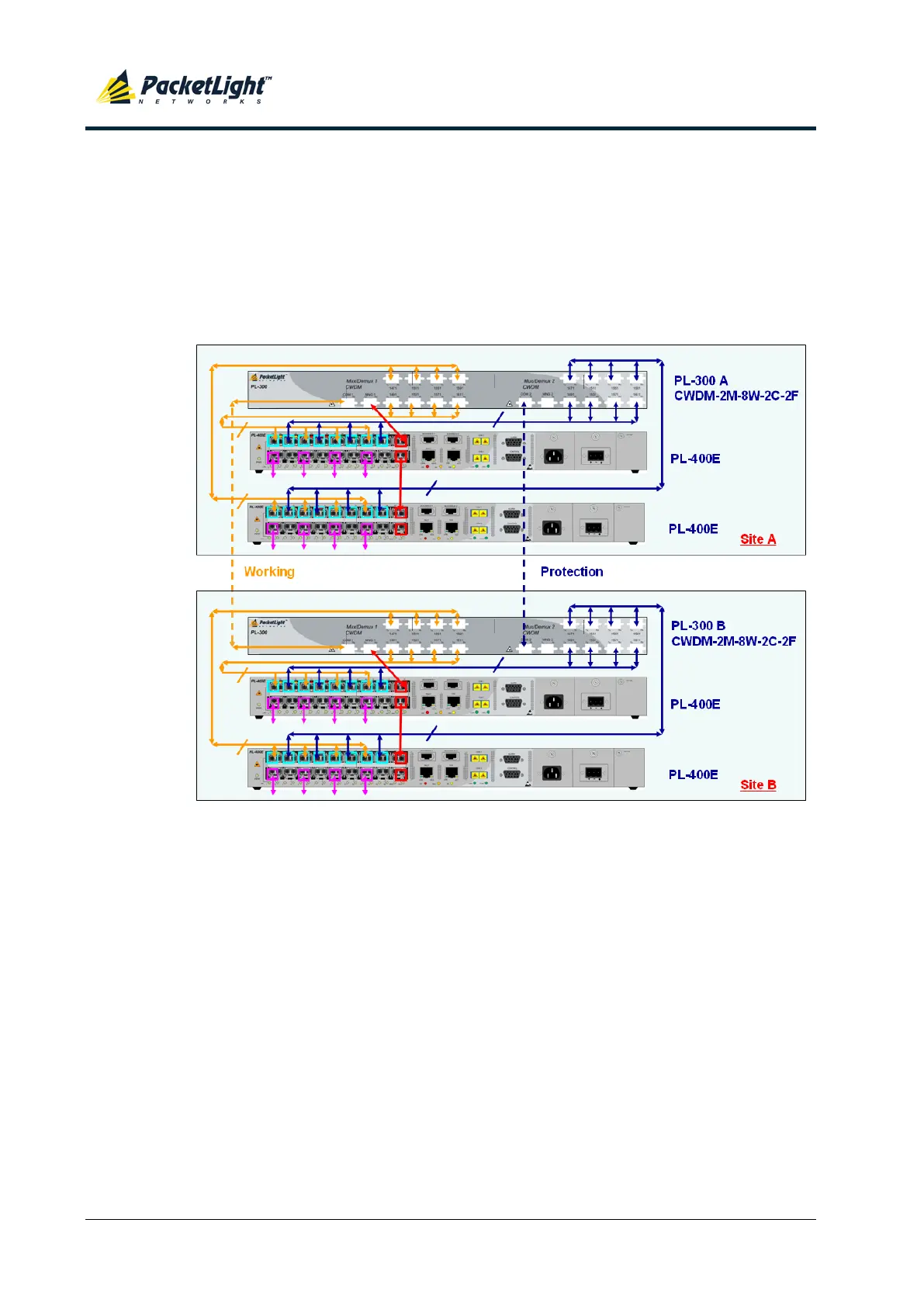

Figure 34: Using PL-300 CWDM-2M-8W-2C-2F (Example)
