2. PL-300 DWDM-1O-3W28-2C-2F:
 Dual OADM modules each with three Add/Drop wavelengths
The Channels are: CH28, CH29 and CH30
 Additional OSC 1510 management channel
 Two COM ports with dual fiber
 Two EXP ports with dual fiber

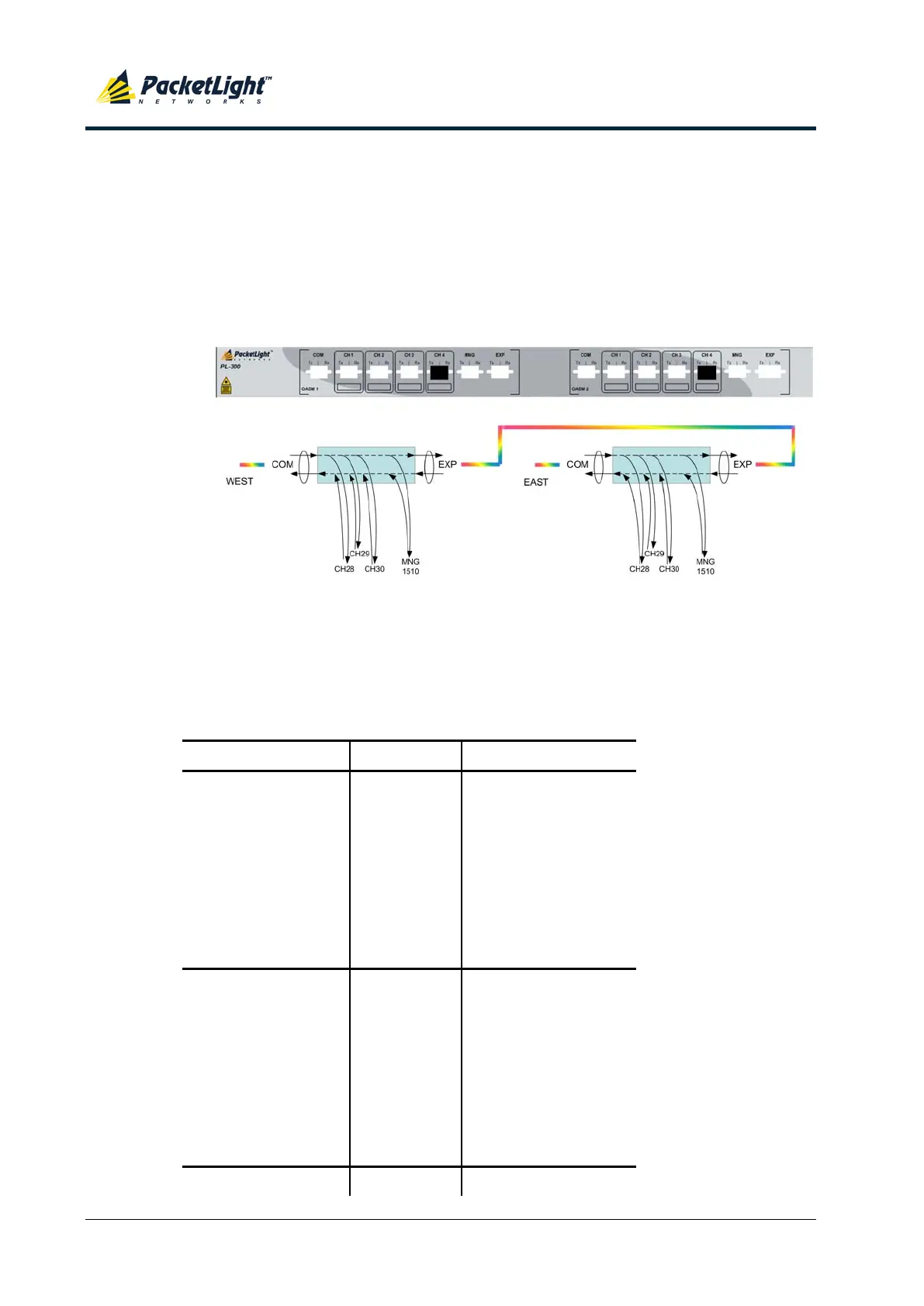

Figure 28: PL-300 DWDM-1M-3W28-2C-2F
1.5.5 DCM Configurations
The following table lists the PL-300 DCM configurations.
Table 5: DCM Configurations
PL-300 Model DCM # Distance
DCM1-40K 1 Up to 40 km
DCM1-60K 1 Up to 60 km
DCM1-80K 1 Up to 80 km
DCM1-100K 1 Up to 100 km
DCM1-120K 1 Up to 120 km
DCM1-220K 1 Up to 220 km
DCM1-400K 1 Up to 400 km
DCM1-40K 2 Up to 40 km
DCM1-60K 2 Up to 60 km
DCM1-80K 2 Up to 80 km
DCM1-100K 2 Up to 100 km
DCM2-120K 2 Up to 120 km
DCM2-220K 2 Up to 220 km
DCM2-400K 2 Up to 400 km
DCM1-40K 4 Up to 40 km
