Appendix B: PL-300 Application Examples
This appendix provides examples for using the PL-300.
In this Appendix
Examples ............................................................................................. 45
B.1 Examples
B.1.1 Example 1: Using PL-300 DWDM-2M-16W-1C-1F
In this example, there are two sites: A and B.
Each site has 16 services.
The two PL-300 DWDM-2M-16W-1C-1F units are used to combine all of these
services on a single fiber.
The two additional PL-400E units in each site are used to convert the client signal
to DWDM.
NOTE: You can add an additional PL-1000IL unit with Pre-Amp to increase the
optical reach between the sites.

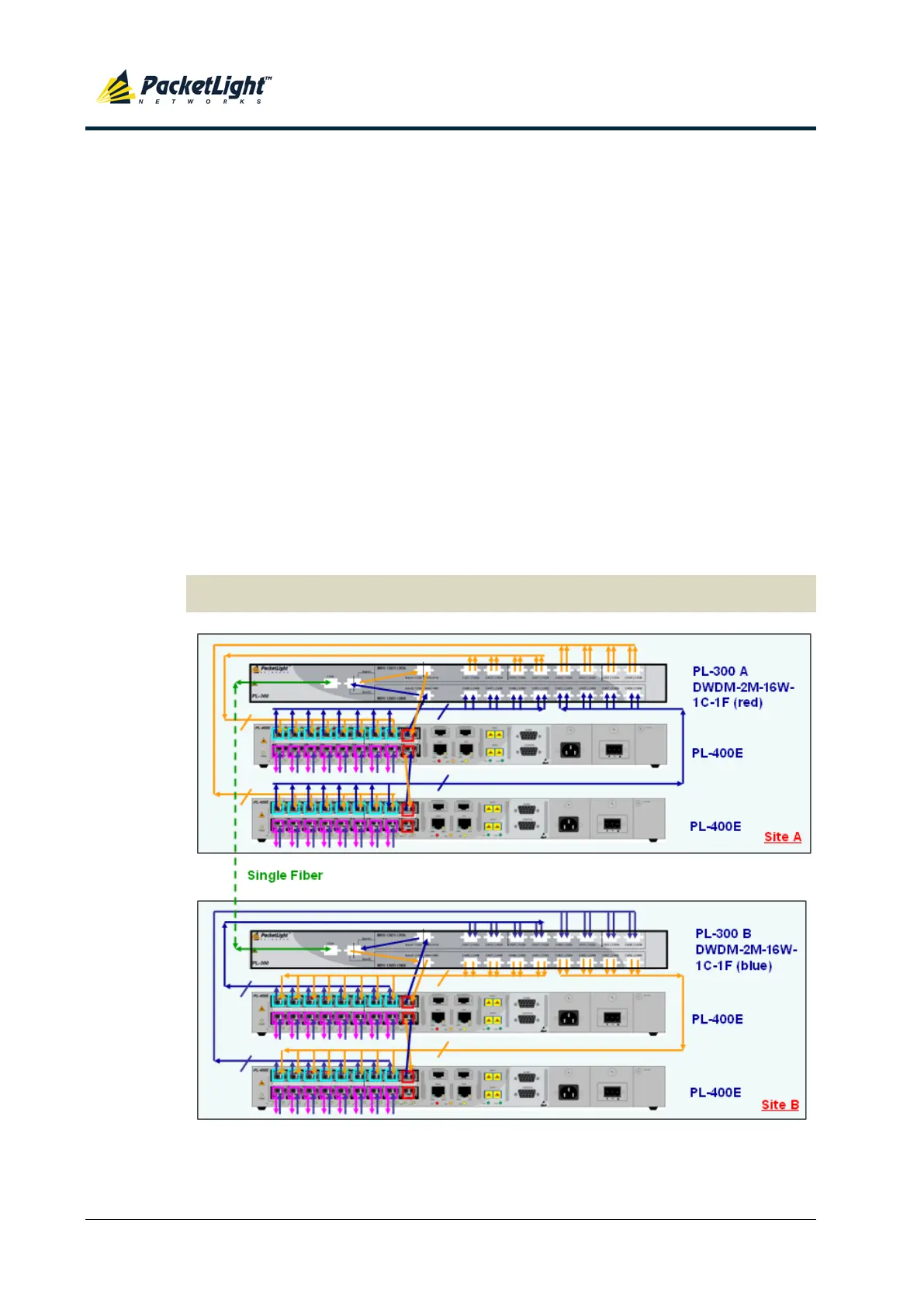

Figure 32: Using PL-300 DWDM-2M-16W-1C-1F (Example)
