INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 13
 Additional OSC 1310 management channel
 Two COM ports with dual fiber
 Two EXP ports with dual fiber

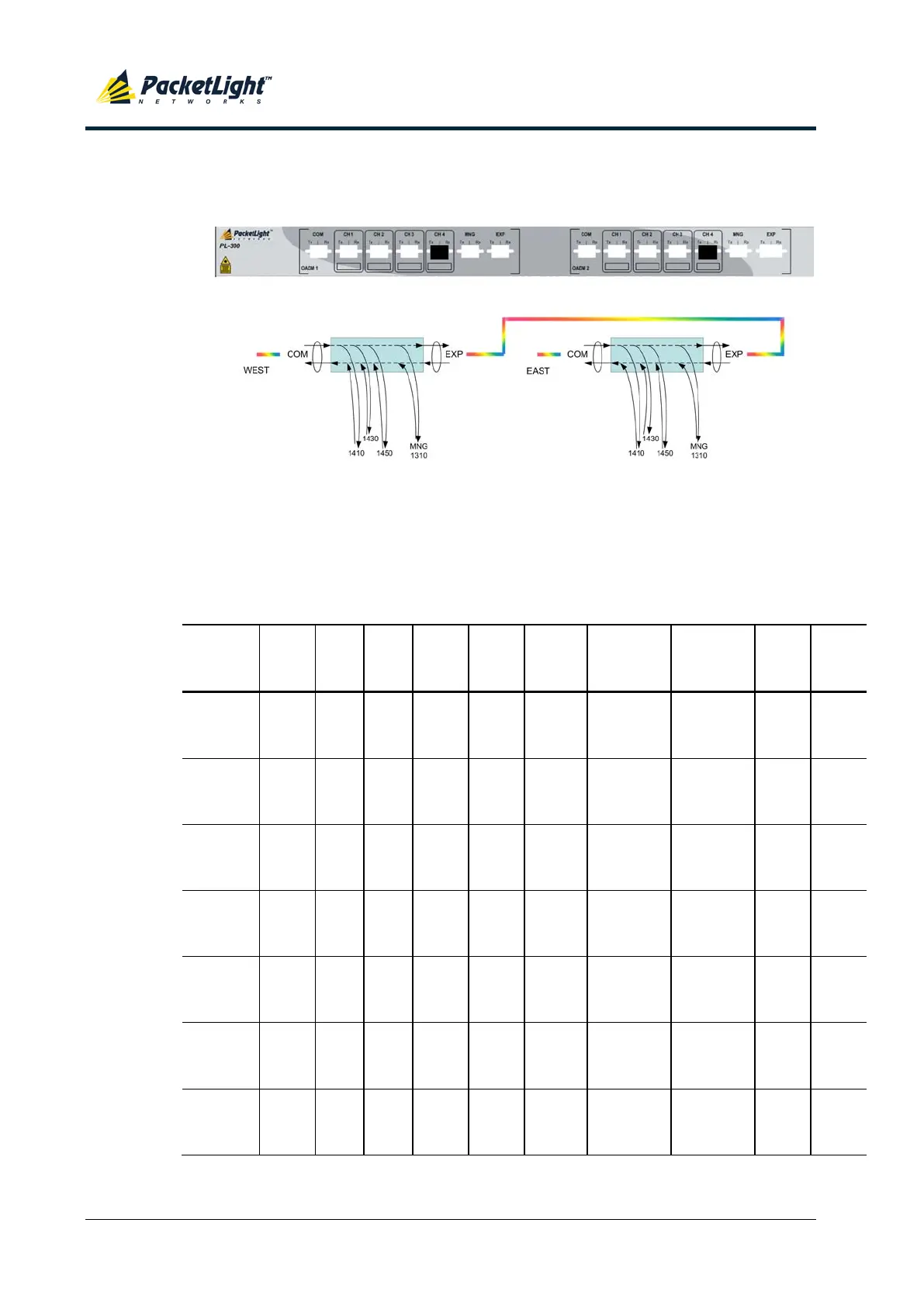

Figure 14: PL-300 CWDM-1O-3W1410-2C-2F
1.5.3 DWDM MUX/DEMUX Configurations
The following table lists the PL-300 DWDM MUX/DEMUX configurations.
Table 3: DWDM MUX/DEMUX Configurations
PL-300
Model
MUX
Type
MUX
#
MUX
WLs
#
COM
Ports
#
COM
Fiber
Type
Clients
#
MUX1
WLs
MUX2
WLs
MNG1
WL
MNG2
WL
DWDM-
1M-4W-
1C-2F
DWDM 1 4 1 Dual 4 CH28-CH31 N/A 1511 N/A
DWDM-
1M-8W-
1C-2F
DWDM 1 8 1 Dual 8 CH28-CH35 N/A 1511 N/A
DWDM-
1M-16W-
1C-2F
DWDM 1 16 1 Dual 16 CH20-CH35 N/A 1511 N/A
DWDM-
1M-40W-
1C-2F
DWDM 1 40 1 Dual 40 CH20-CH59 N/A 1511 N/A
DWDM-
2M-4W-
2C-2F
DWDM 2 4 2 Dual 8
(4+4)
CH28-CH31 CH28-CH31 1511 1511
DWDM-
2M-8W-
2C-2F
DWDM 2 8 2 Dual 16
(8+8)
CH28-CH35 CH28-CH35 1511 1511
DWDM-
2M-16W-
2C-2F
DWDM 2 16 2 Dual 32
(16+16)
CH20-CH35 CH20-CH35 1511 1511
