PacketLight Networks PL-300 - Figure 5: PL-300 CWDM-1 M-16 W-1 C-2 F; Figure 6: PL-300 CWDM-2 M-4 W-2 C-2 F

INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 6
 One COM port with dual fiber

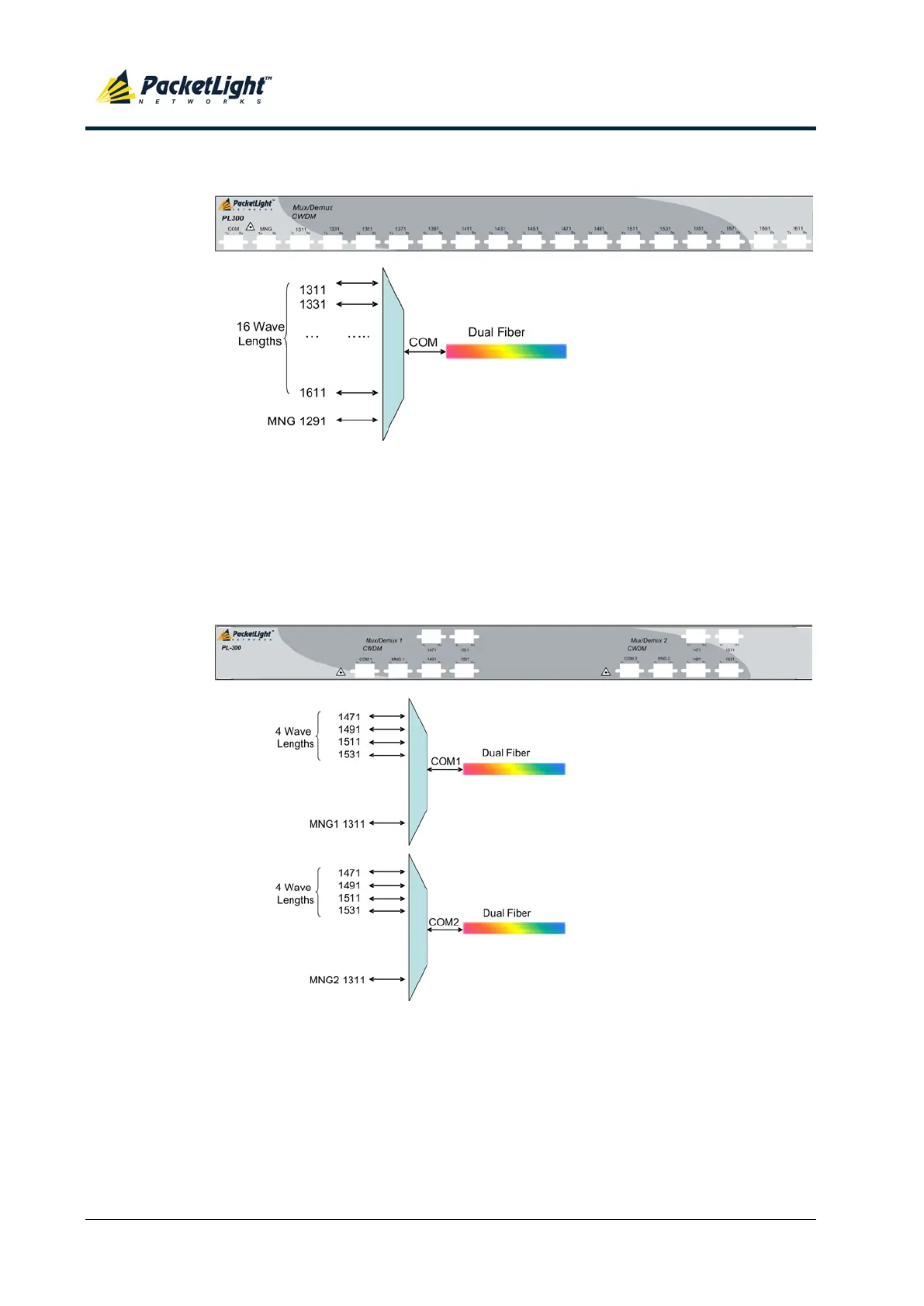

Figure 5: PL-300 CWDM-1M-16W-1C-2F
5. PL-300 CWDM-2M-4W-2C-2F:
 Two passive optical MUX/DEMUX modules with four wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
 Two COM ports with dual fiber
Figure 6: PL-300 CWDM-2M-4W-2C-2F
6. PL-300 CWDM-2M-8W-2C-2F:
 Two passive optical MUX/DEMUX modules with eight wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
