2. PL-300 DWDM-1M-8W-1C-2F:
 Single passive optical MUX/DEMUX module with eight wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
 One COM port with dual fiber

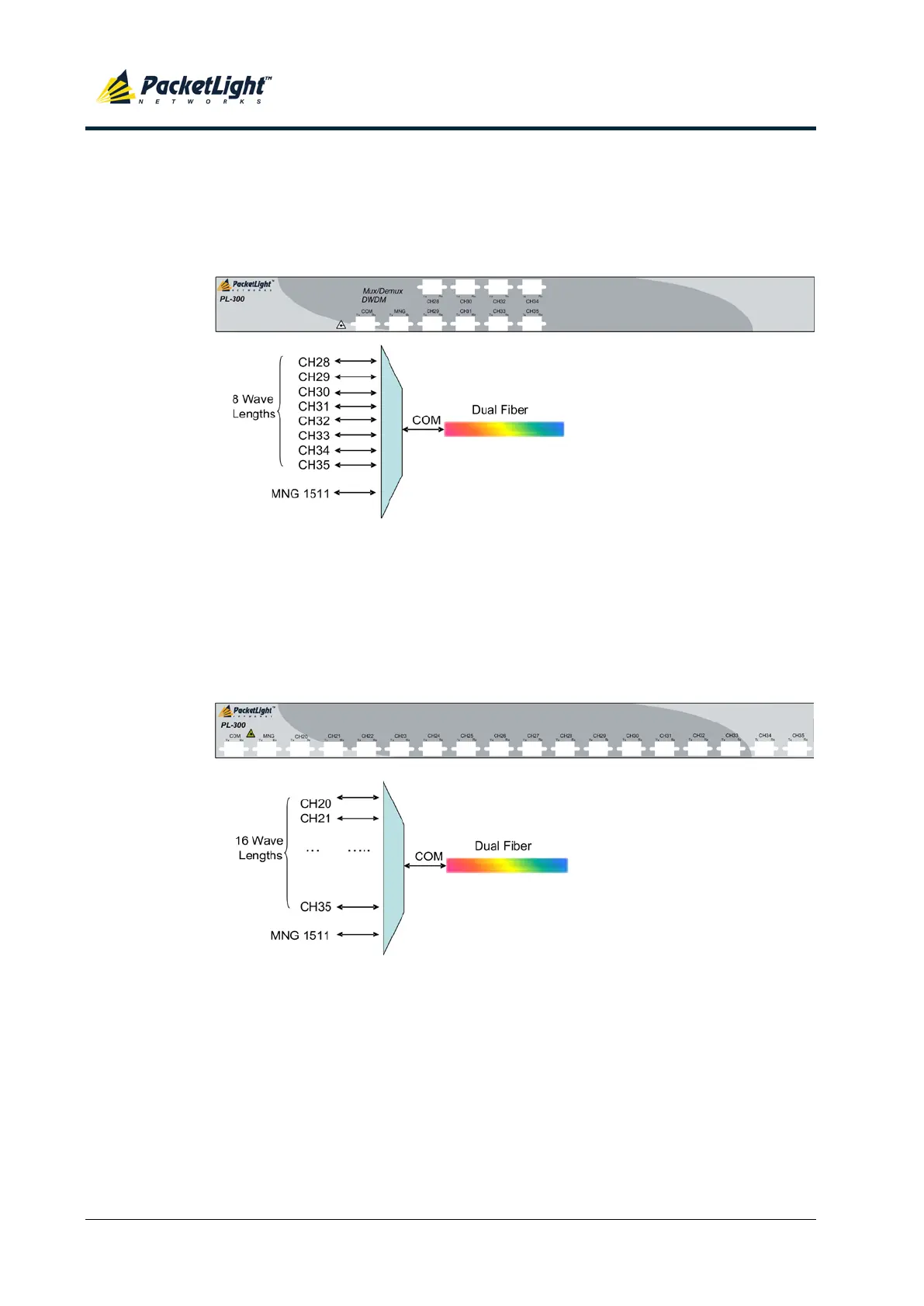

Figure 16: PL-300 DWDM-1M-8W-1C-2F
3. PL-300 DWDM-1M-16W-1C-2F:
 Single passive optical MUX/DEMUX module with 16 wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
 One COM port with dual fiber
Figure 17: PL-300 DWDM-1M-16W-1C-2F
4. PL-300 DWDM-1M-40W-1C-2F:
 Single passive optical MUX/DEMUX module with 40 wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
