INTRODUCTION
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 9

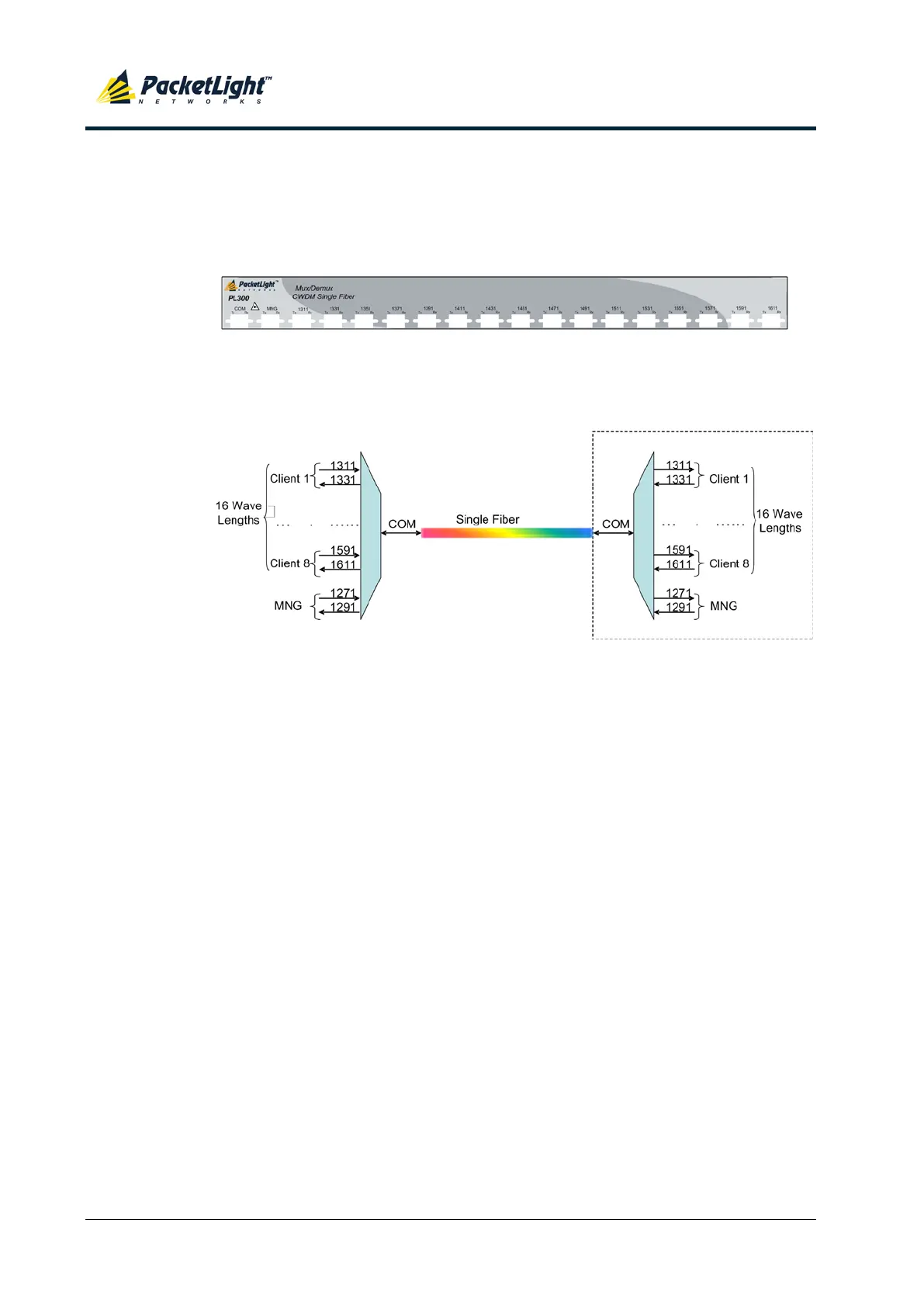

9. PL-300 CWDM-1M-16W-1C-1F:
 Single passive optical MUX/DEMUX module with 16 wavelengths
 The MUX/DEMUX module has an additional channel for the management
OSC channel
 One COM port with single fiber
Figure 10: PL-300 CWDM-1M-16W-1C-1F
10. PL-300 CWDM-2M-8W-2C-1F:
 Two passive optical MUX/DEMUX modules with eight wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
