APPENDIX B:PL-300 APPLICATION EXAMPLES
PACKETLIGHT NETWORKS PL-300 3.2 INSTALLATION AND CONFIGURATION MANUAL
CONFIDENTIAL AND PROPRIETARY INFORMATION. ALL RIGHTS RESERVED. PAGE 50
B.1.6 Example 6: Using PL-300 DCM2-120K
In this example, there are three sites: A, B, and C, with 100 km distance between
them.
In Site A there is a single PL-400E unit with aggregated eight DWDM channels.
In Site B there are two units: a single PL-1000IL unit with two EDFA modules and
a single PL-300 DCM2-120K unit.
In Site C there is a single PL-400E unit with aggregated eight DWDM channels.
Inputs to the two EDFA modules pass through the PL-300 DCM2-120K unit for
dispersion compensation.

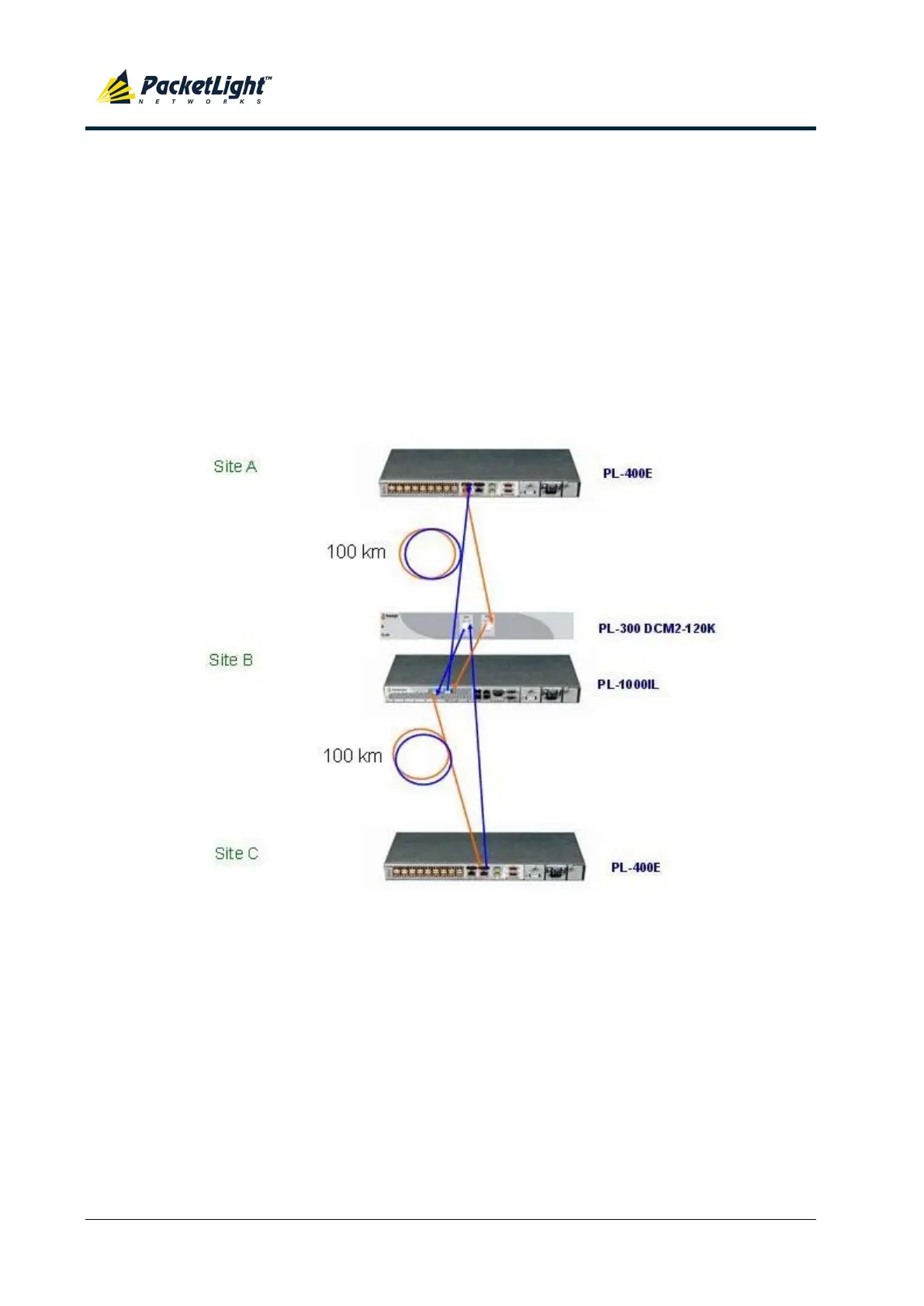

Figure 37: Using PL-300 DCM2-120K (Example)
