 One COM port with dual fiber

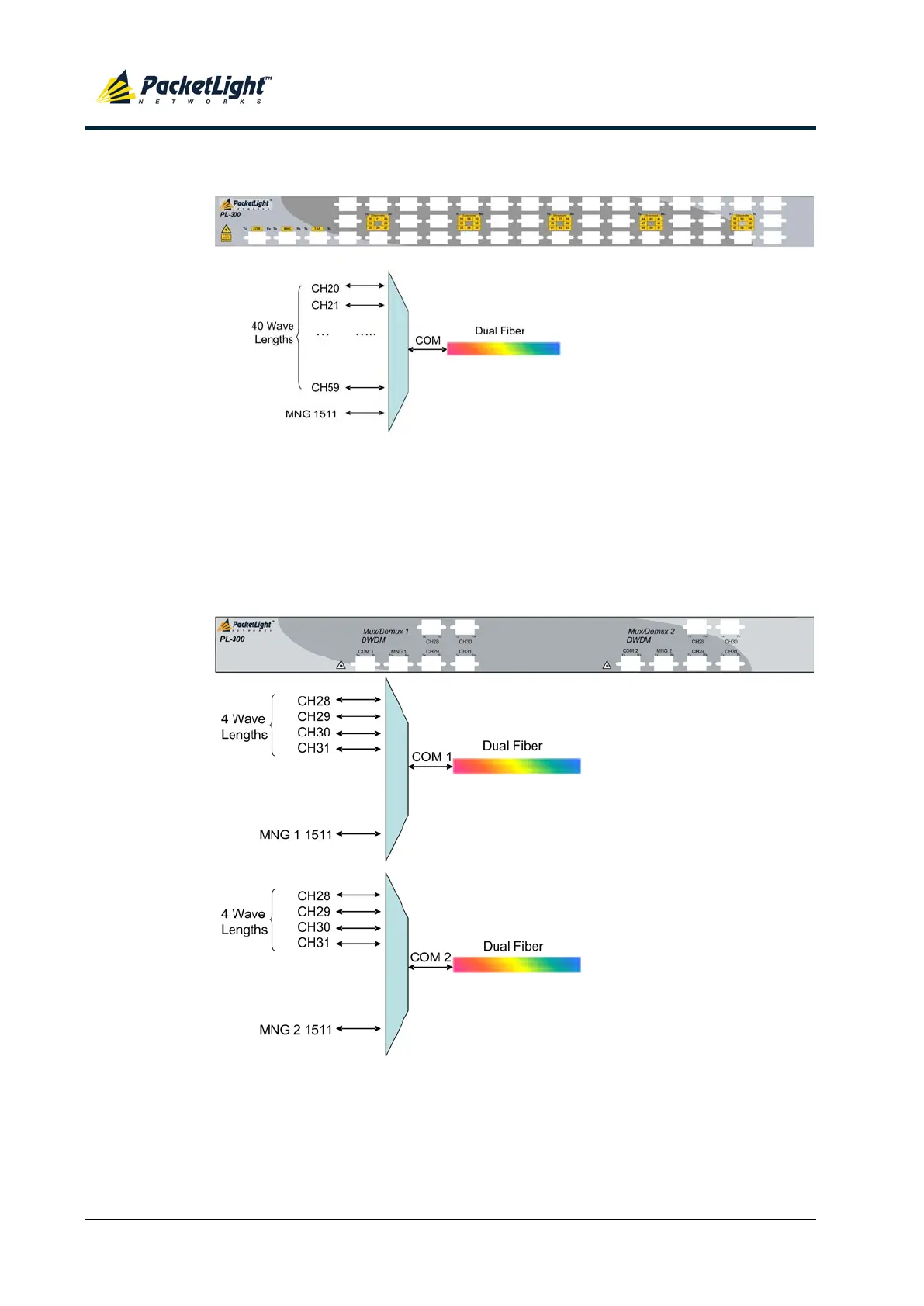

Figure 18: PL-300 DWDM-1M-40W-1C-2F
5. PL-300 DWDM-2M-4W-2C-2F:
 Two passive optical MUX/DEMUX modules with four wavelengths each
 Each MUX/DEMUX module has an additional channel for the management
OSC channel
 Two COM ports with dual fiber
Figure 19: PL-300 DWDM-2M-4W-2C-2F
6. PL-300 DWDM-2M-8W-2C-2F:
 Two passive optical MUX/DEMUX modules with eight wavelengths each
