Ethernet and 1-channel RS232C Combination Type (Product No.: AFPX-COM5)
This communication cassette is a 1-channel unit with an Ethernet interface and an isolated three-wire
RS232C port. Ethernet performs communication at 100 Mbps or 10 Mpbs, but communication between
AFPX-COM5 and FP-X is performed at up to 115200 bps according to the system register setting of FP-
X.

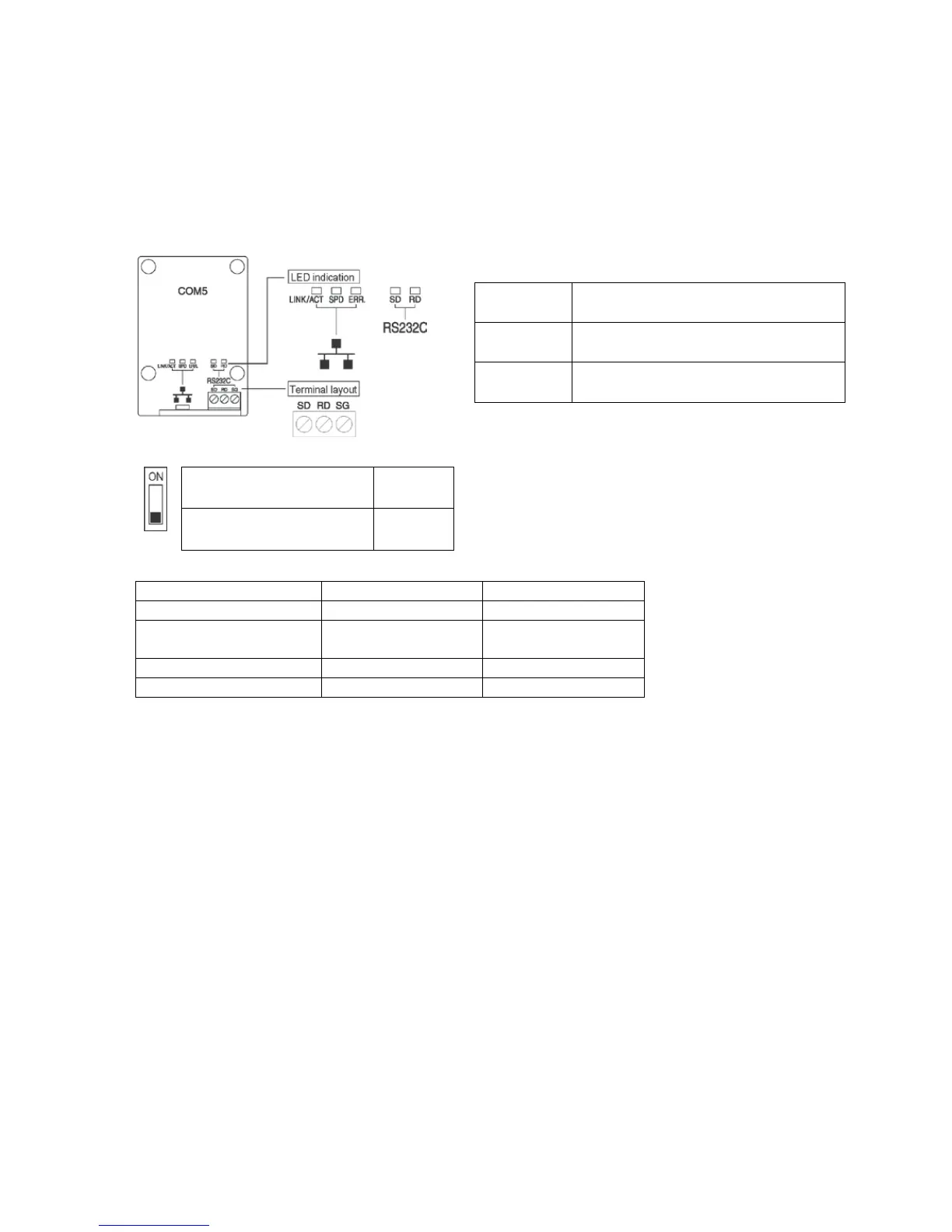

LED indication / Terminal layout
LEDs for Ethernet
LINK/ACT
On: Connection establishment
Flashing: During communication
SPD
On: 100 Mbps
Off: 10 Mbps
ERR
On: Error occurred
Flashing: Initialization switch ON
Cassette backside switch
Initialization of
communication setting
ON
It is used to restore the setting to the factory default
in such a case that an error occurred in
communication. The setting is initialized by turning
on electricity with the switch being on. After
initialization, turn off the power supply of the main
unit, and then turn the switch off.
Normal communication
OFF
(Default)
1:1 communication
1:N communication
A maximum of 3
connections are available
with the Ethernet
communication in the
computer link mode.
Computer link
Available
Available
General-purpose serial
communication
Available Not available
PC(PLC) link
Note2)
Note2)
MODBUS RTU
Available
Not available
Note1) The RS232C of the COM2 port is not available when using the USB port of the FP-X.
Note2) The PC (PLC) link function of the FP-X is available via Ethernet.
