5.4 How to Install Add-on Cassette
The add-on cassette is fitted with the control unit using the provided screws.
Note:
The add-on cassette must be secured with the control unit using the screws in the actual use for
preventing the affect of vibrations.
The backup battery (option) should be before installing the add-on cassette.
The installation must be carried out when the power supply is off. If the power supply is on, it may cause
faults.
Recommended screw
Size and other conditions
Tapping screw
Material: SW pan head (+) P-tight 2.6-16
galvanization, trivalent chromate (black)
2 pcs/1 cassette

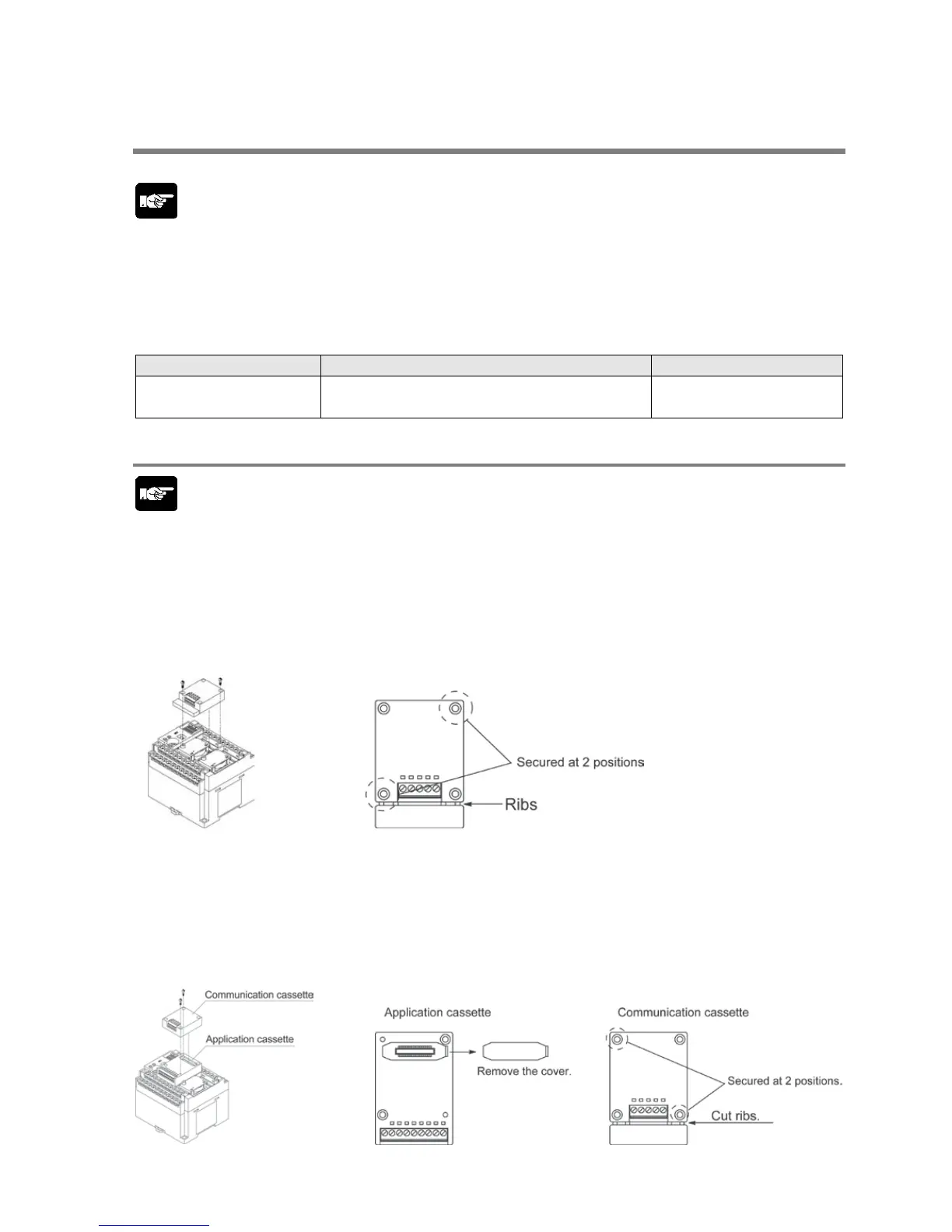

5.4.1 Installing Communication Cassette
Note:
The communication cassette can be installed only in the cassette mounting part 1 of the control
unit.
Installation on the control unit
Connect the connector on the back of the communication cassette and the connector of the cassette
mounting part of the control unit, and secure the two positions, bottom left and top right, with the screws.
It is no problem if the ribs remain. (AFPX-COM5 has no rib.)
The screw’s tightening torque should be 0.3 to 0.5 N･m. Screw securely.
Installation on the application cassette
Remove the cover of the application cassette that was secured previously.
Connect the connector on the back of the communication cassette and the connector at the front of the
application cassette, and secure the two positions, top left and bottom right of the communication
cassette which the ribs were cut, with the screws. (AFPX-COM5 has no rib. Install it after the wiring of
the application cassette.)
The screw’s tightening torque should be 0.3 to 0.5 N･m. Screw securely.
