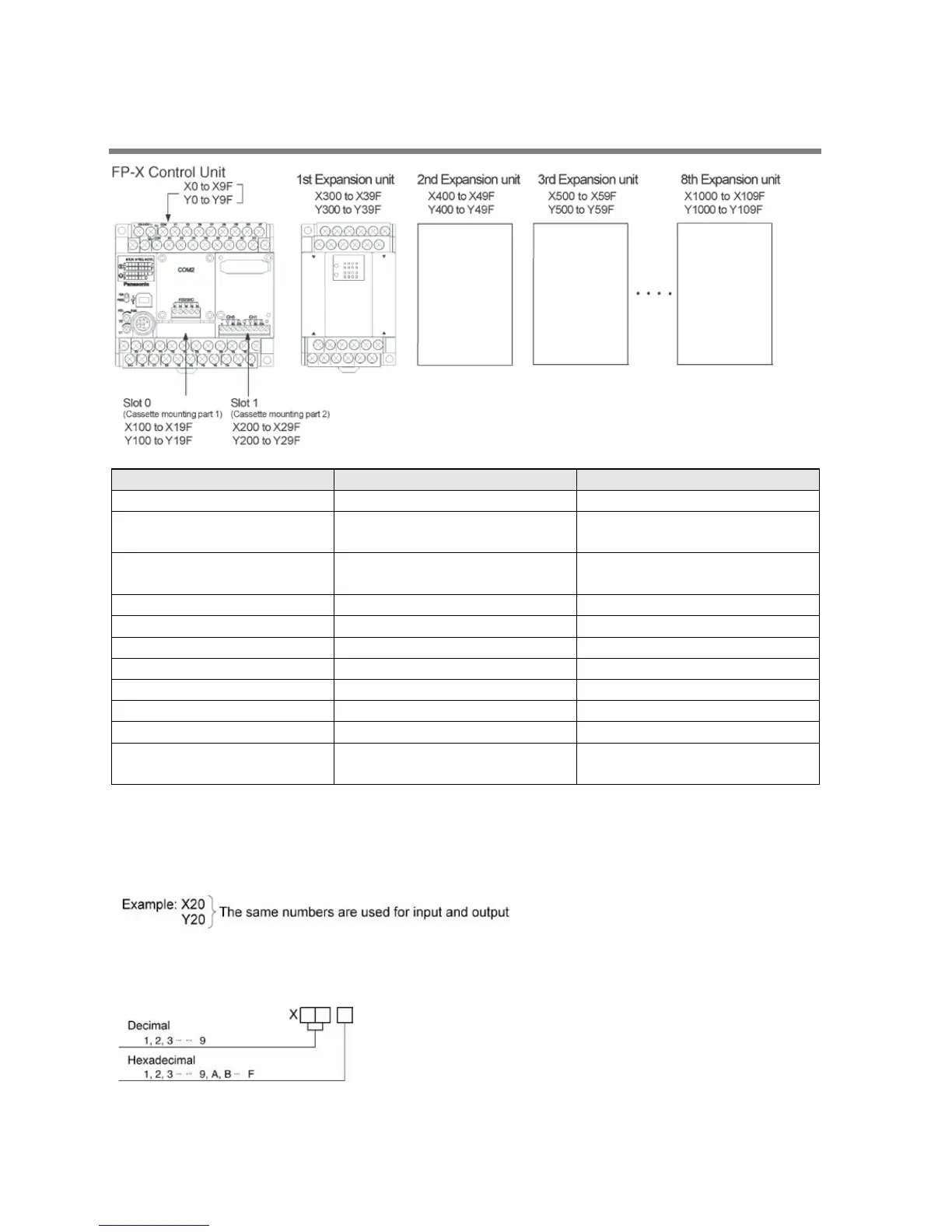

4.1 I/O Allocation
Input
Output
Control unit
X0 to X9F (WX0 to WX9)
Y0 to Y9F (WY0 to WY9)
Cassette mounting part 1
(Slot 0)
X100 to X19F (WX10 to WX19) Y100 to Y19F (WY10 to WY19)
Cassette mounting part 2
(Slot 1)
X200 to X29F (WX20 to WX29) Y200 to Y29F (WY20 to WY29)
Expansion 1st unit
X300 to X39F (WX30 to WX39) Y300 to Y39F (WY30 to WY39)
Expansion 2nd unit
X400 to X49F (WX40 to WX49)
Y400 to Y49F (WY40 to WY49)
Expansion 3rd unit
X500 to X59F (WX50 to WX59) Y500 to Y59F (WY50 to WY59)
Expansion 4th unit
X600 to X69F (WX60 to WX69)
Y600 to Y69F (WY60 to WY69)
Expansion 5th unit
X700 to X79F (WX70 to WX79) Y700 to Y79F (WY70 to WY79)
Expansion 6th unit
X800 to X89F (WX80 to WX89)
Y800 to Y89F (WY80 to WY89)
Expansion 7th unit
X900 to X99F (WX90 to WX99) Y900 to Y99F (WY90 to WY99)
Expansion 8th unit
X1000 to X109F
(WX100 to WX109)
Y1000 to Y109F
(WY100 to WY109)
Note) The ranges of the I/O numbers which are actually used differ depending on the cassettes and units.
Regarding I/O number
• Specifying X and Y numbers
On the FP-X and the FP0, the same numbers are used for input and output.
• Expression of numbers for input/output relays
Input relay “X” and output relay “Y” are expressed as a combination of decimal and hexadecimal
numbers as shown below.
• Slot No.
Slot No. is the number indicating the installing position of the cassette which is used to generate
programs by the add-on cassette.
