4.4 Allocation of FP0 Expansion Unit
4.4.1 I/O Allocation

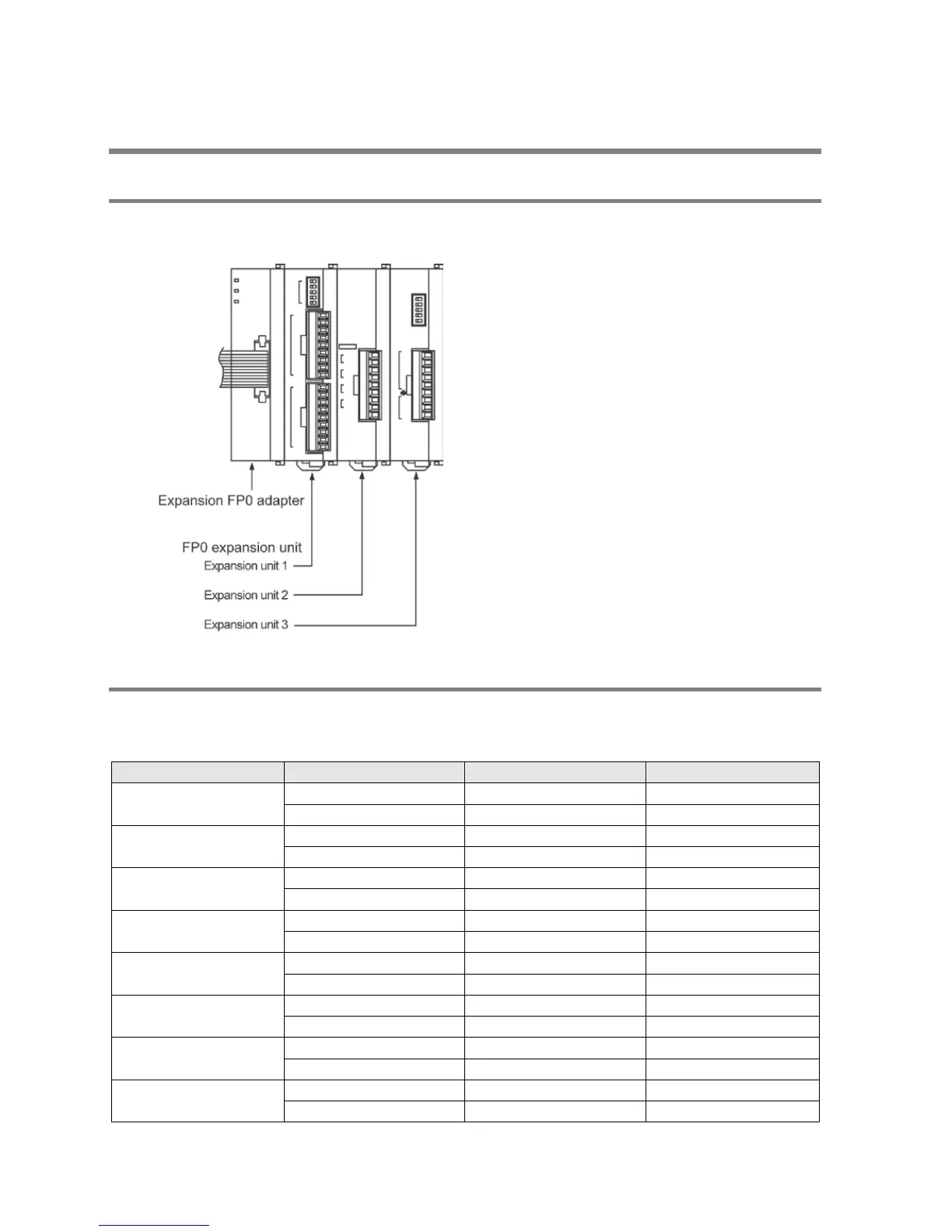

The FP0 expansion unit is installed on the right side of the FP0 expansion adapter.
The I/O numbers are allocated from the unit nearest to the expansion FP0 adapter in ascending order.
4.4.2 Number of Expansion Units and I/O Allocation
Only one expansion FP0 adapter can be connected at the last position of the FP-X expansion bus.
The I/O allocation varies depending on the installation location of the expansion FP0 adapter
Expansion location
Expansion unit 1
Expansion unit 2
Expansion unit 3
Expansion 1st unit
X300 to X31F
X320 to X33F
X340 to X35F
Y300 to Y31F
Y320 to Y33F
Y340 to Y35F
Expansion 2nd unit
X400 to X41F
X420 to X43F
X440 to X45F
Y400 to Y41F
Y420 to Y43F
Y440 to Y45F
Expansion 3rd unit
X500 to X51F
X520 to X53F
X540 to X55F
Y500 to Y51F
Y520 to Y53F
Y540 to Y55F
Expansion 4th unit
X600 to X61F X620 to X63F X640 to X65F
Y600 to Y61F
Y620 to Y63F
X640 to X65F
Expansion 5th unit
X700 to X71F
X720 to X73F
X740 to X75F
Y700 to Y71F Y720 to Y73F Y740 to Y75F
Expansion 6th unit
X800 to X81F
X820 to X83F
X840 to X85F
Y800 to Y81F Y820 to Y83F Y840 to Y85F
Expansion 7th unit
X900 to X91F
X920 to X93F
X940 to X95F
Y900 to Y91F
Y920 to Y93F
Y940 to Y95F
Expansion 8th unit
X1000 to X101F
X1020 to X103F
X1040 to X105F
Y1000 to Y101F
Y1020 to Y103F
Y1040 to Y105F
Note) The ranges of the I/O numbers which are actually used differ depending on the units.
