Panasonic AFPX-C30T User Manual

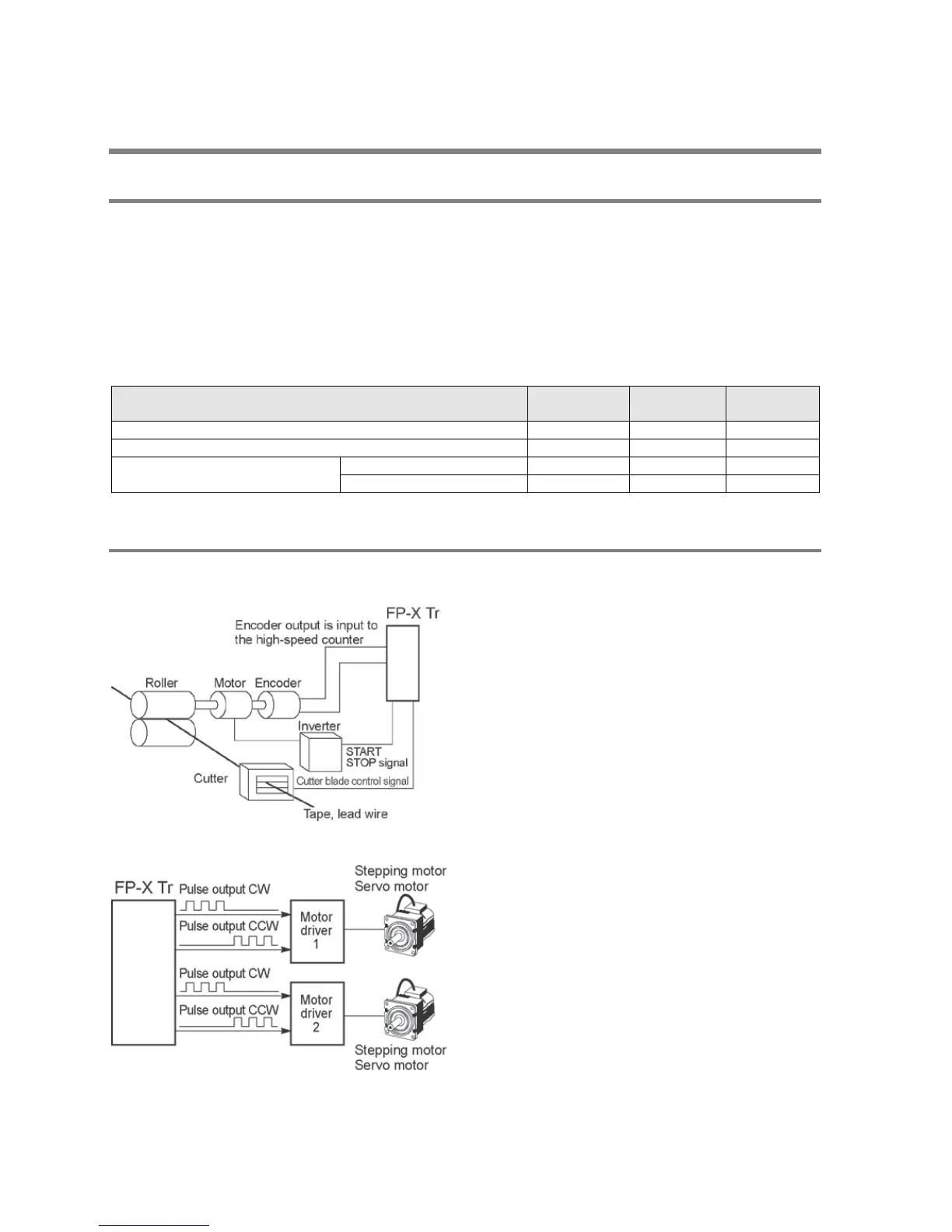

9.1 Overview of Each Functions
9.1.1 Usable Units and Cassettes
1. The pulse input can be counted using the inputs X0 to X7 of the main unit (Single-phase 8 channels,
2-phase 4 channels)
2. The pulse output can be carried out using the output of the main unit.
C14 Tr type: 3 ch
C30, C60 Tr type: 4 ch
(0 ch, 1ch: High-speed pulse 2 ch, 3ch: Medium-speed pulse)
3. The pulse I/O cassette (AFPX-PLS) cannot be used with the FP-X Tr type control unit.
Restrictions on the pulse I/O functions of each control unit
C14 Tr
type
C30 Tr
type
C60 Tr
type
Input of main unit X0 to X7
A
A
A
Output of main unit Y0 to Y7
A (Y0 to Y5)
A
A
Input and output of
Pulse I/O cassette (AFPX-PLS)
Cassette mounting part 1
N/A
N/A
N/A
Cassette mounting part 2
N/A
N/A
N/A
A: Available, N/A: Not available
9.1.2 Three Pulse I/O Functions
There are three pulse I/O functions built into the FP-X Tr type
High-speed counter function (Control unit)
The high-speed counter function counts
external inputs such as those from sensors or
encoders. When the count reaches the target
value, this function turns on/off the desired
output.
Pulse output function (Control unit)
Combined with a commercially available
motor driver, the function enables positioning
control. With the exclusive instruction, you
can perform trapezoidal control, home return,
and JOG operation.
