Panasonic AFPX-C30T - Input Specifications

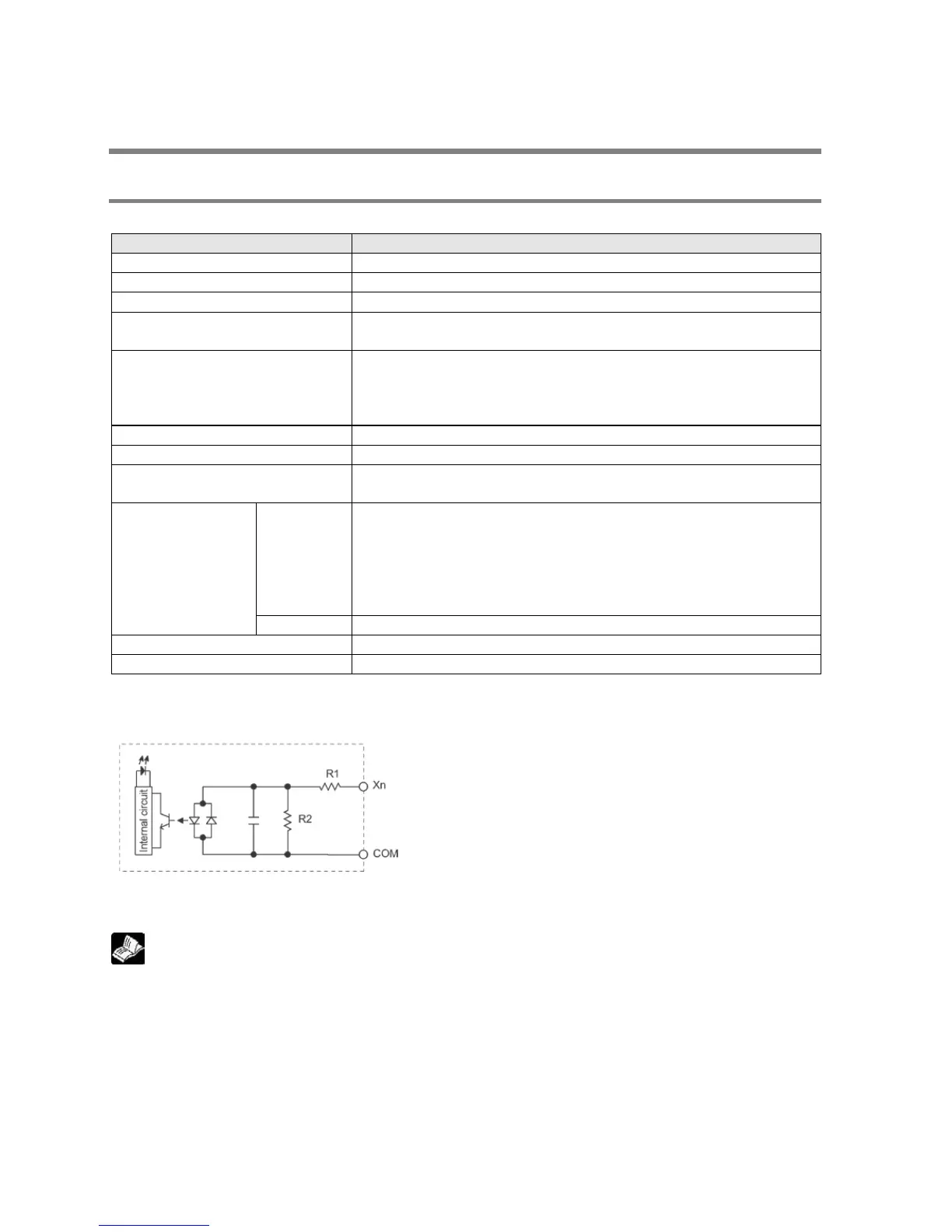

2.3 Input Specifications
2.3.1 Relay (Ry) Type
Input Specifications (For C14R/C30R/C60R control units)
Item
Description
Insulation method
Optical coupler
Rated input voltage
24V DC
Operating voltage range
21.6 to 26.4V DC
Rated input current
Approx. 4.7 mA (for control units X0 to X7)
Approx. 4.3 mA (from control unit X8 )
Input points per common
8 points/common (C14R)
16 points/common (C30R/C60R)
(Either the positive or negative of the input power supply can be
connected to common terminal.)
Min. on voltage/Min. on current
19.2 V DC/3 mA
Max. off voltage/Max. off current
2.4V DC/1 mA
Input impedance
Approx. 5.1 kΩ (for control units X0 to X7)
Approx. 5.6 k
Ω
(from control unit X8 )
Response time
off→on
For control units X0 to X7:
0.6 ms or less: normal input
50 µs or less: high-speed counter, pulse catch, interrupt
input settings
Note)
From control unit X8 :
0.6 ms or less
on
→
off
Same as above
Operating mode indicator
LED display
EN61131-2 Applicable type
TYPE3 (however, according to the above specifications)
Note) this specification is applied when the rated input voltage is 24 V DC and the temperature is 25 °C.
Circuit diagram
For X0 to X7: R1=5.1 kΩ R2=3 kΩ
From X8: R1=5.6 kΩ R2=1 kΩ
Limitations on number of simultaneous input on points
Reference: <2.5 Limitations on Number of Simultaneous Input/Output On Points>
