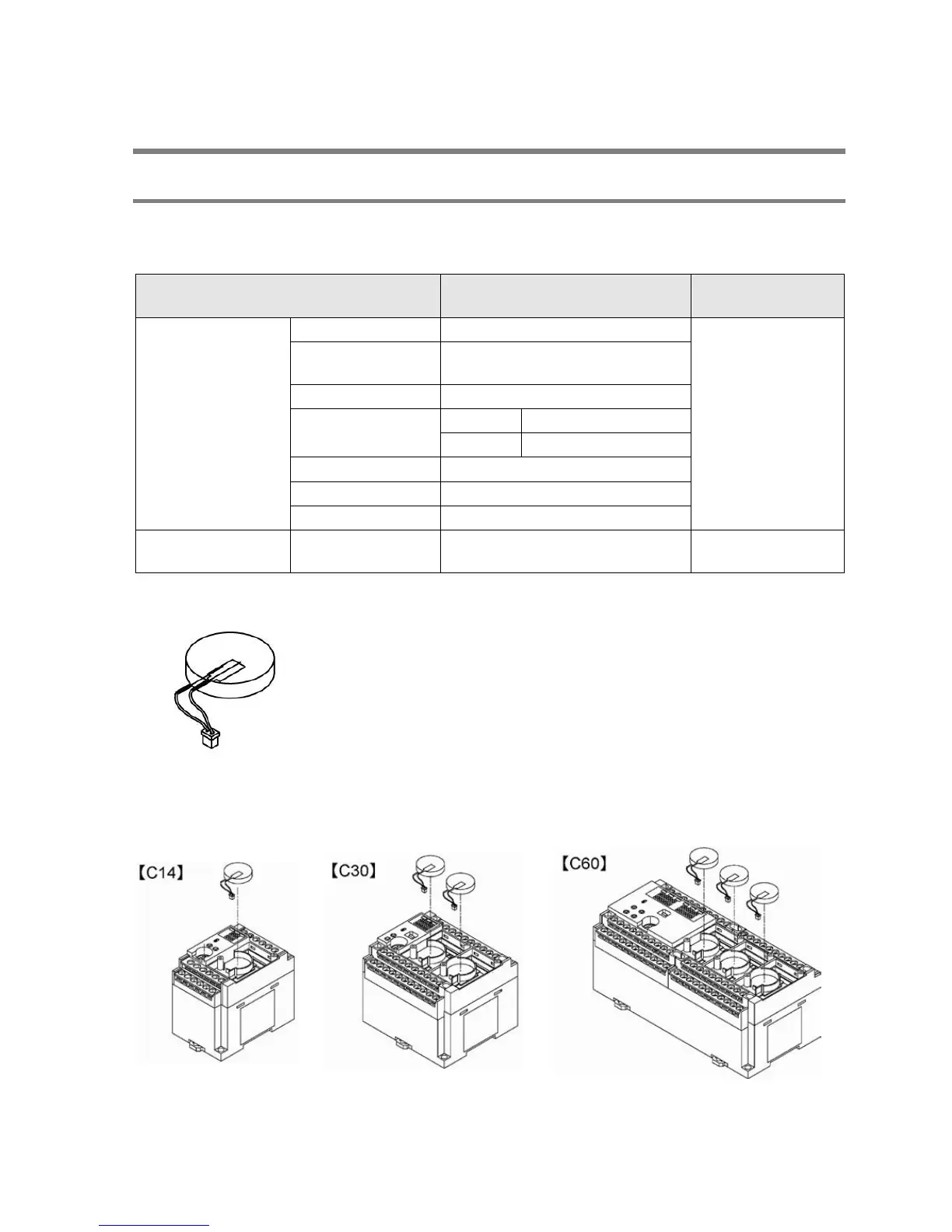

5.9 Handling of Backup Battery
5.9.1 What Backup Battery Does
Install an optional backup battery when the hold area is insufficient in the initial state or for using the
clock/calender function.
Areas backed up with the battery
Classification
Hold area when
battery is not installed
Hold area when
battery is installed
Operation memory
Timer and counter
C1008 to C1023
Hold areas or non-
hold areas can be
specified arbitrarily
by setting the
system registers
No.6 to No.13 using
a programming
tool. (All points can
be also held.)
Timer and counter
Elapsed value area
EV1008 to EV1023
Internal relay
R2480 to R255F
Data register
C14
DT12230 to DT12284
C30/C60
DT32710 to DT32764
Step ladder
None
Link relay
None
Link register
None
Special data
register
Clock/calender None All points
Type of backup battery (Sold separately)
Name: Battery
Product No.: AFPX-BATT
Installable number of batteries
As for FP-X, the installable number of batteries varies depending on the types of the control unit.
