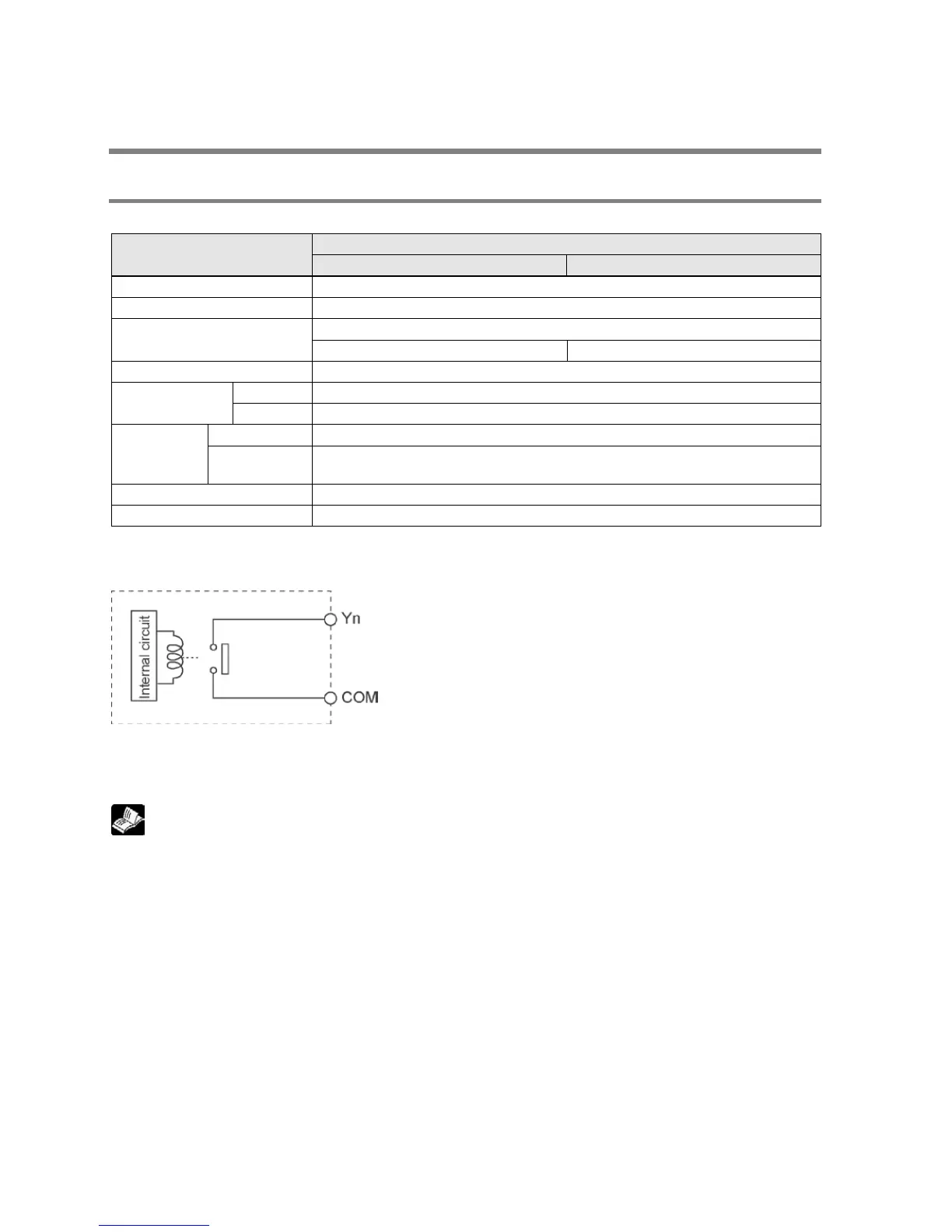

2.4 Output Specifications
2.4.1 Relay (Ry) Type
Relay output specifications (For C14R/C30R/C60R control units)
Item
Description
C14
C30/C60
Insulation method
Relay insulation
Output type 1a output (Relay cannot be replaced)
Rated control capacity
Note)
2 A 250 V AC, 2 A 30 V DC
(6 A or less/common) (8 A or less/common)
Output points per common
1 point/common, 2 points/common, 3 points/common, 4 points/common
Response time
off→on Approx. 10 ms
on
→
off
Approx. 8 ms
Lifetime
Mechanical
20 million times or more (Frequency of switching: 180 times/min.)
Electrical
100 thousand times or more (Frequency of switching at the rated control
capacity: 20 times/min.)
Surge absorber
None
Operating mode indicator
LED display
Note1) Resistance load
Circuit diagram
Limitations on number of simultaneous input on points
Reference: <2.5 Limitations on Number of Simultaneous Input/Output On Points>
