Panasonic AFPX-C30T - Wiring of Terminal Block

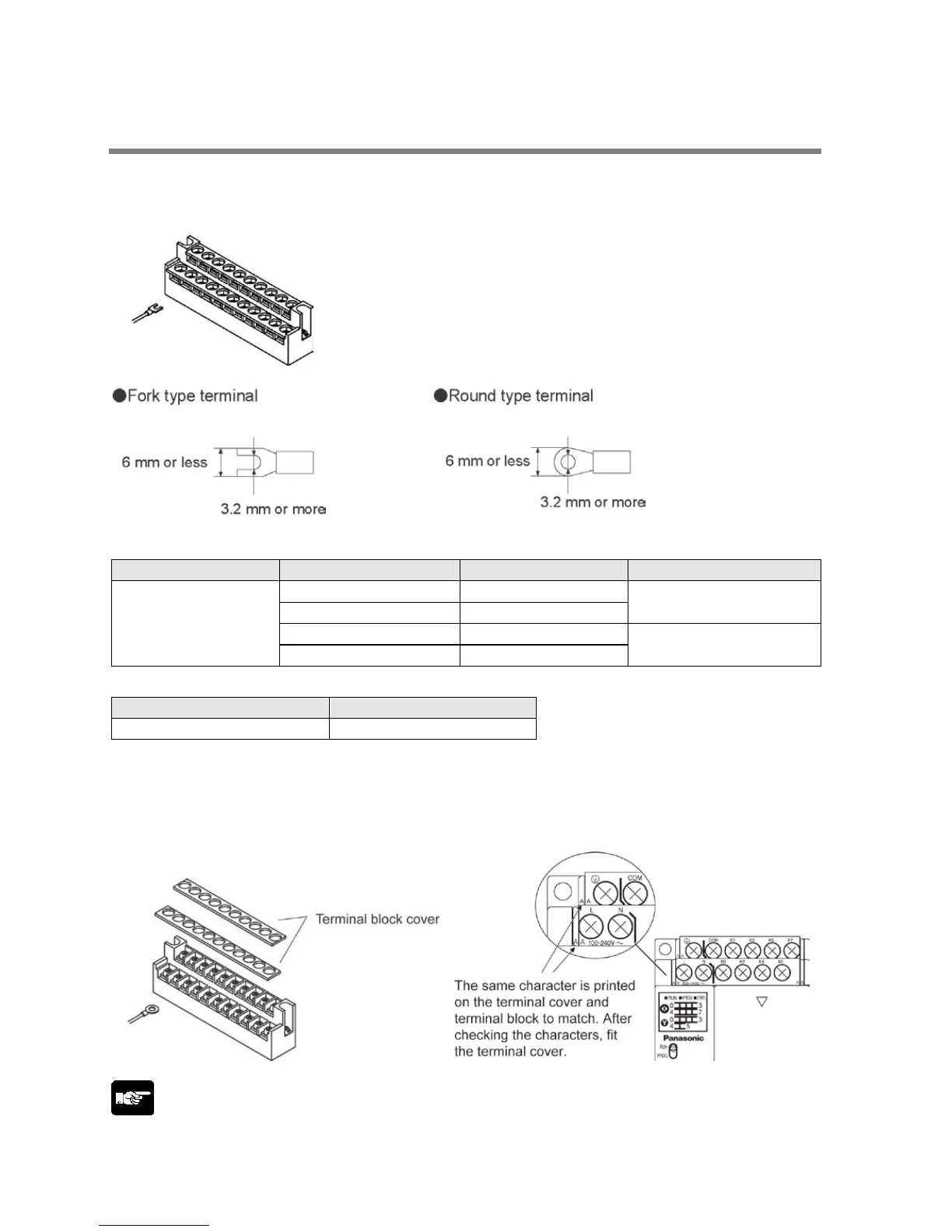

5.7 Wiring of Terminal Block
Supplied terminal block/Suitable wires
M3 terminal screws are used for the terminal. The following suitable solderless terminals are
recommended for the wiring to the terminals
Suitable solderless terminals
Manufacturer
Shape
Part No.
Suitable wires (mm
2
)
JST Mfg. Co., Ltd.
Round type 1.25-MS3
0.25 to 1.65
Fork type
1.25-B3A
Round type
2-MS3
1.04 to 2.63
Fork type
2-N3A
Suitable wires
Suitable wires
Tightening torque
AWG22 to 14 0.3 to 2.0 mm
2
The tightening torque should be 0.5 to 0.6 N
･m
Connection to the terminal block
When using the round type terminal, remove the terminal cover.
Note:
Install the terminal block cover as it was after wiring to prevent electric shock.
