8.3 Specifications

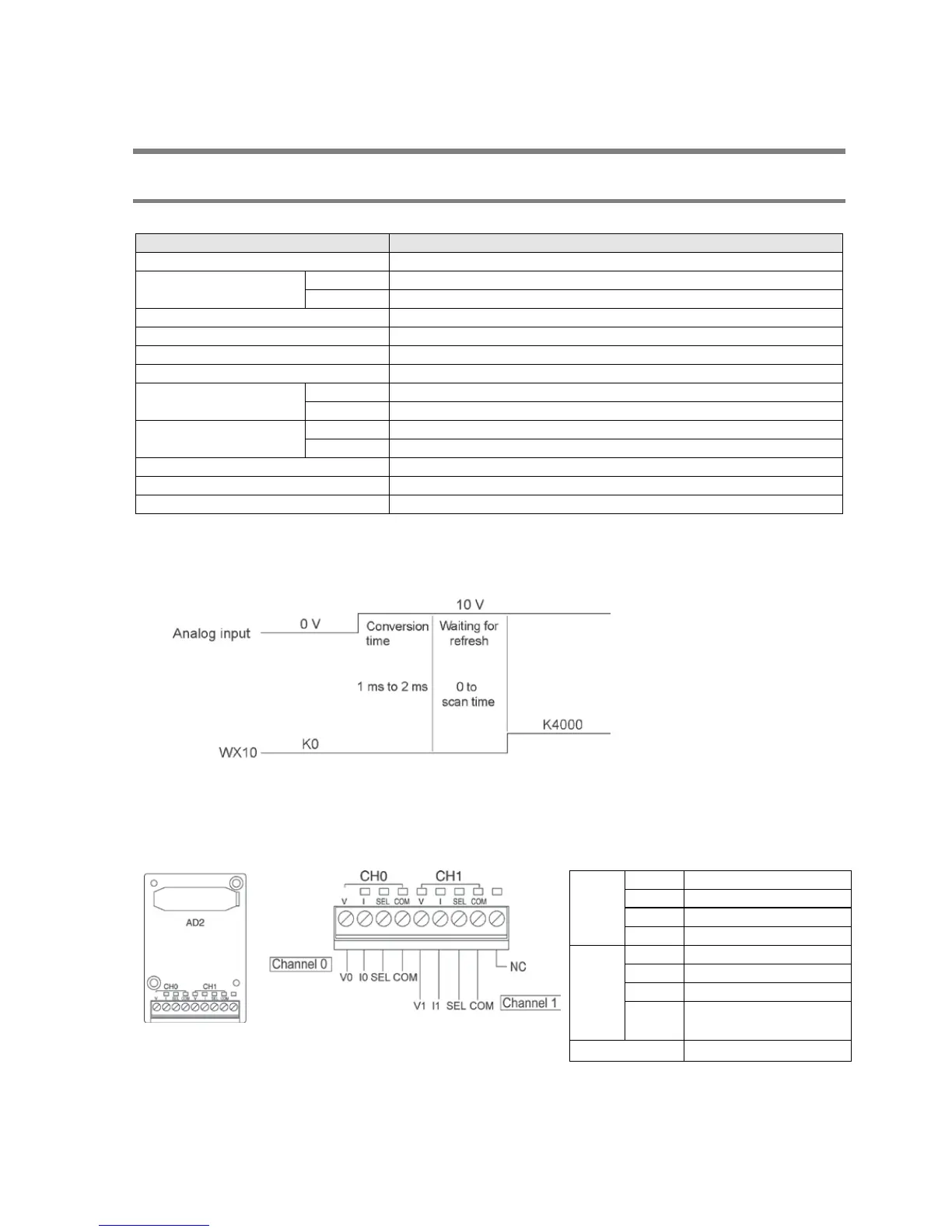

8.3.1 FP-X Analog Input Cassette
Product No.: AFPX-AD2
Item
Specifications
No. of input points
2 channels/cassette
Input range
Voltage
0 to 10 V
Current
0 to 20 mA
Digital conversion value
K0 to K4000
Note)
Resolution
1/4000 (12 bits)
Conversion speed
1 ms/channel
Total accuracy
±1% F.S. or less (0 to 55 °C)
Input impedance
Voltage
40 kΩ
Current
125 Ω
Absolute max. rating
Voltage
-0.3 to +15 V
Current
-2 to +30 mA
Input protection
Diode
Insulation
Non-isolated between analog part and internal digital circuit part
Occupation No. of I/O contacts
Input 32 points
Note1) When the analog input values exceed the upper and lower limits, the digital values maintain the
upper and lower limit values. As the resolution is 12 bits, the higher 4 bits of the input contact are
always 0.
Note2) Following time is required to reflect the analog data in the input of the control unit.
Note3) Averaging cannot be processed with the cassette. If averaging is necessary, use a ladder
program to execute averaging process.
Terminal layout
CH0
V
Voltage input
I
Current input
SEL
Voltage/current select
COM
Common
CH1
V
Voltage input
I
Current input
SEL
Voltage/current select
COM
Common
Note) There is no LED indication.
NC
Not used
