Panasonic AFPX-C30T - Page 244

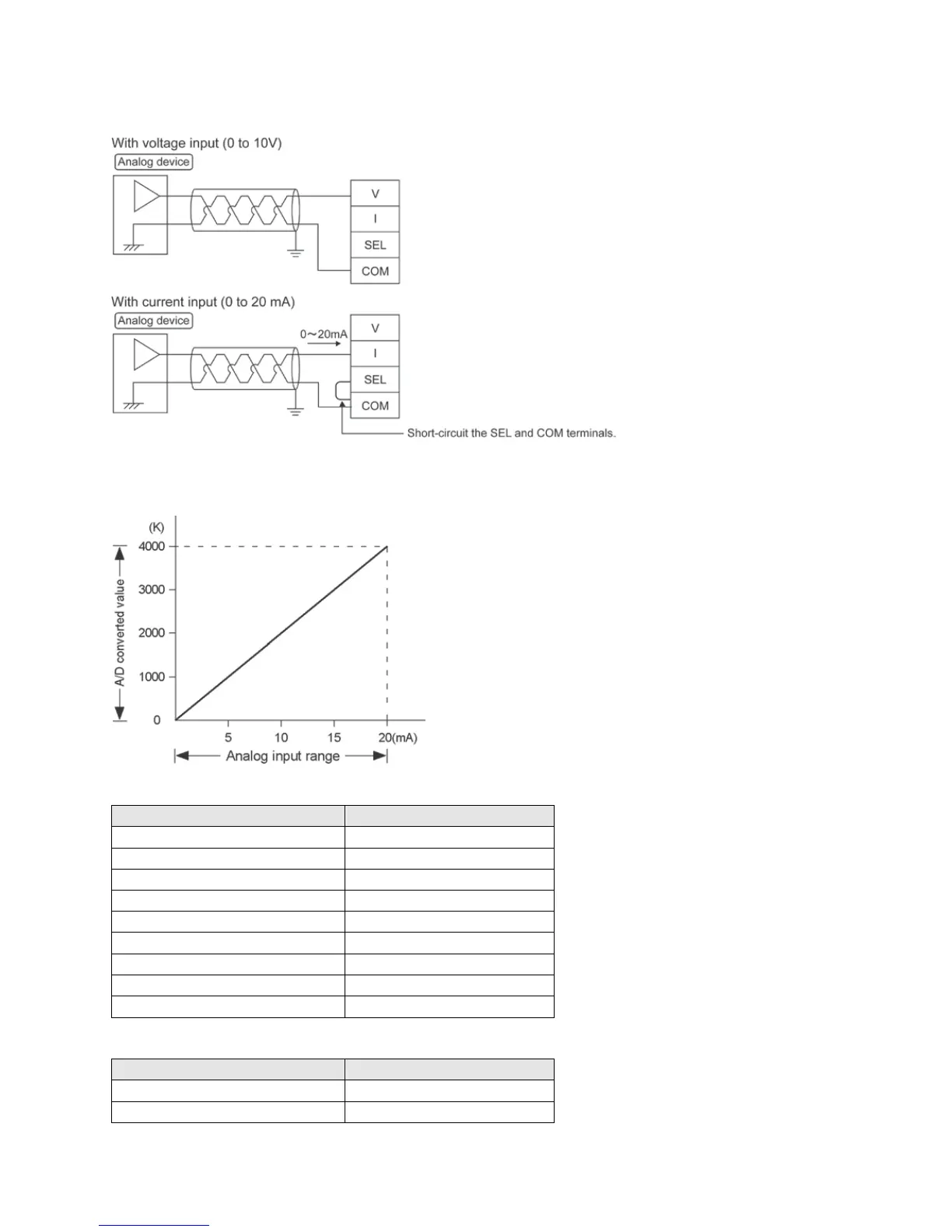

Connection method
DC input: 0 mA to 20 mA
Conversion characteristics graph
Table of A/D converted values
Input current (mA)
A/D converted value
0.0 0
2.5
500
5.0 1000
7.5
1500
10.0 2000
12.5
2500
15.0 3000
17.5
3500
20.0 4000
When exceeding the rated range
Input voltage (V)
Converted value
0 mA or less (Negative value)
0
20 mA or more 4000
